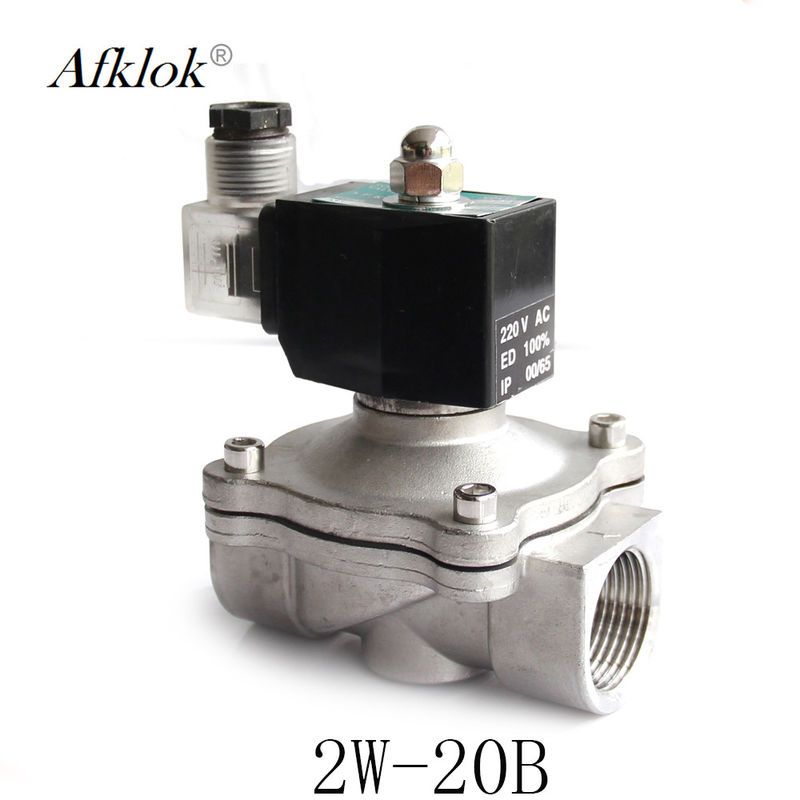

2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water

2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water

2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water
video
2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: 2W-20B
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 9 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Contact Now
Detailed Product Description
Material: Stainless Steel Orifice Size: 20 Mm
Medium: Water Oil Gas Working Pressure: (water, Air ): 0-10bar, (Oil): 0-7bar
Type: Normally Closed Seal: NBR VITON EPDM
High Light:

stainless steel solenoid valves for water

,

water control solenoid valve

2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water

1) Model: 2W-200-20B
2) Pipe size: 3/4 inch
3) Orifice size : 20 mm
4) Connection: G , NPT
5) Medium: Air, water, oil , gas
6.Working Pressure :
               (water, air )0~10kgf/cm²
               (Oil) : 0~7 kgf/cm²
7.Body Material : Stainless steel
8.Seal:
Below 80℃ fluid temperature use NBR,
below 120℃ use EPDM,
below 150℃ use VITON

Structure Parameters



Model NO.
2W-200-20
2W-250-25
2W-320-32
2W-400-40
2W-500-50
Pipe size
3/4'
1'
1 1/4‘’
1 1/2‘’
2‘’
Orifice size
20mm
25mm
32mm
40mm
50mm
CV value
7.6
12
24
29
48
Fluid
Air water oil,  the neutral gasliquid
Servise voltage
AC380V AC220V AC110V AC24V DC24V DV12V  ( allow ± 10%)
Operating
Type
Normally Closed
Body Material
viscosity
( Below )20CST
Working pressure
( water, air ) :0~10 kgf/cm²        ( oil ) : 0~7 kgf/m²
Material of seal
Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use VITON

Product Show
2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water 0
2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water 1
Packing & Delivery
2W-20B 220V AC Stainless Steel Electric Solenoid Valve for Water 2

Packaging
Size
17cm*17cm*17cm
Weight
Different size has different weight
Packaging Details
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
