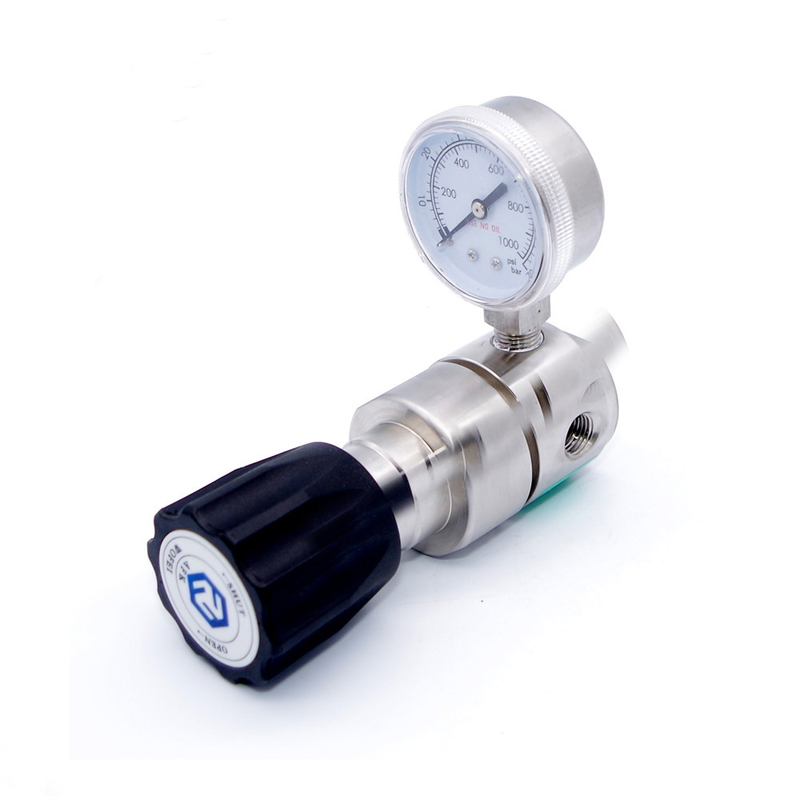

RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator

RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator

  • RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
  • RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
  • RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
  • RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
  • RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
RW71 Stainless Steel Back Pressure Valve , Petrochemical Backflow Pressure Regulator
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: AR
Model Number: BS-HH
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Each part is in PP bag first, then put in a small box, outside is in carton. Plastic pallet is availble upon request.
Supply Ability: 2000 Set/Sets per Month
Contact Now
Detailed Product Description
Application: General, High Purity Gas, Standard Gas, Corrosive Gas, Liquid Etc Material: Stainless Steel
Temperature Of Media: Normal Temperature Pressure: High Pressure
Power: Manual Media: Gas
Port Size: Optional Structure: Pressure Reducing
Max.adjust Pressure: 300PSI Adjust Pressure: 0-25, 0-50, 0-100, 0-250psi
Safety Test Pressure: 1.5times Max. Inlet Pressure Cv: 0.08
Body Material: Ss316L, Brass Mount: Panel Mount Or Wall Mount
Warranty: 1 Year Standard Or Nonstandard: Standard
Port: Shenzhen
High Light:

back pressure control valve

,

pneumatic back pressure regulator



R71 Low Pressure Back Pressure valve.



1) Stainless Steel diaphragm, accuracy pressure control, applied to adjust upstream pressure.

2) Applicable to high purity gas, standard gas, corrosive gas, liquid and so on.







Operating Parameters
Max. adjust pressure
300PSI
adjustment pressure
0-25, 0-50, 0-100, 0-250psi
Safety test pressure
1.5times max. inlet pressure
Applicable temperature
-40℉to 466 ℉, -40℃ to 230℃
Leakage rate
2X10-8 atm cc/sec/he
Cv value
0.08




Materials
Body
ss316L, brass
Bonnet
ss316L, brass
Diaphragm
ss316L, C276
Seat
PCTFE, PTFE, Vespel
Spring
ss316L
Stem
ss316





Ordering Information

Series
Body material
Ports
Adjustment pressure
Inlet connection
Outlet connection
Options
RW71
L
A
G
00
00
P

L:316L
A
F:0-300psi
00:1/4"NPT F
00:1/4"NPT F
P:panel mount

B:brass
B
G:0-250psi
01: 1/4"NPT M
01: 1/4"NPT M




I:0-100psi
02:3/8"NPT F
02:3/8"NPT F




K:0-50psi
10:1/8"OD
10:1/8"OD




L:0-25psi
11:1/4"OD
11:1/4"OD





12:3/8"OD
12:3/8"OD

For inle and outlet connection, it can be customized as your request

Pls inform us order code e.g.:R71-L-A-F-00-00, or pls inform us following information:

1.What type of fluid is used?

2. What is inlet pressure?

3. Do you need gauge or not?

4.What type of inlet and outlet connection?

5.What materials do you need?
