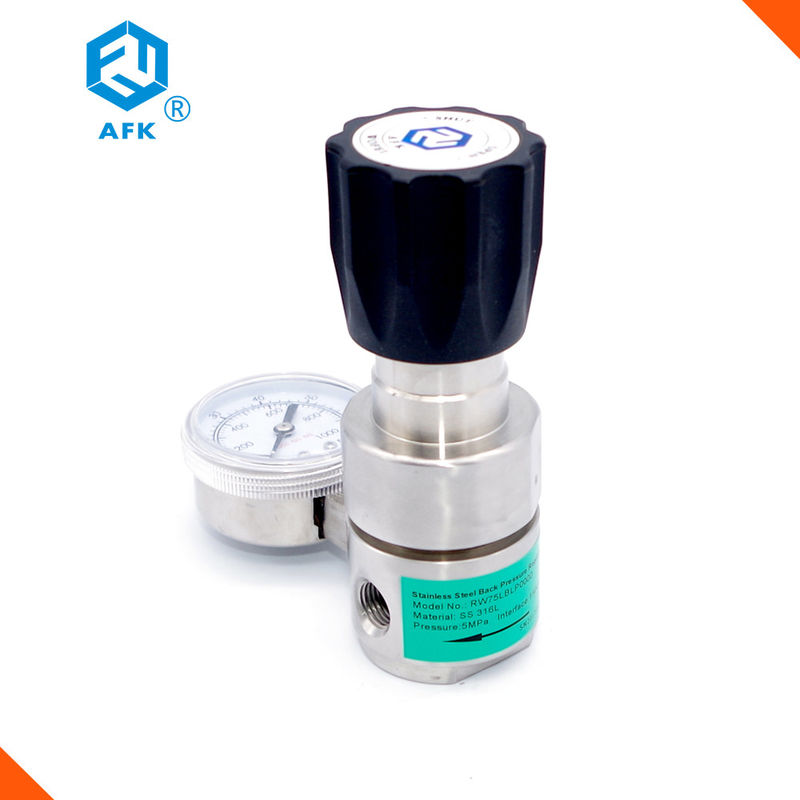

Stainless steel High pressure argon gas back pressure regulator

Stainless steel High pressure argon gas back pressure regulator

    • Stainless steel High pressure argon gas back pressure regulator
    • Stainless steel High pressure argon gas back pressure regulator
    • Stainless steel High pressure argon gas back pressure regulator
  • Stainless steel High pressure argon gas back pressure regulator

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: AFK
    Certification: CE
    Model Number: R72

    Payment & Shipping Terms:

    Minimum Order Quantity: >=1 Sets
    Price: Negotiable
    Packaging Details: Export packing
    Supply Ability: 10000 Set/Sets per Week
    Contact Now
    Detailed Product Description
    Structure: Piston-sensed Configuraton Maximum Inlet Pressure: 6000 Psig
    Proof Pressure: 1.5 Times Of Maximum Rated Presure Working Temperature: -40° F ~+165° F(-40°C+74°C)
    Leakage Rate: 2*10-8 Atm Cc/sec He Cv: 0.15
    Body Material: 316L Seat: Vespel
    Port: SHENZHEN

    Main Features


    Name: RW72  Back pressure regulator
    Brand: AFK
    Original: China
    RW72 Series Back pressure Regulator is Piston-sensed configuration, applicable to high pressure gas or liquid applications.



    Material

    *Body: 316L

    *Seat: Vespel

    *Piston: 316L

    *O-ring: Viton



    Typical applications



    *Chromatography

    *Laboratories

    *Petrochemical industry

    *Power plant equipments

    Features

    * Piston-sensed Configuration

    * Maximum inlet pressure: 6000psi

    * Proof pressure: 1.5 times maximum inlet pressure

    * Temperature Range: -40℉ to 160℉ (-40℃ to 74℃)
    * Leak Rate: 2 X 10-8 atm. cc/sec He
    * CV: 0.15
    Detailed Images
    Stainless steel High pressure argon gas back pressure regulator
    Stainless steel High pressure argon gas back pressure regulator
    ORDERING INFORMATION
    SERIES
    BODY MATERIAL
    BODY PORTS
    INLET PRESSURE
    GAUGES
    INLET CONNECTION
    OUTLET CONNECTION
    RW72
    L
    A
    D
    G
    02
    02

    L: 316L
    B: brass
    A
    B
    L: 0-500Psi
    K: 0-800Psi
    I: 10-1500Psi
    H:15-2500Psi
    G: 25-4000Psi
    Q: 50-6000Psi

    W: None
    P: psi/bar
    G: Mpa
    01:1/4"NPT(F)
    02:3/8"NPT(F)
    04:1/2"NPT(F)
    05:1/2"NPT(M)
    12:3/8"LOK
    13:1/2"LOK
    01:1/4"NPT(F)
    02:3/8"NPT(F)
    04:1/2"NPT(F)
    05:1/2"NPT(M)
    12:3/8"LOK
    13:1/2"LOK
