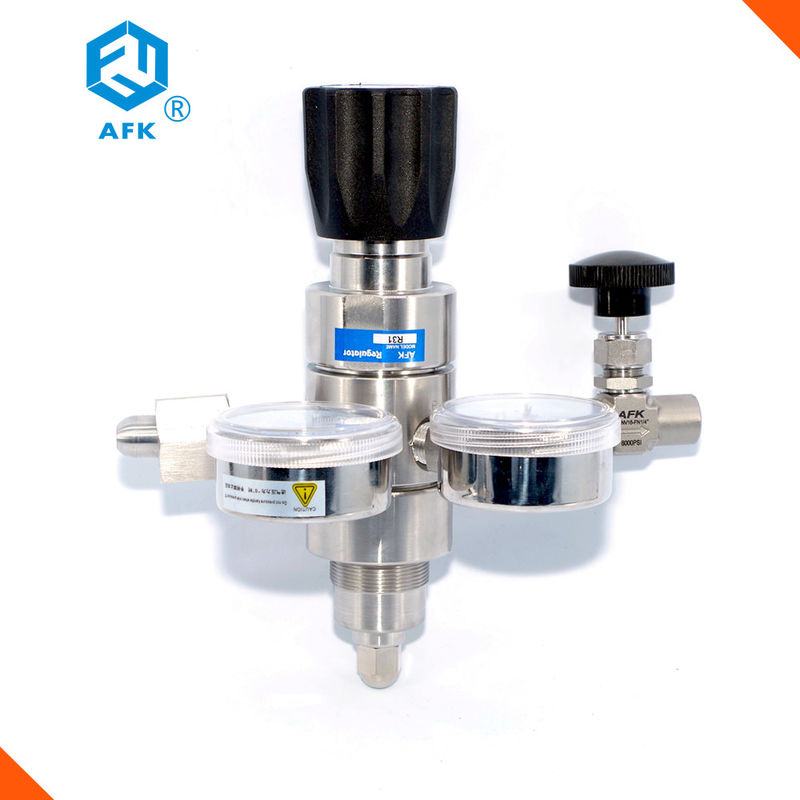

Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges

Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges

    • Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges
    • Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges
    • Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges
  • Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: AFK
    Model Number: R31

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 - 49 Pieces
    Price: Negotiable
    Packaging Details: white box + export carton
    Supply Ability: 3000 Piece/Pieces per Day
    Contact Now
    Detailed Product Description
    Material: 316L Screw Thread: Requirement Thread
    Input Pressure: 500 3000psi Type: Two-stage
    Suitable Gas: Oxygen/lpg/air/propane/Acetylene/Argon/nitrogen Application: According To Requirements Of Clients
    Color: Silvery White Outlet Pressure Range: 0~250psi
    Warranty: 1 Year Weight: 1.4 Kg

     two stage 316L industrial gas pressure regulator for lp gas butane propane with gauges





    R31 Serie stainless steel pressure reducers, double-stage diaphragm pressure reducing construction, stable output pressure, applied to high pure gas, standard gas, corrosive gas and so on



    Design Features:



    l Five holes on the body

    l two-stage decompression structure

    l Metal-to-metal diaphragm seal

    l Body thread:  1/4” NPT(F)

    l Easy to clean inside

    l Filter  inside

    l Panel mounting and wall mounting available

    l Optional outlet: needle valve, diaphragm valve



    Specification:



    l Maximum inlet pressure: 3000, 500psig

    l Output pressure:0~25, 0~50, 0~100, 0~250psig

    l Safe testing pressure: 1.5 times maximum inlet pressure

    l Working temperature: -40℉~+165℉(-40℃~+74℃)

    l Leakage rate: 2×10-8 atm.cc/sec

    l CV  value=0.06



    Typical Application:



    l Laboratory

    l Gas laser

    l Gas bus-bar

    l Petrochemical industry

    l Testing equipment



    Material:



    l Body: 316L, Brass

    l Bonnet: 316L, Brass

    l Diaphragm: 316L

    l Strainer: 316L(10μm)

    l Seat: PCTFE, PTFE, Vespel

    l Spring: 316L

    l Stem: 316L





    Our services:



    1.R&Q (Design according to client's requirements )

    2.Professional mold manufacturer .Sample order & small quantity order is ok.

     3.Competitive price with high quality

    4.We will keep online every work day .

    5.We will reply your email and fox within 24 hours .

    6.You may call and make touch with us anytime , if you have question on our products .



    packing details:



    1.  Inner packing: opp bag, then carton box for each product

    2. Outer packing: export standard carton, Foam outside protecting the goods against damage
    3. Usually we ship your order by sea or by air...
    4. We do our best to ship your order within 1 week after receiving your payment
    5. We'll tell you the tracking number once your order has been sent
    6. We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal

    Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges



    Ordering Information:
     Two Stage Industrial Gas Pressure Regulator , Safety Relief Valve With Gauges
    Item Body Material  Body Hole Inlet pressure  Outlet pressure  Gauge Inlet connection Outlet connection Optional
    R31 L:ss316L M D:3000PSI G:0-125psi G:Mpa 00:1/4NPT F 00:1/4"NPT F P:panel mount
      B:brass Q F:500PSI I:0-75psi P:psi/bar  01:1/4"NPT M 01:1/4"NPT M R:attached safety relief valve
            K:0-25psi W:no gauge 23:CGA330 10:1/8O.D. N:attached needle valve
            L:0-15psi   24:CGA350 11:1/4O.D. D:attached diaphragm valve
            Q:30"Hg Vac-30psig   27:CGA580 12:3/8O.D.
            S:30"hg Vac-60psig   28:CGA660 15:6mmO.D.
            T:30"hg Vac-100psi   30:CGA590 16:8mmO.D.
            U:30"Hg Vac-200psi   52:G5/8"-RH(F) 74:M8*1-RH(M)
                63:W21.8-14H(F)
                64:W21.8-14LH(F)


     Once you send the inquiry, pls send order code e.g.:R31-L-M-D-G-P-00-00-P.  Or pls send us following information so that we select asccurate quotation:

    1.Media (sevice as)? co2 or?
    2.atual inlet pressure and outlet pressure?
    3.Flow rate?
    4.Inlet connection and out connection?
    5.Material or ss316?
    6.Quantity?
