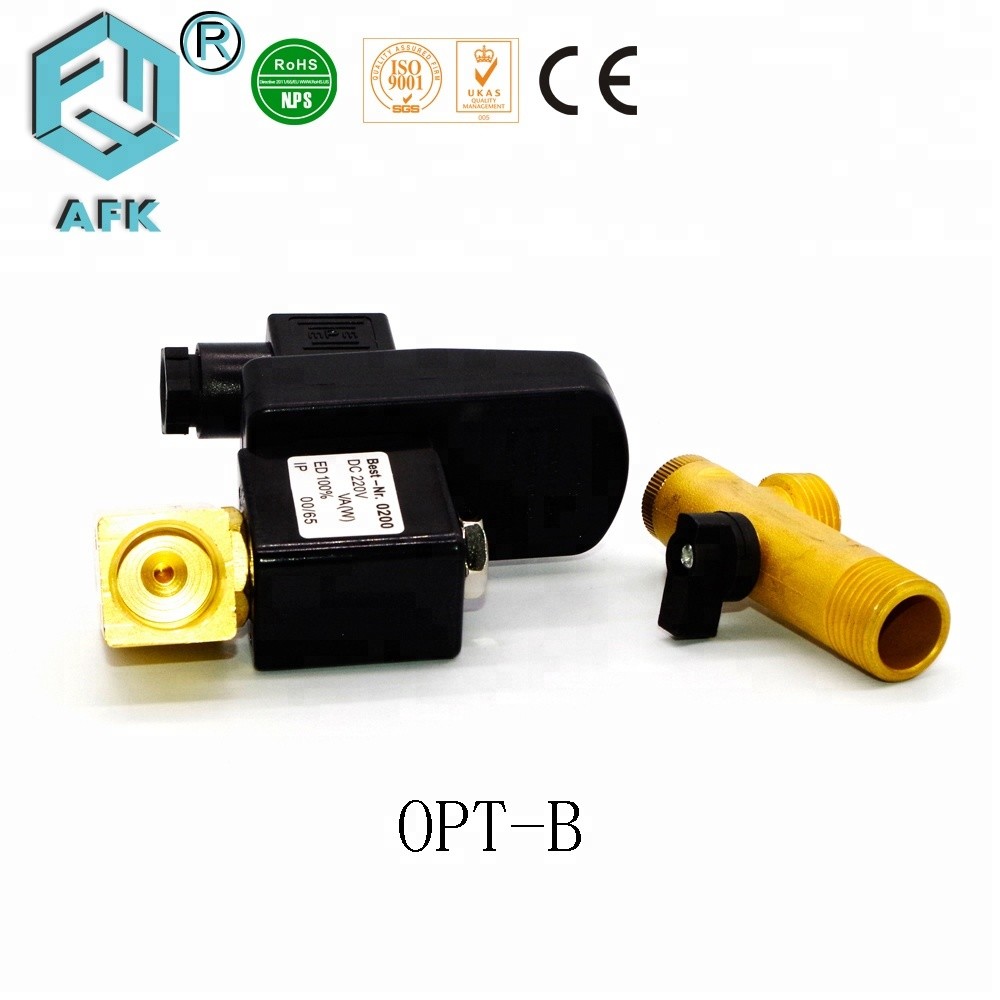

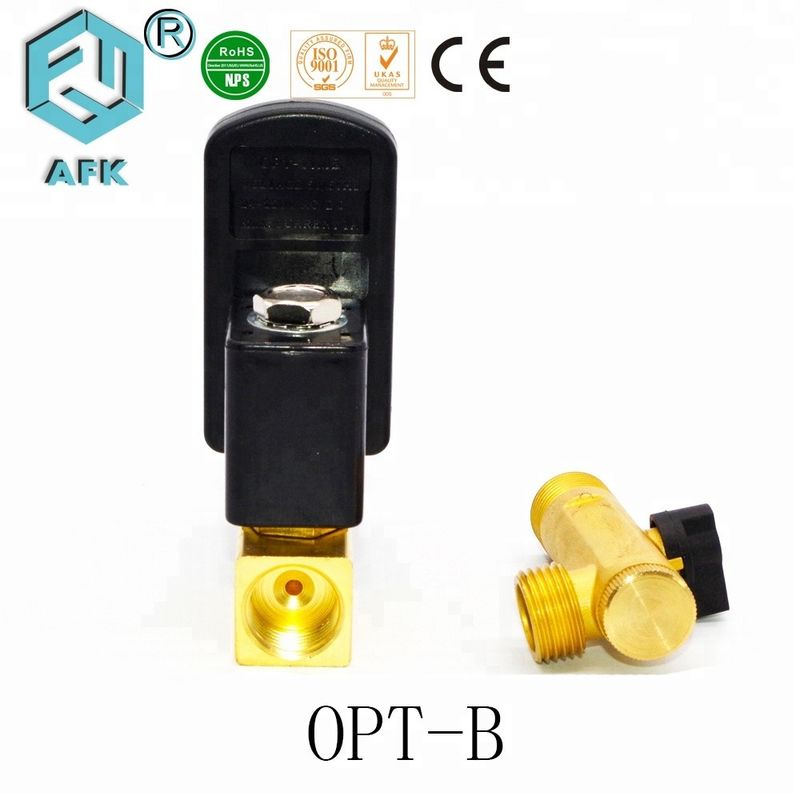

220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic

220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic

    • 220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic
    • 220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic
  • 220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: AFK
    Certification: CE
    Model Number: OPT-B

    Payment & Shipping Terms:

    Minimum Order Quantity: >=1 Sets
    Price: Negotiable
    Packaging Details: White box + Export packing
    Supply Ability: 30000 Set/Sets per Week
    Contact Now
    Detailed Product Description
    Material: Brass Temperature Of Media: Medium Temperature
    Port Size: 1/2" Structure: Shutoff
    Working Pressure: 0.2~1.6Mpa Applicable Medium: Water
    Medium Temperature: -5~60℃ Port: ShenZhen

    220V AC High Pressure Solenoid Valve Flame Retardant ABS Plastic CE Certification

    Product Description

    Timer OPT

    Timer interval (off):0.5-45 minutes

    Emission interval (on):0.5-10 second

    Manual test button:switch

    Power supply:24-240v AC/DC 50/60Hz(voltage 380VAC special can order)

    The current consumption of the large 4mA

    The ambient temperature :-40℃-+60℃

    Protection class:IP65

    The shell material:Flame retardant ABS plastic

    The electrical connection DIN43650A

    Indicator light LED indicator to indicate the power on to off

    Design standard VDE 01 10C



    Valve OPT

    Voltage range +/-10%

    Install site arbitrarily

    Type two position two way direct acting solenoid valve

    In/out interface size: 1/2"

    The maximum working pressure 16 bar

    The minimum/maximum ambient temperature 2℃-55℃

    The maximum temperature 90℃

    Body valve forging brass 5.0 mm orifice size

    Insulation level

    Heat group H class IP65

    Voltage:24-230v AC/DC 50/60Hz

    (voltage380v ac special can order)





    Product Show
    220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic
    220V AC High Pressure Solenoid Valve Matetial Flame Retardant ABS Plastic
