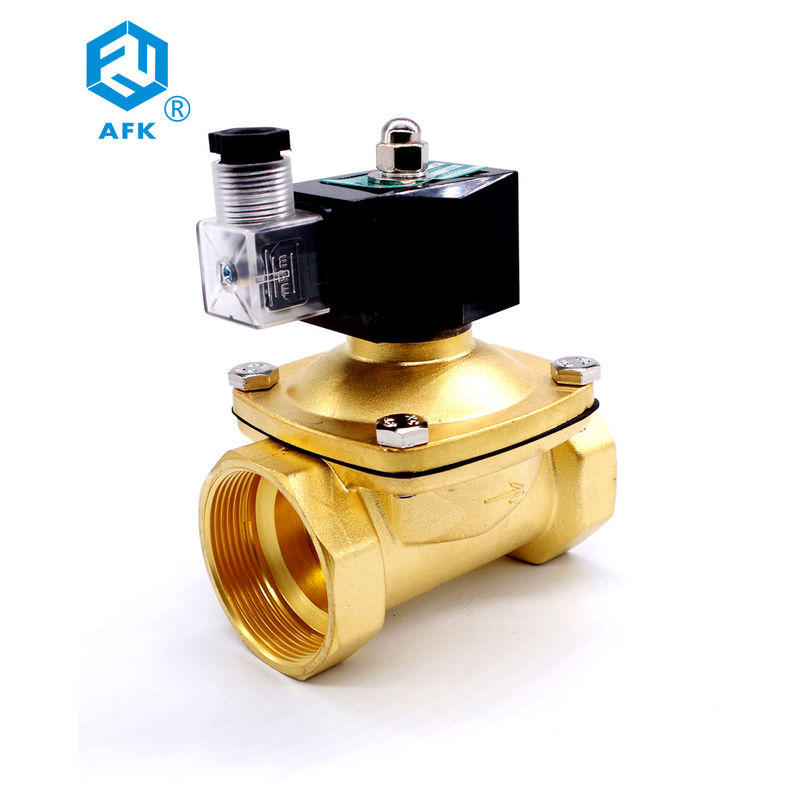

2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal

2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal

    • 2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal
    • 2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal
  • 2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: AFK
    Model Number: 2T-15

    Payment & Shipping Terms:

    Minimum Order Quantity: 10-49 Sets
    Price: Negotiable
    Contact Now
    Detailed Product Description
    Temperature Of Media: High Temperature Pressure: Low Pressure
    Applicable: LPG, Natural Gas Pressure Environment: Normally
    Standard: AC220V, AC110V, AC380V, DC12V No Heating, DC24V No Heating Body Material: Brass
    Selling Units: Single Item

    2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal


    One-time open valve connect the opening structure, without pressure, seal with high performance, achieve leakage



    Product Name
    LPG, gas, Natural Gas Solenoid Valve
    Size
    1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
    Type
    Normally Closed/Normally Opened
    Body material
    Brass, ss304
    Voltage
    220VAC, 110VAC, 24VDC, 24VAC, 12VDC

    Working pressure

    0-10bar for lpg gas (normally closed)
    1-8bar for natural gas (normally opened)
    Seal Material
    Viton
    Medium Temperature
    -5-180degree
    Explosion-proof
    Optional



    2T Brass DN50 2" 12v dc Natural Gas Solenoid Valve VITON Seal

    Install Way

    1.Media flow direction is in line with arrow.

    2. Horizontal installation, the coil up.

    3.The coil vertically upward.

    4. Below 25 can be equipped with explosion-proof coil.

    5. Explosion-proof certificate NO.:GYB03616X

    6. Explosion-proof standards:GB3836.1-2000,GB3836.9-1990

    7. Explosion mark:EXM/11 T4
