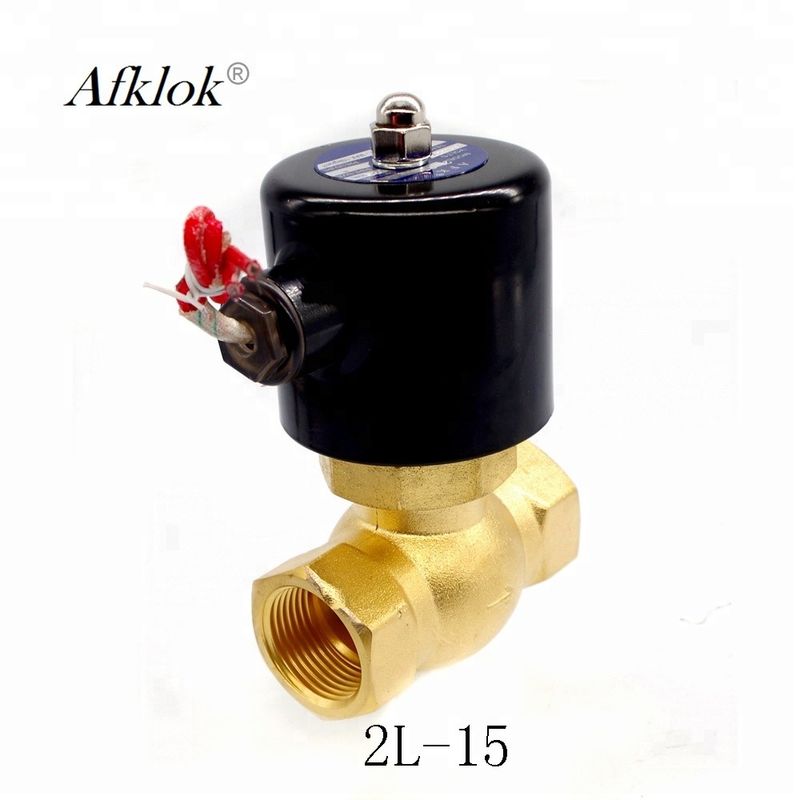

Brass 1/2 inch G Thread 220V AC Steam Air Solenoid Valve 24V DC

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: AFK

Certification: CE

Model Number: 2L-15

Payment & Shipping Terms

Minimum Order Quantity: 1 - 9 Sets

Price: Negotiable

Packaging Details: White box + Export packing

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30000 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

steam turbine valves

,

steam rated valves

Application:
General
Material:
Brass
Pressure:
Low Pressure
Media:
Water
Port Size:
1/2"
Insulation Grade:
B Class
Application:
General
Material:
Brass
Pressure:
Low Pressure
Media:
Water
Port Size:
1/2"
Insulation Grade:
B Class
Description
Brass 1/2 inch G Thread 220V AC Steam Air Solenoid Valve 24V DC
Brass 1/2 inch G Thread 220V AC Steam Air Solenoid Valve 24V DC

1.Model: 2L-15
2.Size: 1/2 inch
3.Thread: G
4.Operation: Pilot type
5.Operating pressure range: 0.2-1.6Mpa
6.Insulation grade: B class
7.Power: 26W
8.Material: Brass
9.Medium: Liquid gas steam <20CST
10.Response time: Open≤2 second ≤3 second
11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V


Characteristic

1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.
2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.
3.Install way: Media flow direction and on the arrow consistent.

The coil vertically upward, the working media clean and no particle impurities.


Maximum working pressure 1.6Mpa
Operating pressure range 0.2-1.6Mpa
Media temperature <20cst liquid gas steam
Operation Pilot type
Voltage AC:380V 220V 36V/50Hz DC:24V
Isulation grade B class
The power supply range -15%~+10%
Power 26W
Response time open <=2 second close<=3 second
Install way

Media flow direction and the no the arrow consistent.The coil vertically upward, the working media clean and no particle impurities


Structure Parameters
Brass 1/2 inch G Thread 220V AC Steam Air Solenoid Valve 24V DC 0
