Brass Steam Solenoid Valve Normally Closed With G Thread Connector

Brass Steam Solenoid Valve Normally Closed With G Thread Connector

    • Brass Steam Solenoid Valve Normally Closed With G Thread Connector
    • Brass Steam Solenoid Valve Normally Closed With G Thread Connector
  • Brass Steam Solenoid Valve Normally Closed With G Thread Connector

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: AFK
    Certification: CE
    Model Number: 2L-15

    Payment & Shipping Terms:

    Minimum Order Quantity: >=1 Sets
    Price: Negotiable
    Packaging Details: White box + Export packing
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 30000 Set/Sets per Week
    Contact Now
    Detailed Product Description
    Application: General Material: Brass
    Temperature Of Media: Medium Temperature Pressure: Low Pressure
    Port Size: 1/2" Structure: Pilot

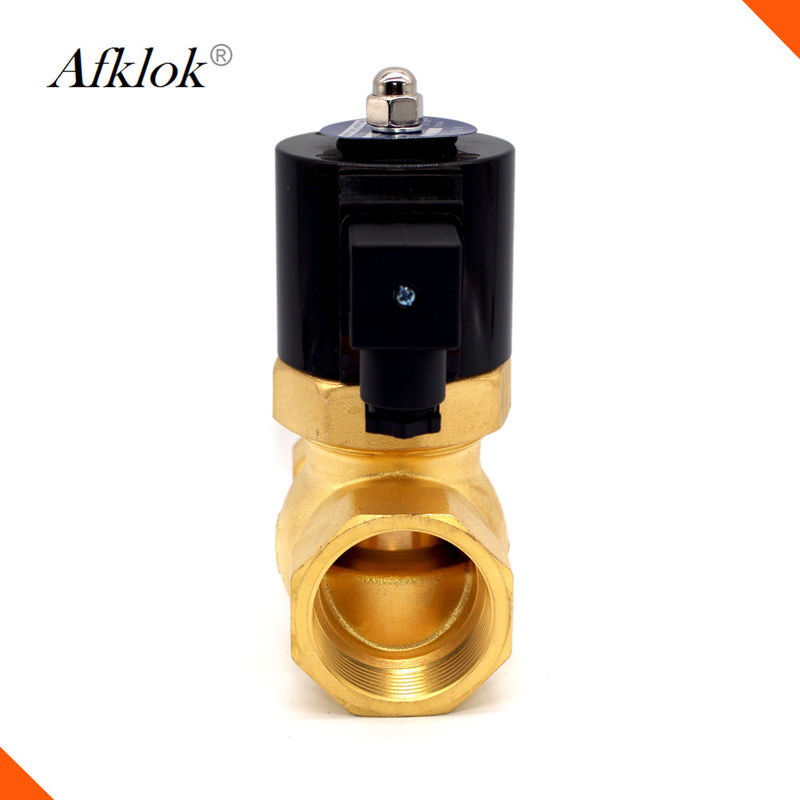

    Brass Steam Solenoid Valve Normally Closed With G Thread Connector

    1.Model: 2L-15
    2.Size: 1/2 inch
    3.Thread: G
    4.Operation: Pilot type
    5.Operating pressure range: 0.2-1.6Mpa
    6.Insulation grade: B class
    7.Power: 26W
    8.Material: Brass
    9.Medium: Liquid gas steam <20CST
    10.Response time: Open≤2 second ≤3 second
    11.Voltage: AC240V/AC220V/AC120V/AC110V/AC24V/DC24V/DC12V

    DESIGN FEATURES
    1. Pilot
    2. Fit for Liquid gas steam
    3. Normally open closed.
    4.Pipe size from 1/2' to 2' .
    5. Service voltage : AC380V, 220V,110V,24V DC24,12V
    6.Thread connector : G
    7.Large flow.
    8.Material: Brass
    Detailed Images

    Characteristic

    1.The top structure of automatic compensation sealing type greatly extend the service life of the valve.

    2.Design of balance piston clearance greatly enhances the reliability of the valve at high temperature.

    3.Install way: Media flow direction and on the arrow consistent. The coil vertically upward, the working media clean and no particle impurities.



    Packaging
    Size
    17cm*17cm*17cm
    Weight
    Different size has different weight
    Packaging Details
    The normal package is wooden box(Size: L*W*H). Or according to customers special request.
