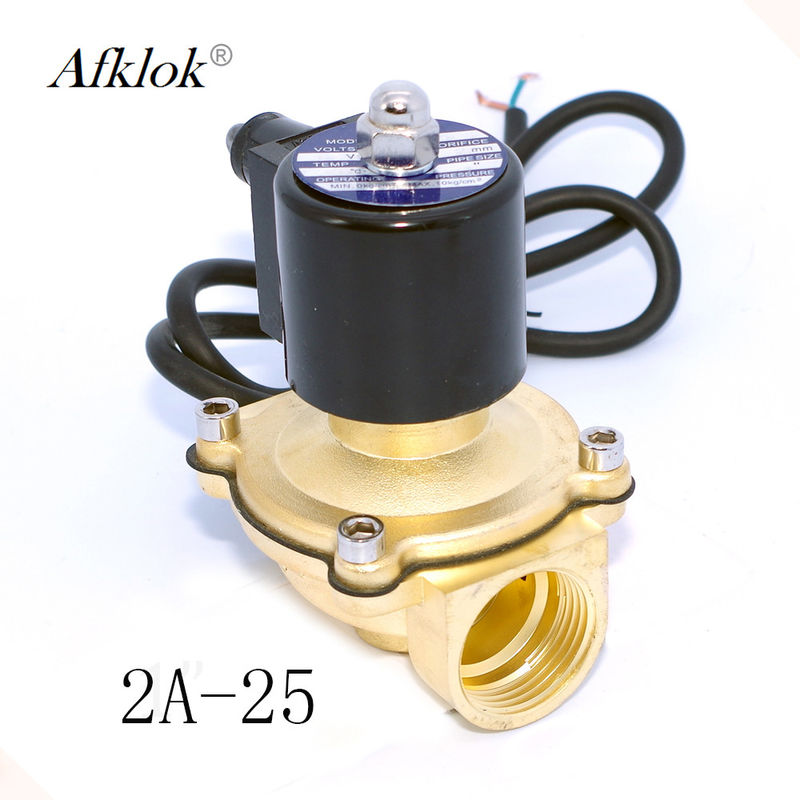

Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure

  • Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure
  • Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure
  • Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure
  • Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure
  • Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure
  • Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure
Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Certification CE
Model Number 2A-25
Minimum Order Quantity 1 - 9 Sets
Price Negotiable
Packaging Details White box + Export packing
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application General Material Brass
Pressure Low Pressure Standard Or Nonstandard Standard
High Light

water fountain valve

,

miniature solenoid valve water
Leave a Message
Product Description
Brass Electric Solenoid Water Valve , 220 AC Water Fountain Valve

Model
A
B
C
Size
Material
2A-15
62
55
102
G1/2"
Brass
2A-20
67
55
113
G3/4"
2A-25
86
73
117
G1"
2A-32
90
77
130
G1 1/4"
2A-40
106
67
164
G1 1/2"
2A-50
123
93
176
G2"
2A-15B
69
57
107
G1/2"
Stainless steel
2A-20B
73
57
115
G3/4"
2A-25B
98
57
125
G1"
2A-32B
115
87
153
G1 1/4"
2A-40B
121
94
162
G1 1/2"
2A-50B
168
123
187
G2"
Structure Parameters
Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure 0
Brass Electric Water Pressure Valve , 220V AC Water Fountain Valve Low Pressure 1
Technical parameter
Ambient temperature
-10℃-50℃
Media Temperature
0℃-60℃
Working pressure
1 Mpa
Media
water
Body material
Brass /stainless steel
Power supply
Below Ф32
AC220V 15VA DC24 15W
Ф401-50
AC220V 15VA DC24 15W
Allow the fluctuation
10%~+10%
Insulation grade
(Bclass)
Insulation class
IP68
Closing and opening speed
1(second)
Application of life
(100 thousand time)
Install way
Media flow direction and the arrow consistent. The coil vertically upward. The working media clean and no particle impurities.
