Low Pressure Irrigation Valve 1.5 Inch Normally Closed Solenoid Valve

Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Model Number 150P
Minimum Order Quantity 1 - 9 Sets
Price Negotiable
Packaging Details White box + Export packing
Supply Ability 30000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature Of Media Medium Temperature Pressure Low Pressure, 0.1~1.04Mpa
Power Solenoid Media Water
Port Size 1.5" Structure Pilot
High Light

irrigation system valve

,

irrigation valve manifold

Leave a Message
Product Description

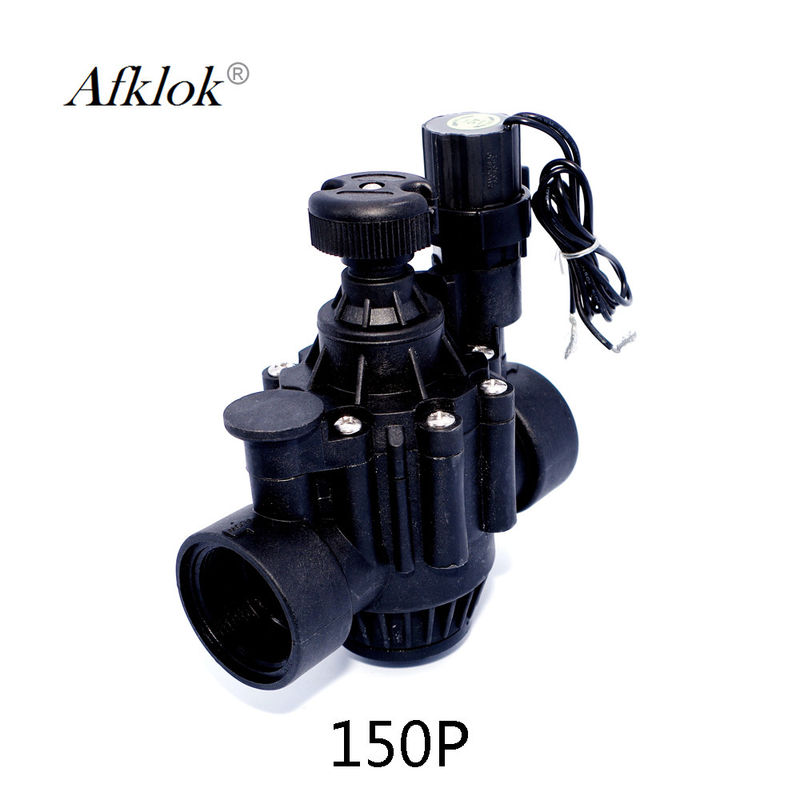

Low Pressure Irrigation Valve 1.5 Inch Normally Closed Solenoid Valve

One

Medium:Water

Temperature: Suitable water≤42℃, surroundings≤52℃

Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation,  large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment.



Two

Model: 150P

Pressure: 0.1~1.04Mpa

connect size: 1.5"

Thread: G

Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA

Orifice size: 40mm

Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)

                                        working model(+red&-black valve open)

                                                                   (-red&-black valve closed)



Three

Material-body valve -nylon

enclosed-NBR

Moving iron core-430F

Static iron core-430F

Spring-SUS304

Sub-magnetic ring-Copper





Water treatment solenoid, normally closed, coil AC24V,  Self-holding type coil DC6-20V (Please specify when ordering)



Product Description

Characteristic


1. The pilot type diaphragm structure , nylon body material.

2. Double filter to prevent clogging eletromagnetic core.

3. Fully enclosed eletromagnetic coil, waterproof.

4. A slow off function to prevent water harmmer, damage the system.


DESIGN FEATURES
1. Irrigation solenoid valve
2. Fit for stadium, farm, industrial dust and water treatment equipment.
3. Normally closed.
4.Pipe size : 1.5 "
5. Service voltage : DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V
6.Thread connnector :G
7.Material-body valve -nylon
Detailed Images
Low Pressure Irrigation Valve 1.5 Inch Normally Closed Solenoid Valve 0
Low Pressure Irrigation Valve 1.5 Inch Normally Closed Solenoid Valve 1
Low Pressure Irrigation Valve 1.5 Inch Normally Closed Solenoid Valve 2
