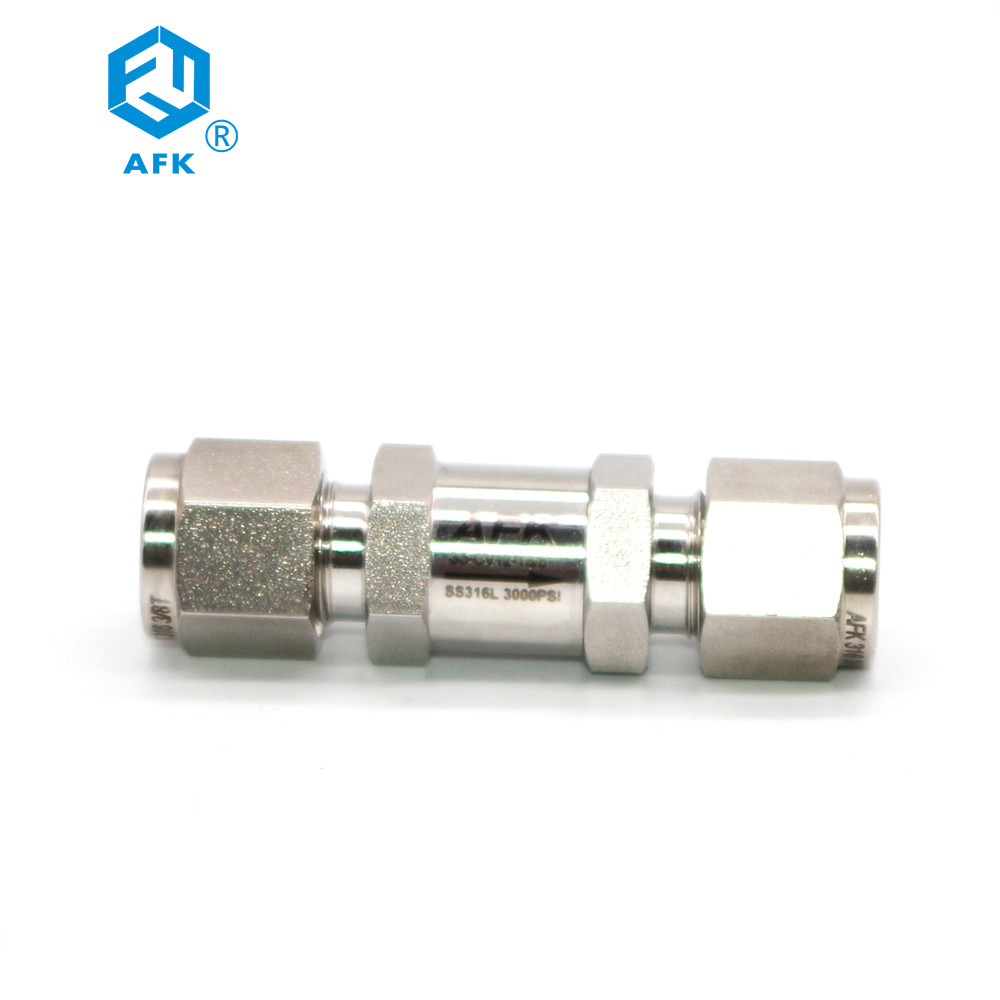

High Pressure One-Way Valve Stainless Steel Check Valve for Gas

High Pressure One-Way Valve Stainless Steel Check Valve for Gas

High Pressure One-Way Valve Stainless Steel Check Valve for Gas

Product Details:

Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: CV

Payment & Shipping Terms:

Minimum Order Quantity: 1 - 9 Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 10000 Set/Sets per Week
Contact Now
Detailed Product Description
Application: General Material: Stainless Steel, SS316
Temperature Of Media: Normal Temperature Pressure: High Pressure, 3000psi
Power: Manual Media: Gas
Port Size: Standard Structure: Check
Connection: Ferrule OD Standard Or Nonstandard: Standard
Port: Shenzhen

Product Description

Stainless Steel 316 Air Compressor One Way Check Valve

High Pressure No Return Valve



*Product Specification
*Name: Check valve
*Size: 6mm 8mm 10mm 1/8" 1/4" 3/8" 1/2"
*Connection: Ferrule OD
*Pressure: 3000psi
*Material: Stainless steel 316


Specification
Number
Part
SS316 VALVE
Brass valve
1
Valve body(Inlet)
SS316
Brass
2
Packing
SS316
Brass
3
O-Ring
VITON/BUNA
VITON/BUNA
4
Ball
SS316
Brass
5
Spring
SS316
Brass
6
Valve Body(Outlet)
SS316
Brass
Dimensions(inch)
Name
Size
A-PT/NPT/G
B-PT/NPT/G
C-(mm)
D(mm)
CV-01
1/8"
1/8"
1/8"
19
74
CV-02
1/4"
1/4"
1/4"
19
74
CV-03
3/8"
3/8"
3/8"
22
74
CV-04
1/2"
1/2"
1/2"
27
75.5
CV-06
3/4"
3/4"
3/4"
35
83.5
CV-8
1"
1"
1"
41
87.5
Can be customized according to customer‘s’ requirements
