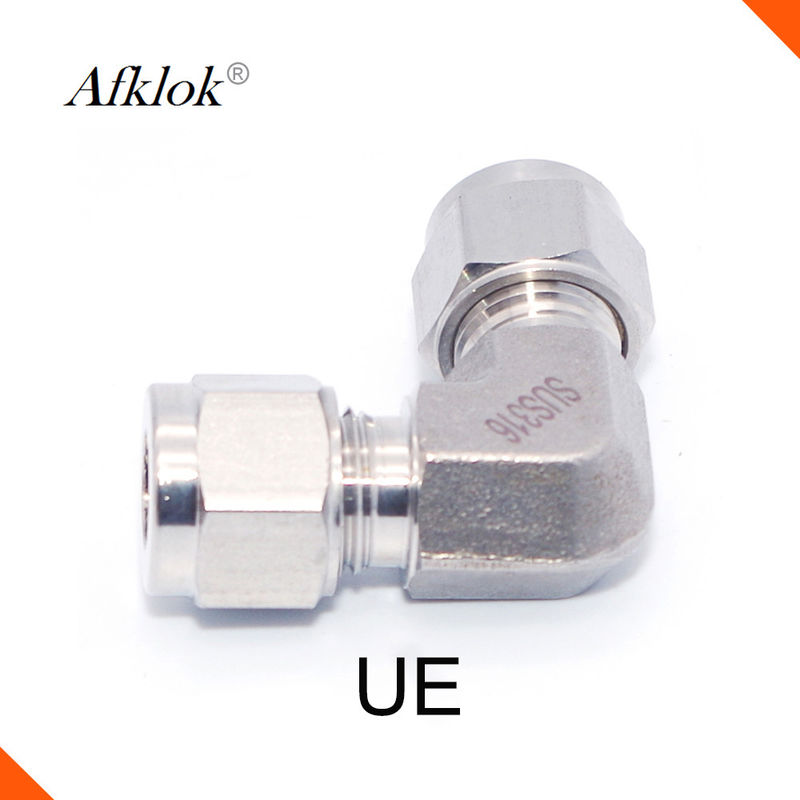

SS316 Stainless Steel Union Elbow Compression Pipe Fittings

Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Certification CE
Model Number UE
Minimum Order Quantity >=1 Sets
Price Negotiable
Packaging Details Export packing
Supply Ability 10000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Union Material Stainless Steel, SS316
Technics Forged Connection Ferrule
Shape Equal Head Code Hexagon
Application Water Gas Medium Gas
High Light

stainless steel threaded pipe fittings

,

stainless steel hose barb fittings

Leave a Message
Product Description
Product Description

Product Name
Forged 316 Stainless steel fitting Union Elbow 90 degree elbow pipe fitting
Material
stainless steel 316
Connect
Ferrule OD
Medium
Gas
Brade
AFK
Connection
Tube fitting
Used
Chemical and Petrochemical





Union Elbow (Metric)
Tube O.D. Catalog Number A D E F G H
3 UE-3-0 22.3 12.9 2 12 10 15.7
4 UE-4-0 25.4 13.7 3 12 12 18.8
6 UE-6-0 27.0 15.3 5 12 14 19.6
8 UE-3-0 28.8 16.2 6 14 17 21.3
10 UE-10-0 31.5 17.2 8 17 19 23.9
12 UE-12-0 36.0 22.8 10 22 22 25.9
14 UE-14-0 38.0 24.4 10 24 27 27.9
15 UE-15-0 38.8 24.4 11 24 27 27.9
16 UE-16-0 38.0 24.4 12 24 27 27.9
18 UE-18-0 39.8 24.4 14 27 30 29.7
20 UE-20-0 44.6 26.0 16 30 32 34.5
22 UE-22-0 44.6 26.0 18 30 32 34.5
25 UE-25-0 49.1 31.3 21 34 38 36.5

Fractional
1/16 UE-005-0 17.8 8.6 1 10 10 14.0
1/8 UE-01-0 22.4 12.7 3 12 12 15.8
3/16 UE-015-0 25.4 13.7 3 12 12 18.8
1/4 UE-02-0 27.0 15.2 5 12 14 19.6
3/8 UE-03-0 30.5 16.8 8 17 17 21.3
1/2 UE-04-0 36.0 22.8 10 22 22 23.1
5/8 UE-05-0 38.1 24.4 12 24 27 26.0
3/4 UE-06-0 40.0 24.4 15 27 30 29.7
1 UE-08-0 49.0 26.0 21 34 38 36.8
