High Pressure Irrigation Solenoid Valve 400PH Flange Connection 4 Inch DV 24V

High Pressure Irrigation Solenoid Valve 400PH Flange Connection 4 Inch DV 24V

High Pressure Irrigation Solenoid Valve 400PH Flange Connection 4 Inch DV 24V

Product Details:

Place of Origin: China
Brand Name: AFK
Model Number: 400PH

Payment & Shipping Terms:

Minimum Order Quantity: 5
Packaging Details: White box + Export packing
Delivery Time: 5-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces per week
Contact Now
Detailed Product Description
Material: Nylon Pressure: 0-1.0 Mpa
Voltage: AC220v/AC110v/AV24v,50-60HZ DC24V/DC12V/DV9V DCLatch Temperature Of Media:: Medium Temperature
Media: Water Size: 4 Inch

The Golf Lawn Garden 400PH Flange connection Irrigation Solenoid Valve 4 Inch DV24V High Pressure



Structure Parameters:


Temperature: Suitable



water≤42℃, surroundings≤82℃


Model: 400P



Pressure: 0.1-1.0Mpa


Flow rate: 1.14-70㎥/h

Thread: G, Flange

Orifice size: 80mm


Self-holding type coil: DC6-20V,



Pulse Width (20-500mSec)


working model(+red&-black valve open)





Desing features:

1. Irrigation solenoid valve

2. Fit for stadium, farm, industrial dust and water treatment equipment.

3. Normally closed.

4.Pipe size 4".

5. Service voltage : DC latching/AC110V/AC220V

/AC24V/DC12V/DC24V/DC9V

6.Thread connnector : G . Flange

7.Material-body valve -nylon





Structure Parameters:


Temperature: Suitable



water≤42℃, surroundings≤82℃


Model: 400P



Pressure: 0.1-1.0Mpa


Flow rate: 1.14-70㎥/h

Thread: G, Flange

Orifice size: 80mm


Self-holding type coil: DC6-20V,



Pulse Width (20-500mSec)


working model(+red&-black valve open)



Detail Image

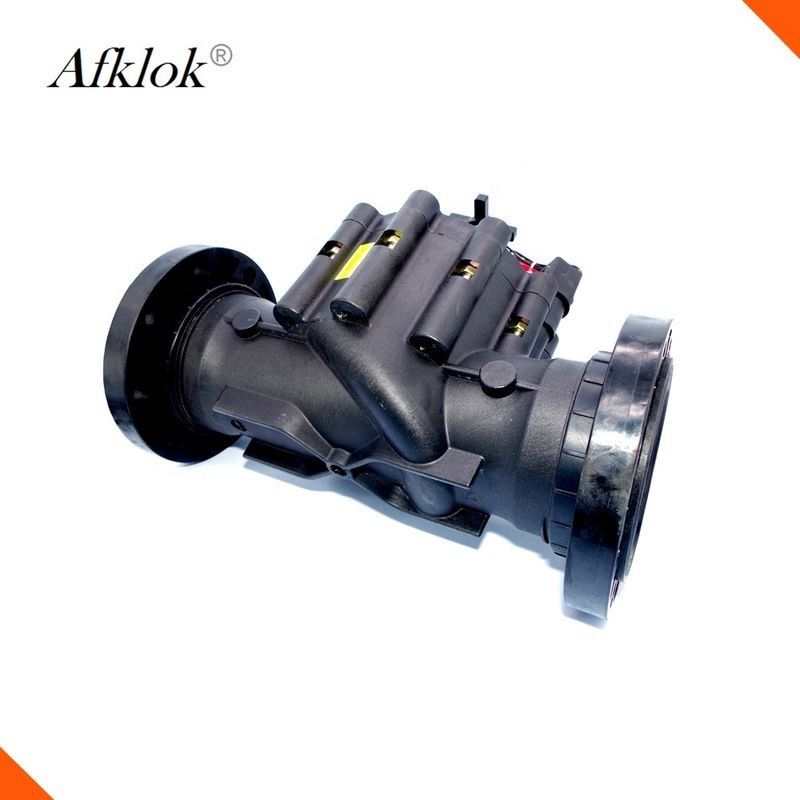

High Pressure Irrigation Solenoid Valve 400PH Flange Connection 4 Inch DV 24V



FAQ



Q1. What is your terms of packing?
A: Export standard.

Q2. What is your terms of payment?
A: T/T ,PayPal, Western Union.

Q3. What is your terms of delivery?
A: EXW.

Q4. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
