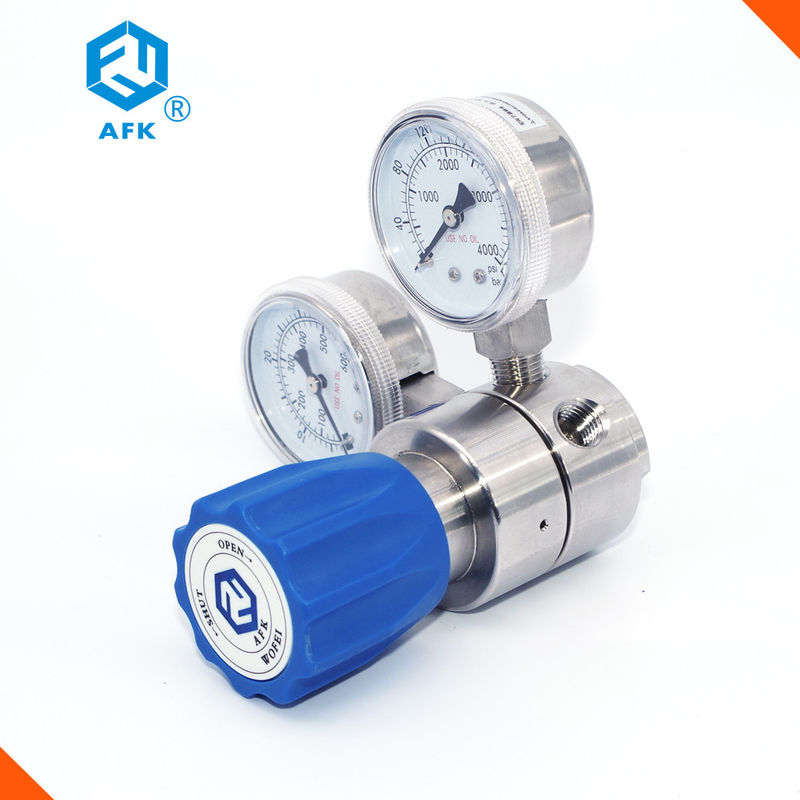

High Pressure Stainless Steel Pressure Regulator Medium Flow Rate With Two Gauges

  • High Pressure Stainless Steel Pressure Regulator Medium Flow Rate With Two Gauges
  • High Pressure Stainless Steel Pressure Regulator Medium Flow Rate With Two Gauges
  • High Pressure Stainless Steel Pressure Regulator Medium Flow Rate With Two Gauges
Place of Origin China
Brand Name AFK
Certification CE
Model Number R11
Minimum Order Quantity 1
Price Negotiable
Packaging Details Export Packing
Delivery Time 5-8 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 pieces per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 1.5 KGS CV 0.08
Maternal Material 316 L Maternal Thread 1/4" NPT F
High Light

flow control valve

,

gas cylinder regulator
Leave a Message
Product Description

High Pressure Medium Flow Rate CO2 Argon Gas pressure regulator with Two Gauges



Specification

R11 Series stainless steel pressure regulator is Single-stage diaphrame, vacuum structure stainless diaphragm output. It has piston pressure reducing structure,

constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive gas etc..

Material List

1

Body

SS316L, brass, nickel plated brass ( Weigh :0.9kg)

2

Cover

SS316L, brass, nickel plated brass

3

Diaphragm

SS316L

4

Strainer

SS316L(10um)

5

Valve Seat

PCTFE,PTFE,Vespel

6

Spring

SS316L

7

Plunger Valve Core

SS316L



Technical Data

1

Maximun Input Pressure

500,3000 psig

2

Output Pressure Range

0~25, 0~50, 0~100, 0~250, 0~500 psig

3

Safety Testing Pressure

1.5 times of maximum input pressure

4

Working Temperature

-40°F~ +165°F (-40°C~ +74°C )

5

Leakage Rate

2×10-8 atm cc/sec He

6

CV Value

0.08







High Pressure Stainless Steel Pressure Regulator Medium Flow Rate With Two Gauges 0

Related Product



Stainless Steel 316L High Pressure Gas Two Stage Argon Pressure Regulator

Specification:

1)Max inlet pressure: 500, 3000 psi

2)Outlet pressure: 0~25, 0~50, 0~100, 0~250psi

3)Safety testing pressure: 1.5 times of max. inlet pressure

4)Working temperature: -40℉~+165℉ (-40~+74℃)

5)Leakage rate: 2*10-8 atm cc/sec He

6)Cv: 0.06

Main Features

1) Five hole design of the body

2) Two -stage reduce Structure.

3) Use hard-seal between body and diaphragm

4) Body Thread: input and output connection 1/4" NPT F

5) Easy to sweep inside body

6) Filter element installed internally

7) Panel mountable or wall mounting available

8)Optional outlet : needle valve , diaphragm valve



Typical applications

1) Laboratory

2) Gas Chromatograph

3) Gas Laser

4) Gas bus-bar

5) Petrochemical industry

6) Tested instrumentation



Material

1)Body: 316L, Brass

2)Bonnet: 316L, Brass

3)Diaphragm: 316L

4)Strainer: 316L

5)Seat: PTFE

6)Spring: 316L

7)Stem: 316L
