Energy Saving Water Solenoid Valve Normally Open 1/8" Derect Acting Type Durable

  • Energy Saving Water Solenoid Valve Normally Open 1/8" Derect Acting Type Durable
  • Energy Saving Water Solenoid Valve Normally Open 1/8" Derect Acting Type Durable
  • Energy Saving Water Solenoid Valve Normally Open 1/8" Derect Acting Type Durable
  • Energy Saving Water Solenoid Valve Normally Open 1/8" Derect Acting Type Durable
Place of Origin China
Brand Name AFK
Certification RoSH
Model Number 2W-025-06
Minimum Order Quantity 1-9 pieces
Price Negotiable
Packaging Details Export packing
Delivery Time 5-8 days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 pieces per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model NO. 2W-025-06 Type Normally Closed
Materail Brass Size 1/8‘’
Structure Ball,Diaphragm,Control Application General,irrigation,air And General Use
High Light

electronic water flow control valve

,

stainless steel solenoid valves for water
Leave a Message
Product Description

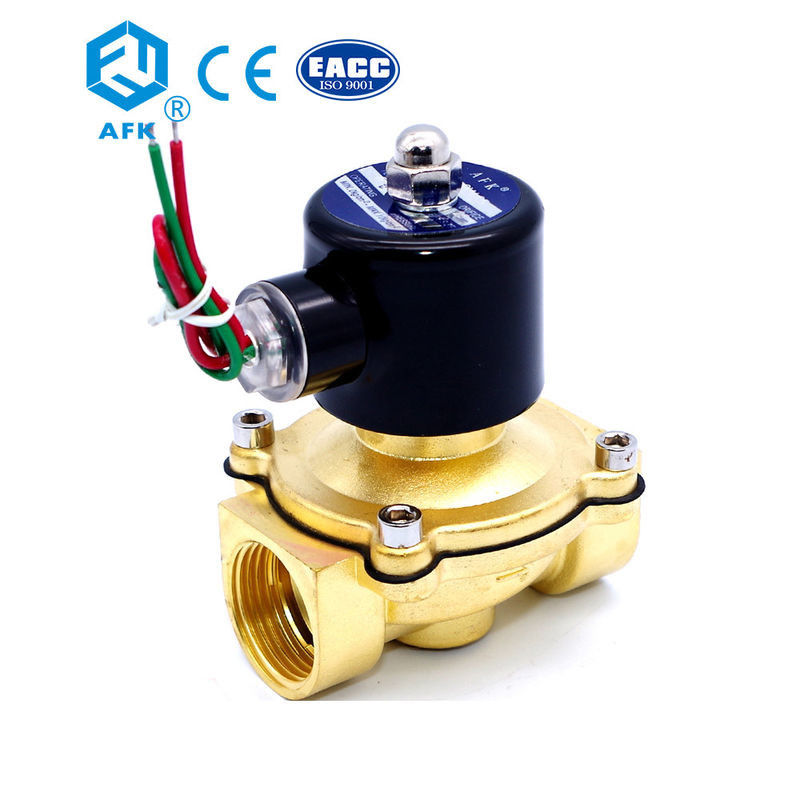

Brass Solenoid Valve 1/8" Derect-acting Type Normally Closed Used for Water Air Oil



Characteristic


1. The direct-acting type diaphragm structure without pressure to open to extend the using field.


2. Using the plate diaphragm structure opening and closing with reliable. Then extent the product life.


3. Can choose plastic type, explosion-proof energy-saving.



Detail Data



Model NO. 2w-025-06 2w-025-08 2w-040-10 2w-160-10 2w-160-15 2w-200-20 2w-250-20 2w-320-32 2w-400-40 2w-500-50
Pipe size 1/8” 1/4” 3/8” 1/2” 3/4” 1” 1 1/4“ 1 1/2” 2”
Orifce size 2.5mm 4mm 4mm 16mm 16mm 20mm 25mm 32mm 40mm 50mm
CV valve 0.23 0.6 4.8 4.8 7.6 12 24 29 48
fuild Air, water, ol, the neutral gas,liquid
Service voltage AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
Operating Direct acting Type Normally closed
Body Material Brass viscosity (Below)20CST
Working pressure Water, air;0-10kgf/m2 ;oil:0-7kgf/m2
Material of seal Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON









































Product size

Energy Saving Water Solenoid Valve Normally Open 1/8" Derect Acting Type Durable 0
