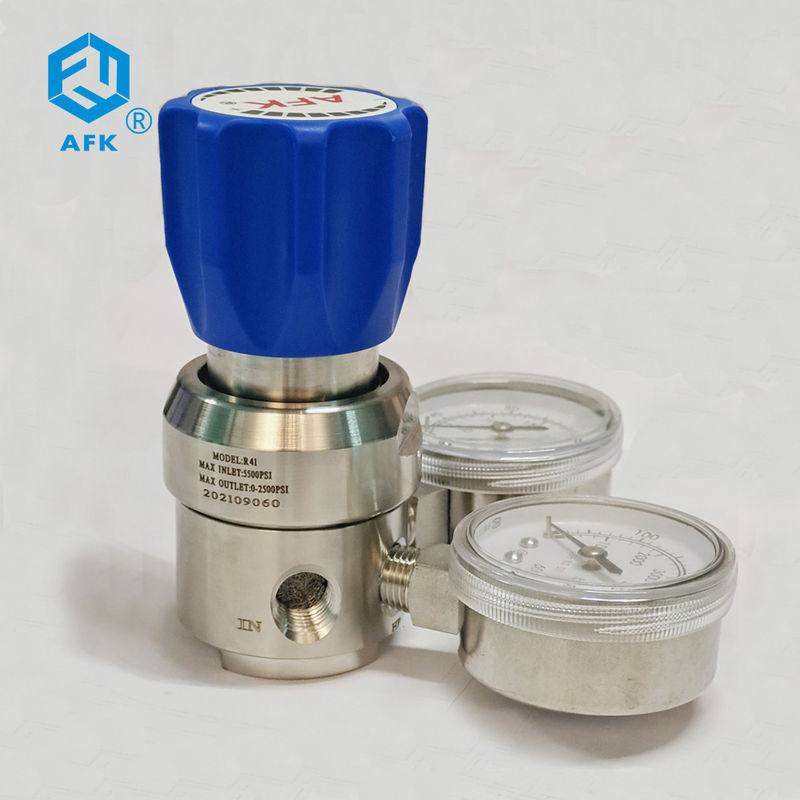

CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

Place of Origin China
Brand Name AFK
Certification CE
Model Number R41
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 10
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 200

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Online Support Condition New
Material Stainless Steel Warranty 1 Year
Application Industry Equipment Key Words Stainless Steel Pressure Regulator
CV 0.08 Female Thread 1/4" NPT(F)
Service Complete After-sales Service Max Inlet Pressure 6000psi
High Light

6000PSI Double Gauge Pressure Regulator

,

CE Double Gauge Pressure Regulator

,

NPT SS Gas Pressure Regulator

Leave a Message
Product Description
R41 series stainless steel pressure reducer adopts piston pressure reducing structure with stable output pressure. It is mainly used for high input pressure requirements, with a maximum pressure of 6000PSI. It is suitable for pure gas, standard gas, corrosive gas, etc.
Design features
Piston type pressure reducing structure
Female thread: 1 / 4 "NPT (f)
Built in filter screen
Panel type or wall type installation can be adopted

characteristic
parameter
1 Maximum input pressure 3000,6000psi
2 Output pressure 0~250,0~500,0~1500,0~3000psig
3 Safety test pressure 1.5 times the maximum input pressure
4 Applicable temperature -23℃~+230℃
5 Leakage rate foam
6 CV 0.06
