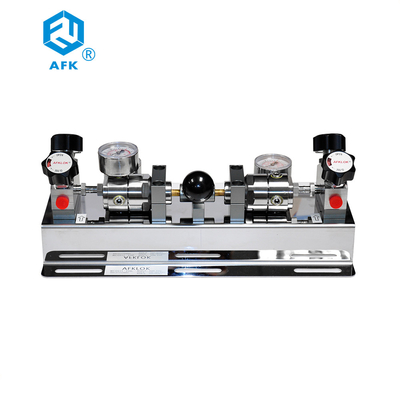

Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300

  • Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300
  • Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300
  • Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300
  • Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300
  • Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300
Place of Origin China
Brand Name AFK
Certification CE
Model Number WL300
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 15Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
After-sales Service Provided Online Support Condition New
Material Stainless Steel,316 Warranty 1 Year
Key Words Semi Automatic Switching System Max. Inlet Pressure 3000, 2200Psi
Max. Outlet Pressure 25, 50, 100, 150, 0~250Psi Leakage Rate 2 X 10-8 Atm.cc/sec He
Cv 0.14
High Light

Stainless Steel Pressure Regulator

,

Stainless Steel Pressure Regulator 2200Psi

,

SUS316 Argon Pressure Regulator
Leave a Message
Product Description

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging.The maximum input pressure of 20.7Mpa (3000psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.

Design Features Of Semi Automatic Switching System Pressure Regulator

1) Pressure regulator for special gas

2) Equipped relief pressure valve

3)Pressure regulator and pipe through the pressure test and leakage test

4)2″ stainless steel pressure gauge, reading clearly

5) The knob of diaphragm valves with on/off logo.

Product Specifications



1) Max. Inlet Pressure: 3000, 2200Psi



2) Max. Outlet Pressure: 25, 50, 100, 150, 0~250Psi



3)Working Temperature: -40℃~74℃(-40℉~165℉)



4) Leakage rate: 2 x 10-8 atm.cc/sec He



5)Cv: 0.14



Materials of Construction

Body:stainless steel

Seat:PU,PTFE,PCTFE

Inlet connection:1/4"tube fitting,1/4"FSR,1/2"FSR

Outlet connection:1/4"tube fitting,1/4"FSR

Body of diaphragm valve:stainless steel



Switching System Stainless Steel Pressure Regulator 2200Psi AFK WL300 0

ORDERING
INFORMATION
WL3
1
1
1
S
H
1
1
-N2
Series
Function Options
Outlet Connection
Inlet Connection
Body Material
Input
Pressure
Outlet
Pressure
Gauge
Gas Option
WL300 Series Semi-automatic Changeover Device
1.With emptying, purging distribution function
1:1/4”NPT(F)
1:1/4″Weldmg
S:stainless
H:3000psi
1:25psi
1:MPa
Blank: None

2.Wrthout Emptying, purging distribution function
2:1/4”Tube fitting
2:1/4”NPT(M)
steel
M:2200psi
2:50psi
2:Bar/psi
N2:nitrogen

3.Emptying. purging distnbuUon+pressure sensor
3:3/8”NPT(F)
3:3/8”Melding
C:nickel plated
L:1000psi
3:100psi
3:psi/KPa
O2:oxygen

4.With pressure sensor
4:3/8”Tube fitting
4:3/8”NPT(M)
brass
O: Other
4:150psi
4:Other
H2:hydrogen

5:Other
5:1/2”NPT(F)
5:1/2”Melding


5:250psi

C2H2:acetylene


6:1/2”Tube fitting
6:1/2”NPT(M)


6:Other

CH4:methane


7:Other
7:1/4”Tube fitting




Ar:argon



8:3/8″Tube fitting




He:helium



9:1/2″Tube fitting




Air:air



10:Other
