Sanitary Pneumatic Throttle Control Valve , Thread Ends Pneumatic Air Control Valve

  • Sanitary Pneumatic Throttle Control Valve , Thread Ends Pneumatic Air Control Valve
  • Sanitary Pneumatic Throttle Control Valve , Thread Ends Pneumatic Air Control Valve
  • Sanitary Pneumatic Throttle Control Valve , Thread Ends Pneumatic Air Control Valve
Place of Origin China
Brand Name AFK
Certification None
Model Number AS
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 40*9*8cm
Delivery Time 5-7 working day
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000PCS Per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Normally Closed Or Normally Open Material Stainless Steel 304
High Light

pneumatic directional control valve

,

pneumatic proportional flow control valve
Leave a Message
Product Description

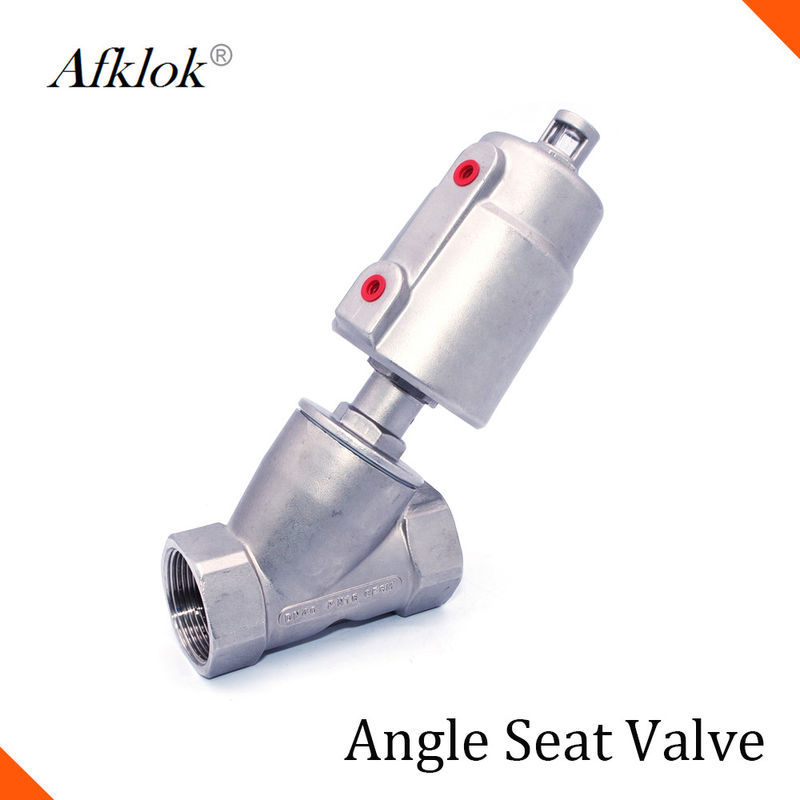

Sanitary Type Stainless Steel Thread Ends Angle Seat Valve

Advantage

1)Large flux, low resistance, no water-hammer
2)Y-type shape enlarged to flowing section, which could raise the flux by 30% and make flow more smooth.
3)Super Long Life
4)Which help the stem adjust and lubricate itself automatically
5)The cylinder material is stainless steel. Lubricating automatically, 360° rolling freely.

Applications

1) Bear & Drinks Filling Machinery

2) Textile Printing & Dying

3) Gas Industry

4) Pharmacy & Medical Equipment

5) Chemical Industry

6) Disinfection

7) Frothing Equipment.

8) Water/ Sewage Disposal



Product Parameters
Fluid Pressure
Max. 1.6 Mpa (232psi)
Control Pressure
0.3 ~0.8 Mpa (43.5~116psi)
Control Medium
Neutral gas or air
Body material
CF8M/CF8
Seal Material
PTFE
Actuator Material
CF8
Actor Size
50mm, 63mm, 80mm, 100mm
Applicable Medium
Water, Alcohol, Oil , Fuel, Steam, Neutral gas or liquid, Organic solvent, Acid and lye
Medium Viscosity
Max 600 mm2/s
Medium Temperature
-10℃-+180℃
Control Type
Normally closed, normally open, double acting
Connection
Threaded(BSP, NPT), Welded, Flanged, Tri-clamp
