2 Way 2 Position Pneumatic Angle Seat Valve , Pneumatic Manual Control Valve

  • 2 Way 2 Position Pneumatic Angle Seat Valve , Pneumatic Manual Control Valve
  • 2 Way 2 Position Pneumatic Angle Seat Valve , Pneumatic Manual Control Valve
Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Model Number LCJ-02A
Minimum Order Quantity 1 - 9 Sets
Price Negotiable
Packaging Details Export packing
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 10000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application General Material Stainless Steel, SS304
Temperature Of Media Medium Temperature Pressure Low Pressure
Power Manual Media Gas
Structure Pneumatic Control Functions Normally Open
High Light

pneumatic directional control valve

,

pneumatic pressure controller
Leave a Message
Product Description

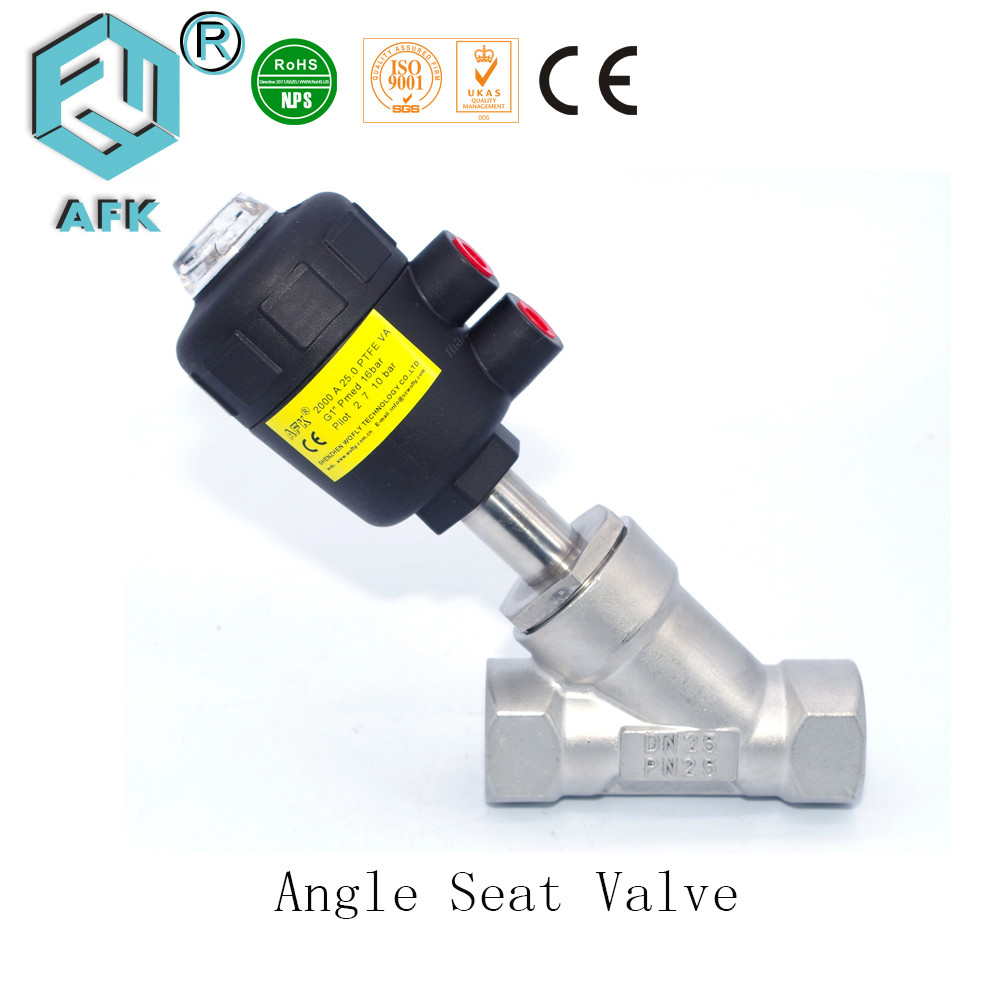

2 Way 2 Position Pneumatic Angle Seat Valve , Pneumatic Manual Control Valve

Technical data

*Pressure range:0~16bar

*Medium temperature:-10℃~+60℃

*Environmental temperature:-10℃~+60℃

*Body material:Stainless steel

*Sealing material: PTFE

*Actuator material:PA

*Medium:Neutral gas, air, water

*Manufacturing standard:GB

Option

*Control functions:Normally open

*PPS Actuator material suitable for environmental temperature:+5℃~130℃

*No return spring double acting actuators

*Tri-clamp connection

*Electronic position feedback

*Independent adjustable stroke limit,

*suitable for high low flow schedule

*Manual emergency switch

*Pilot valve suitable Namur adapter



Product Parameters
Specification
L
L1
G
B
H
DN15
173
85
1/2"
G1/4"
147
DN20
182
95
3/4"
G1/4"
148
DN25
209
103
1"
G1/4"
175
DN32
219
118
1 1/4"
G1/4"
180
DN40
243
130
1 1/2"
G1/4"
203
DN50
265
148
2"
G1/4"
213
DN65
287
190
2 1/2"
G1/4"
233
DN80
315
225
3"
G1/4"
244
2 Way 2 Position Pneumatic Angle Seat Valve , Pneumatic Manual Control Valve 0
