Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: UE
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Inside PP transparent bag, small box, outside carton.
Supply Ability: 2500 Piece/Pieces per Week
Type: |
Elbow |
Material: |
Stainless Steel |
Technics: |
Forged |
Connection: |
Female, Male, Dual Ferrule, Tube, Welded |
Shape: |
Equal |
Head Code: |
Hexagon |
Applicable Fluid: |
Nitrogen, Hydrogen,oxygen,argon,ammonia, Propane, Air And Other Gases |
Working Pressure Range: |
0-3000psig |
Size: |
1/8", 1/4", 3/8", 1/2", 3/4", 1", 4mm, 6mm, 8mm, 10mm, 12mm |
Body Shape: |
Straight Union, 90degree Elbow, Tee(3 Way), Cross(4 Way) |
Type: |
Elbow |
Material: |
Stainless Steel |
Technics: |
Forged |
Connection: |
Female, Male, Dual Ferrule, Tube, Welded |
Shape: |
Equal |
Head Code: |
Hexagon |
Applicable Fluid: |
Nitrogen, Hydrogen,oxygen,argon,ammonia, Propane, Air And Other Gases |
Working Pressure Range: |
0-3000psig |
Size: |
1/8", 1/4", 3/8", 1/2", 3/4", 1", 4mm, 6mm, 8mm, 10mm, 12mm |
Body Shape: |
Straight Union, 90degree Elbow, Tee(3 Way), Cross(4 Way) |

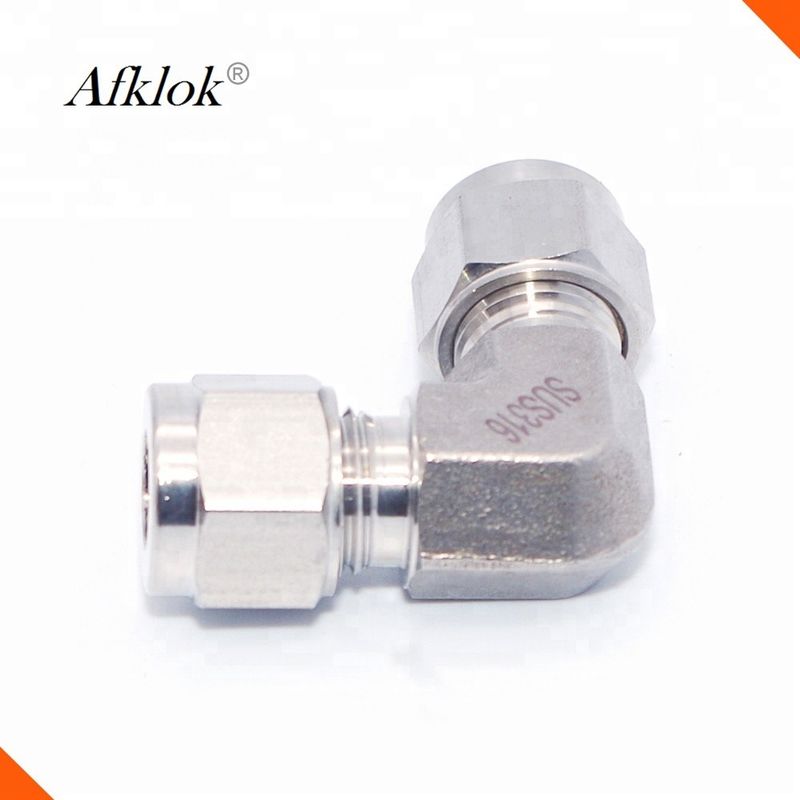

press hydraulic fittings 90 degree square tube elbow
Shape Instruction
Connection Instruction
Feature
| Union Elbow (Metric) | |||||||
| Tube O.D. | Catalog Number | A | D | E | F | G | H |
| 3 | UE-3-0 | 22.3 | 12.9 | 2 | 12 | 10 | 15.7 |
| 4 | UE-4-0 | 25.4 | 13.7 | 3 | 12 | 12 | 18.8 |
| 6 | UE-6-0 | 27.0 | 15.3 | 5 | 12 | 14 | 19.6 |
| 8 | UE-3-0 | 28.8 | 16.2 | 6 | 14 | 17 | 21.3 |
| 10 | UE-10-0 | 31.5 | 17.2 | 8 | 17 | 19 | 23.9 |
| 12 | UE-12-0 | 36.0 | 22.8 | 10 | 22 | 22 | 25.9 |
| 14 | UE-14-0 | 38.0 | 24.4 | 10 | 24 | 27 | 27.9 |
| 15 | UE-15-0 | 38.8 | 24.4 | 11 | 24 | 27 | 27.9 |
| 16 | UE-16-0 | 38.0 | 24.4 | 12 | 24 | 27 | 27.9 |
| 18 | UE-18-0 | 39.8 | 24.4 | 14 | 27 | 30 | 29.7 |
| 20 | UE-20-0 | 44.6 | 26.0 | 16 | 30 | 32 | 34.5 |
| 22 | UE-22-0 | 44.6 | 26.0 | 18 | 30 | 32 | 34.5 |
| 25 | UE-25-0 | 49.1 | 31.3 | 21 | 34 | 38 | 36.5 |
| Fractional | |||||||
| 1/16 | UE-005-0 | 17.8 | 8.6 | 1 | 10 | 10 | 14.0 |
| 1/8 | UE-01-0 | 22.4 | 12.7 | 3 | 12 | 12 | 15.8 |
| 3/16 | UE-015-0 | 25.4 | 13.7 | 3 | 12 | 12 | 18.8 |
| 1/4 | UE-02-0 | 27.0 | 15.2 | 5 | 12 | 14 | 19.6 |
| 3/8 | UE-03-0 | 30.5 | 16.8 | 8 | 17 | 17 | 21.3 |
| 1/2 | UE-04-0 | 36.0 | 22.8 | 10 | 22 | 22 | 23.1 |
| 5/8 | UE-05-0 | 38.1 | 24.4 | 12 | 24 | 27 | 26.0 |
| 3/4 | UE-06-0 | 40.0 | 24.4 | 15 | 27 | 30 | 29.7 |
| 1 | UE-08-0 | 49.0 | 26.0 | 21 | 34 | 38 | 36.8 |
Q1. What products can you provide?
Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.
My dear friend, if you wanna know more information about our products such as dimension size and drawing, kindly send us inquiry or email, we will reply you within 24 hours!
Please provide the following parameters in your inquiry as many as possible:
1. Model No. . Or describe shape: straight union, 90° elbow, T(3 way), cross(4 way)
2. Connection: NPT male threaded, NPT female threaded, ferrule, welded, tube, hose barb.
3. Material: SS316, SS304
4. Fluid: what fluid is used for? Gas,oil?
5. Actual working pressure
6. Quantity
Please advise the model no. or describe what kind of fittings do you need, then we can send you the exact model and quotation.
For example,
A. UT, 1/2" tube ferrule, SS316, 100pcs.
B. straight union, 8mm hose barb* 1/4"NPT male, nitrogen, 2000psi, SS316, 100pcs.
C. 90 degree elbow, one end is 3/8" NPT male thread, the other is 6mm double ferrule(directly connected to tube), hydrogen gas, 1500psi, SS316, 100pcs.
