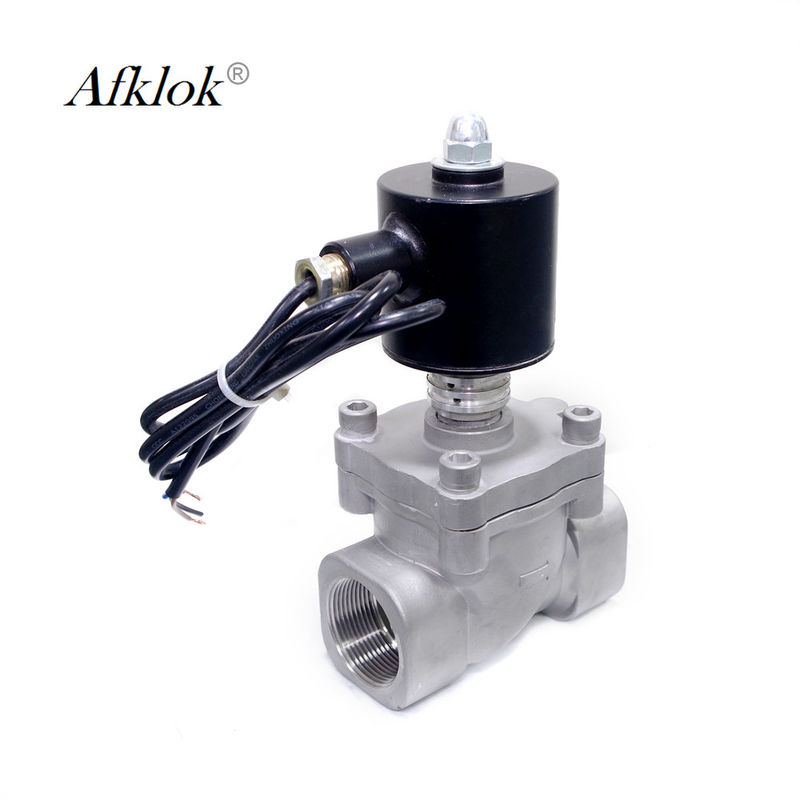

Diaphragm DC24V High Pressure Solenoid Valve Stainless Steel 100 Bar
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Stainless Steel | Power | Solenoid |
---|---|---|---|
Pressure | High Pressure | Temperature Of Media | Medium Temperature |
Media | Gas | Port Size | 1/2''-2'' |
Standard Or Nonstandard | Standard | Application | General |
Voltage | DC/AC24~220V,DC12V / 24V,DC24V | Warranty | 1 Year |
High Light | DC24V High Pressure Solenoid Valve,Diaphragm High Pressure Solenoid Valve,100 Bar Stainless Steel Solenoid Valve |
Normally Closed Type (NC):
2W Direct Acting Operating Diaphragm Normally Closed Solenoid Valve
Characteristic:
1. The direct-acting type diaphragm structure without pressure to open to extend the using field.
2. Using the plate diaphragm structure opening and closing with reliable. Then extent the product life.
3. Plastic box connecting wire type, explosion-proof and energy-saving type optional.
Model No. | 2W-025-06 | 2W-025-08 | 2W-040-10 | 2W-160-10 | 2W-160-15 | 2W-200-20 | 2W-250-25 | 2W-320-32 | 2W-400-40 | 2W-500-50 |
Pipe Size | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | |
Orifice Size | 2.5mm | 4mm | 4mm | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
Cv Value | 0.23 | 0.6 | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
Fluid | air, water, oil, neutral gas and liquid | |||||||||
Service Voltage | AC380V AC220V AC110V DC24V DC12V (allow ±10%) | |||||||||
Operating Mode | direct acting | Type | normally closed | |||||||
Body Material | brass, stainless steel | Fluid Viscosity | <20CST | |||||||
Working Pressure | water and air: 0-10bar oil: 0-7bar | |||||||||
Sealing Material | NBR: fluid temperature <80°C EPDM: d temperature<120°C VITON: fluid temperature<150°C |
