60kPa 3mm Dia Digital Gas Pressure Gauge Sanitary Diaphragm AFK

  • 60kPa 3mm Dia Digital Gas Pressure Gauge Sanitary Diaphragm AFK
  • 60kPa 3mm Dia Digital Gas Pressure Gauge Sanitary Diaphragm AFK
Place of Origin China
Brand Name AFK
Certification CE
Model Number YTP-63HF6
Minimum Order Quantity 1~10
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 15
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 2.5%,1.0 Material Stainless Steel
Product Name Digital Pressure Gauge Size 2.5"(63mm)
Diameter 63mm，98mm Name Differential Pressure Gauge
High Light

63mm Dia Digital Gas Pressure Gauge

,

60kPa Digital Gas Pressure Gauge

,

AFK Diaphragm SS Pressure Gauge
Leave a Message
Product Description

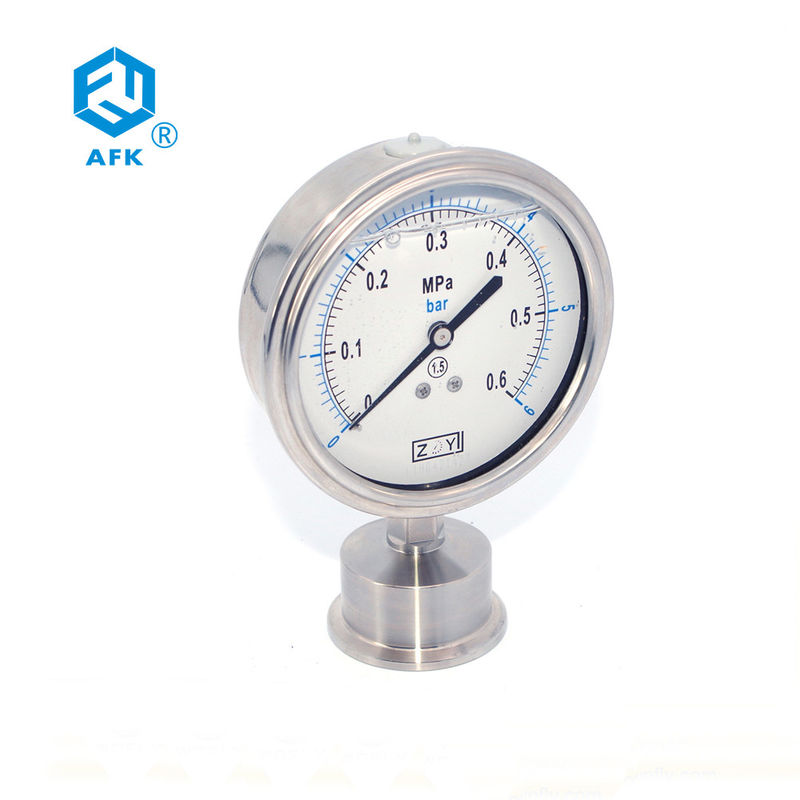

Sanitary Diaphragm Pressure Gauge

Media doesn't directly contact instrument's measuring system, diaphragm seal doesn't raise a dead corner or area where residue may be left. Be used for sanitary applications.



Product Feature

* Diameter :￠63 mm, ￠98 mm

* Stainless steel case and internals

* Accuracy:1%, 1.5%, 2.5%

* Liquid-filled as option with Type plus " N"



Pressure gauge
Selection table
model Dial size ambient temperature pressure accuracy
YTP 63mm,98mm - - 1%,1.5%,2.5%
YTN 40mm,50mm,63mm,100mm,150mm “-40℃-70℃” 0~0.1Mpa-100Mpa 1%,1.5%,2.5%
YTF
YEF 65mm,100mm,160mm - 0.25~60kPa 1.5%,2.5%
YE 100mm,160mm - 0.25~60kPa 1.5%,2.5%
YXG 100mm,160mm - - 1%,1.5%
YTQ 63mm,100mm,160mm - “-0.1~160Mpa” 1%,1.5%
YTX 160mm “-20℃-±80℃” -
YXC 63mm,100mm - “-0.1~160Mpa” 1%,1.5%
YC 100mm - 0.16~60Mpa 1.50%
