Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R11
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 20Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC
After-sales Service Provided: |
Online Support |
Condition: |
New |
Weight: |
2.5KG |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Color: |
Silver |
Pressure: |
3000, 500psig |
CV: |
0.08 |
After-sales Service Provided: |
Online Support |
Condition: |
New |
Weight: |
2.5KG |
Material: |
Stainless Steel,316 |
Warranty: |
1 Year |
Application: |
Industry Equipment |
Color: |
Silver |
Pressure: |
3000, 500psig |
CV: |
0.08 |
Features of pressure reducer
The following factors need to be paid attention to when selecting the pressure reducer. Follow up your specific use requirements and use this catalog to select the pressure reducer that matches your parameters. Our standard products are just the beginning of our service. We can modify or design the equipment to solve any problems in the application. For details, please contact our AFK foreign trade product sales representative.

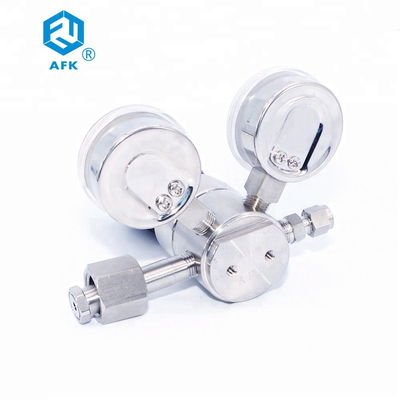

R11 Series stainless steel pressure regulator steel pressure regulator is Single-stage diaphragms, vacuum structure Stainless diaphragms output. It has piston pressure reducing structure, constant outlet pressure, mainly used for high input pressure, suitable for purified gas, standard gas, corrosive etc.
| Technical Data of argon helium gas regulator 250psi | ||
| 1 | Max inlet pressure | 500, 3000 psi |
| 2 | Outlet pressure | 0~25, 0~50, 0~100, 0~250, 0~500 psi |
| 3 | Proof pressure | 1.5 times of maximum rated pressure |
| 4 | Working temperature | -40°F-+165°F(-40°C-+74°C) |
| 5 | Leakage rate | 2*10-8 atm cc/sec He |
| 6 | Cv | 0.08 |
| Main Features of high pressure gas regulator | ||
| 1 | Single -stage reduce Structure | |
| 2 | Use hard-seal between body and diaphragm | |
| 3 | Body Thread | 1/4" NPT ( F ) |
| 4 | Easy to sweep inside body | |
| 5 | Filter mesh inside | |
| 6 | Panel mountable or wall mounted | |
| Typical applications | |
|
1
|
Laboratory
|
|
2
|
Gas Chromatograph
|
|
3
|
Gas Laser
|
|
4
|
Gas bus
|
|
5
|
Oil and chemical industry
|
|
6
|
Tested instrumentation
|
| Material | |
| 1 | Body:316L,brass |
|
2
|
Roof:316L,brass
|
|
3
|
Diaphragm:316L
|
|
4
|
Filter mesh:316L(10μm)
|
|
5
|
Valve seat:PCTFE,PTFE,Vespel
|
|
6
|
Spring loaded:316L
|
|
7
|
Valve disc regulation pole:316L
|
Ordering Information
| R11 | L | B | B | D | G | 00 | 02 | P |
| Item | Body Material | Body Hole | Inlet Pressure | Outlet Pressure |
Pressure Guage | Inlet size |
Outlet size |
Mark |
| R11 | L:316 | A | D:3000 psi | F:0-500psig | G:Mpa guage | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250psig | P:Psig/Bar Guage | 01:1/4″NPT(M) | 01:1/4″NPT(M) | R:With relief valve | |
| D | F:500 psi | K:0-50pisg | W:No guage | 23:CGGA330 | 10:1/8″ OD | N:Needle calve | ||
| G | L:0-25psig | 24:CGGA350 | 11:1/4″ OD | D:Diaphregm valve | ||||
| J | 27:CGGA580 | 12:3/8″ OD | ||||||
| M | 28:CGGA660 | 15:6mm OD | ||||||
| 30:CGGA590 | 16:8mm OD | |||||||
| 52:G5/8″-RH(F) | ||||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) |
