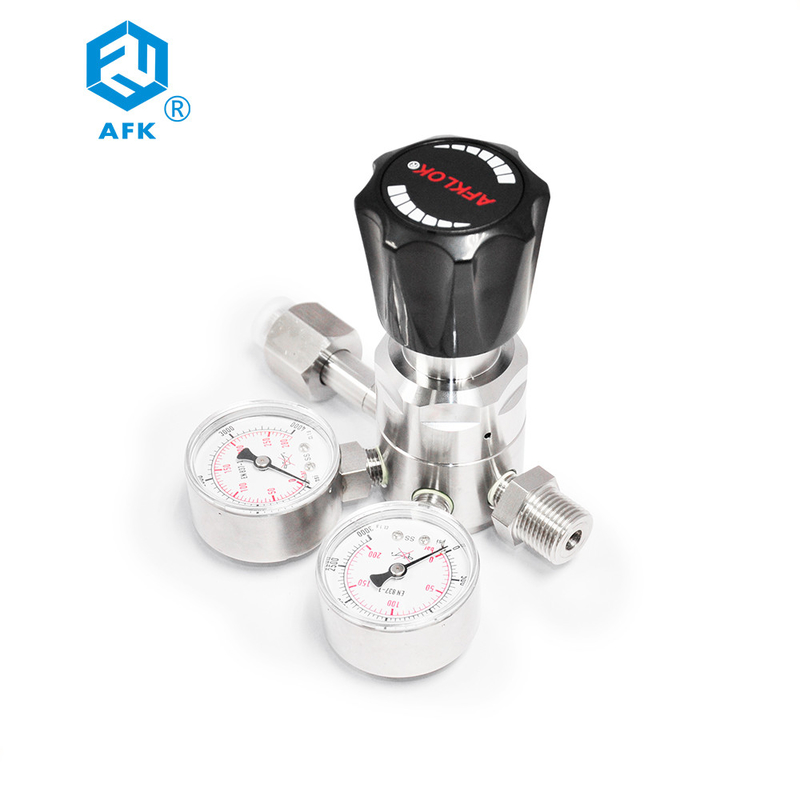

316L Stainless Steel Gas Regulator For Hydrogen Air Ammonia
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | 40F~+446F (-40C~+230C) | CV | 0.06 |
|---|---|---|---|
| Weight | 2 KG | Connection Type | 1/4 NPTF |
| Warranty | 1 Year | Outlet Pressure Range | 0~250,0~500,0~1500,0~3000psig |
| Material | Stainless Steel 316L | Internal Flow Rate | ≤1×10-7 Mbar L/s |
| Maximum Inlet Pressure | 3000,6000psig | ||
| High Light | 316l stainless steel gas regulator,hydrogen stainless steel gas regulator,316l ss regulator |
||
Product Description
Product Description:
Our Stainless Steel Pressure Regulator is a air pressure regulators manufacturer offering a Cv0.06 air pressure regulators with air pressure regulators option. It is a reliable and high-performance product that is constructed with premium quality stainless steel 316L material to ensure superior durability and performance. It also has a weight of 1 KG and features a 1/4 NPTF connection type. Moreover, this pressure regulator is designed to offer an external flow rate of ≤1×10-9 Mbar L/s and an internal flow rate of ≤1×10-7 Mbar L/s. It is an ideal choice for various industrial applications.
Features:
- Product Name: Stainless Steel Pressure Regulator
- Weight: 1 KG
- Working Temperature: -40℃～+74℃(-40℉～+165℉)
- Max Inlet Pressure: 3000,6000psig
- External Flow Rate: ≤1×10-9 Mbar L/s
- Material: Stainless Steel 316L
- single stage special gas high pressure
- 1/4NPTF hydrogen pressure regulator
- air pressure regulators
Technical Parameters:
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| Connection Type | 1/4 NPTF |
| Outlet Pressure Range | 0~250,0~500,0~1500,0~3000psig |
| CV | 0.06 |
| Internal Flow Rate | ≤1×10-7 Mbar L/s |
| External Flow Rate | ≤1×10-9 Mbar L/s |
| Working Temperature | 40F~+446F (-40C~+230C) |
| Weight | 2 KG |
| Max Inlet Pressure | 3000,6000psig |
| Material | Stainless Steel 316L |
| OME ODM | hydrogen pressure regulator 1/4 NPT |
| Quality | single stage special gas high pressure |
| Material | Stainless Steel pressure regulator |
Applications:
1. Laboratory and Research Facilities: NO2 gas pressure regulators are often employed in laboratories and research facilities where NO2 gas is used for analytical purposes, such as gas chromatography, spectroscopy, and chemical reactions. The pressure regulator ensures a stable and controlled flow of NO2 gas during experiments.
2. Industrial Processes: NO2 is used in several industrial processes, including chemical manufacturing, metal refining, and wastewater treatment. Gas pressure regulators are employed to maintain the desired pressure levels for safe and efficient operation of these processes.
3. Semiconductor Industry: The semiconductor industry often employs NO2 in various processes, such as etching and cleaning of semiconductor materials. Gas pressure regulators play a critical role in maintaining precise pressure levels during these processes to ensure the desired results and prevent damage to the materials.
Packing and Shipping:
Packaging and Shipping
Stainless Steel Pressure Regulators are packaged for safe delivery and shipped to the customer's location. The product is packaged in a box with appropriate cushioning material and secured for safe delivery. The box is sealed with a plastic wrap and labeled with shipping information. The product is shipped using a reliable carrier and tracking information is provided to the customer.
FAQ:
- Q: What is the brand name for this stainless steel pressure regulator?
- A: The brand name for this stainless steel pressure regulator is AFKLOK.
- Q: What is the model number of the regulator?
- A: The model number of the regulator is R41.
- Q: Where is this product made?
- A: This product is made in China.
- Q: Does this stainless steel pressure regulator have a certification?
- A: Yes, this stainless steel pressure regulator has a CE certification.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 1.
