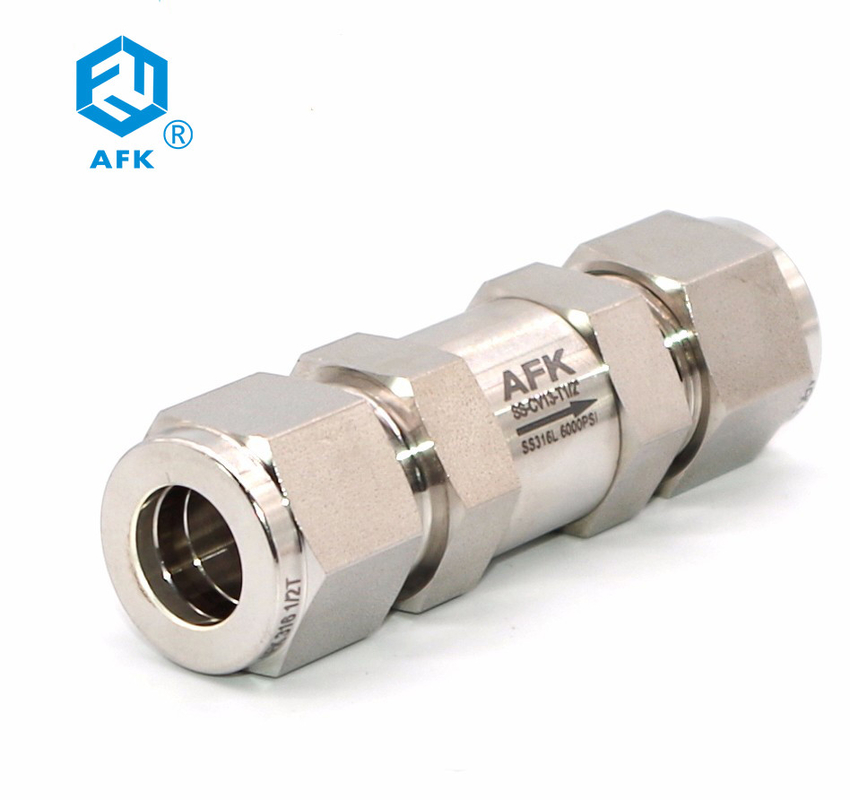

6000psi Instrument Check Valve AFK Ferrule Stainless Steel BSPT NPT
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | General | Material | Stainless Steel |
|---|---|---|---|
| Pressure | High Pressure | Media | Air |
| Standard Or Nonstandard | Standard | Warranty | 1 Year |
| Size | 1/8in，1/4in，3/8in，1/2in | ||
| High Light | 6000psi Instrument Check Valve,AFK Ferrule Instrument Check Valve,BSPT NPT Stainless Steel Check Valve |
||
Product Description
Product features
1) Working pressure 3000-6000PSI
2) Working temperature: 2500F(121℃), using buna.
3) Min flow capacity limited
4) Closed quickly at reverse flow direction.
5) 100% factory test.
6) Locking up pressure according to customer’s demands.
7) To purity the clean system
8) Applying to gas or liquid
Dimensions(inch)
| Name | Size | A-PT/NPT/G | B-PT/NPT/G | C-(mm) | D(mm) |
| CV-01 | 1/8″ | 1/8″ | 1/8″ | 19 | 74 |
| CV-02 | 1/4″ | 1/4″ | 1/4″ | 19 | 74 |
| CV-03 | 3/8″ | 3/8″ | 3/8″ | 22 | 74 |
| CV-04 | 1/2″ | 1/2″ | 1/2″ | 27 | 75.5 |
| CV-06 | 3/4″ | 3/4″ | 3/4″ | 35 | 83.5 |
| CV-8 | 1″ | 1″ | 1″ | 41 | 87.5 |
Characteristics
| 1 | End connections avail be with AFK tube end,BSPT or NPT female & male thread for option |
| 2 | Variable fixed cracking press re springs, range from 1 to 25psig ±5% |
| 3 | O-ring ensures leak proof shut off |
| 4 | Back stopped poppet minimizes spring stress |
Features of Check Valve
| 1 | Inline check valve stops reversed flow in order to protect instrumentation |
| 2 | Body material in Stainless Steel SS316/316L Cold drawn bar |
| 3 | Max. allowed working pressure 3000psig (206 bar) |
| 4 | With Viton O-ring • 100% factory tested |
Material of Construction--2 Way Check Valve
| Item | Part Description | Qty. | Material |
| 1 | Inlet Body | 1 | SS316/316L |
| 2 | Outlet Body | 1 | SS316/316L |
| 3 | Seal Ring | 1 | Viton |
| 4 | Poppet | 1 | SS316/316L |
| 5 | Spring | 1 | SS306 |
