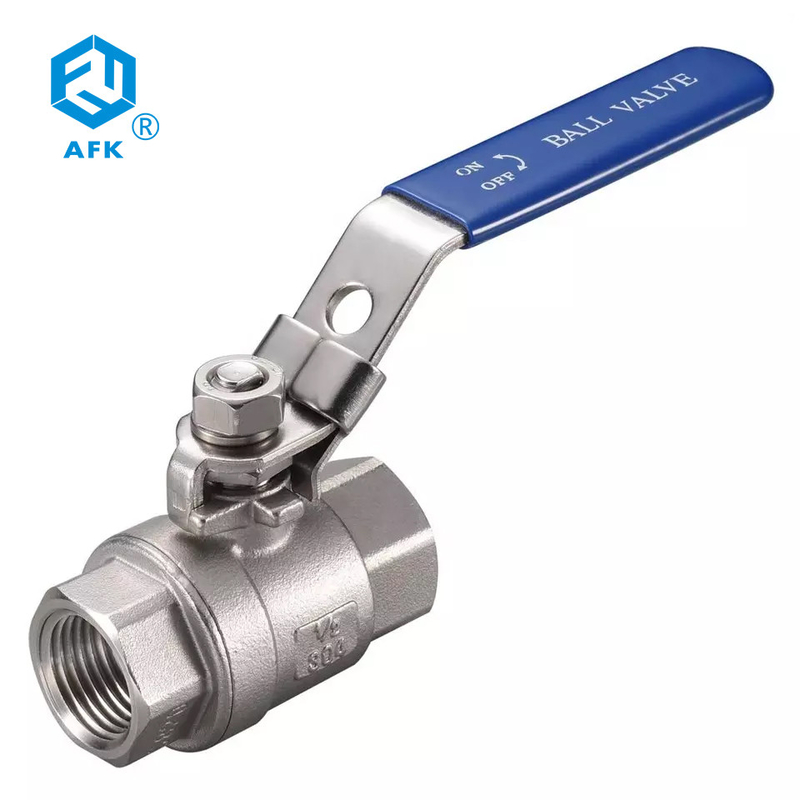

304 316 Stainless Steel Ball Valves Female Thread Ball Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel,SS304 | Structure | Ball |
|---|---|---|---|
| Port Size | 1/4 " | Pressure | Low Pressure |
| Power | Manual | Standard Or Nonstandard | Standard |
| Media | Base | Body Material | 304,Stainless Steel |
| Connection | Threaded | Valve Type | 2 Way |
| High Light | 316 Stainless Steel Ball Valves,304 Stainless Steel Ball Valves,Stainless Steel Female Thread Ball Valve |
||
Product Description
Product description of 304 316 Stainless Steel Ball Valves Female Thread Ball Valve
| Materials of Main Construction | ||
| 1 | Cap 阀盖 | CF8M CF8 WC8 |
| 2 | Body Gasket 垫圈 | PTFE |
| 3 | Seal Seat 阀座 | PTFE R-PTFE |
| 4 | Ball 球阀 | SS316 SS304 |
| 5 | Body 阀体 | CF8M CF8 WC8 |
| 6 | Thrust Washer 垫圈 | PTFE |
| 7 | Stem Packing 填料密封 | PTFE |
| 8 | Gland nut 止动螺母 | SS304 |
| 9 | Stem 阀杆 | SS316 SS304 |
| 10 | Handle 手柄 | SS201 |
| 11 | Spring Washer 弹簧垫圈 | SS304 |
| 12 | Stem Nut 阀杆螺母 | SS304 |
| 13 | Locking Device 锁定装置 | SS201 |
|
|
| Size | φd | L | H | W | C | Torque N.m | End |
| 1/4″ | 10.5 | 58 | 58 | 100 | 11 | 4 | BSPP BSPT NPT DIN… |
| 3/8″ | 10.5 | 58 | 58 | 100 | 12 | 4 | |
| 1/2″ | 15 | 65 | 62.5 | 120 | 13.5 | 5 | |
| 3/4″ | 20 | 73 | 67 | 135 | 14.5 | 7 | |
| 1″ | 25 | 82 | 80.5 | 160 | 17.5 | 9 | |
| 1-1/4″ | 32 | 92 | 85.5 | 160 | 19 | 16 | |
| 1-1/2″ | 38 | 109 | 102 | 180 | 21 | 23 | |
| 2″ | 48 | 122 | 110 | 180 | 23 | 26 |
Application
Commonly used in the laboratory industry and in pneumatic systems for semiconductors, the following scenarios are applicable to the projects we work on, and we take corresponding scenarios for each project.
|
|
|
|
FAQ
Q1. What is your terms of packing?
A: Export standard.
Q2. What is your terms of payment?
A: T/T ,PayPal, Western Union.
Q3. What is your terms of delivery?
A: EXW.
Q4. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
