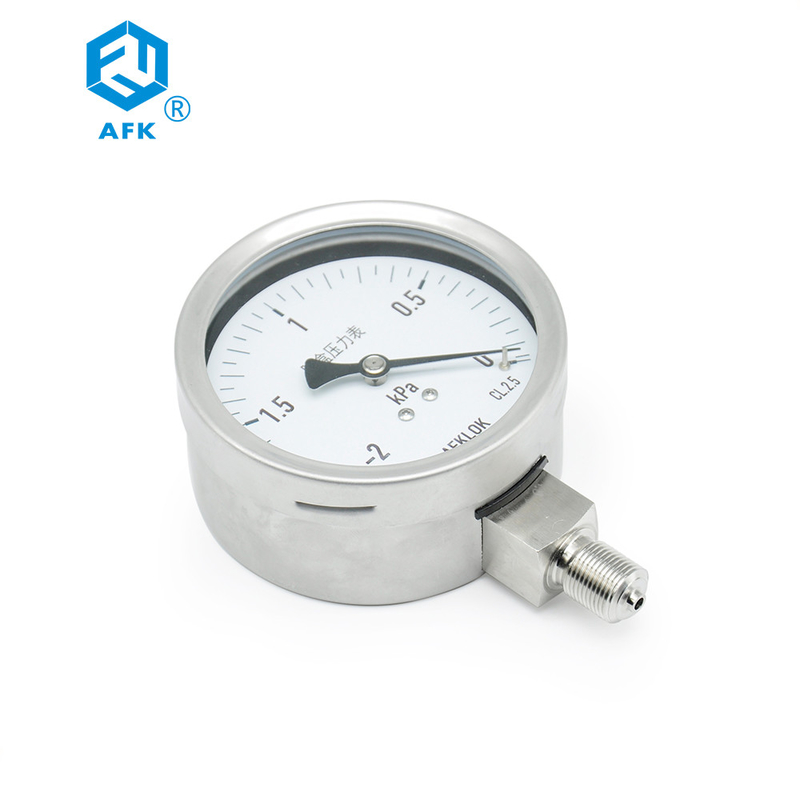

Diaphragm Box Stainless Steel Pressure Gauge Low Pressure For Argon Gas
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPressure Range | -2 To 0 Kpa | Accuracy | 1.6% |
---|---|---|---|
Material | Stainless Steel | Product Name | Diaphragm Box Stainless Steel Argon Gas Low Pressure Gauge |
Size | G3/8 | Connection | Stainless Steel |
Dial Size | 100mm | Color | Silver |
High Light | Diaphragm Box Stainless Steel Pressure Gauge,Argon Gas Stainless Steel Pressure Gauge,100mm Low Pressure Gauge |
Product Description of Diaphragm Box Stainless Steel Argon Gas Low Pressure Gauge Manufacturer
Features of common membrane box pressure gauge
- Compact design: Membrane box pressure gauges are typically smaller and more compact than other types of pressure gauges, making them ideal for applications where space is limited.
- Low pressure range: These gauges are designed to measure low pressures, typically up to 6,000 PSI or less.
- Stainless steel construction: The housing of membrane box pressure gauges is typically made of stainless steel, which is durable and resistant to corrosion.
- Diaphragm or capsule: The pressure sensing element of these gauges is a thin, flexible diaphragm or capsule, which expands or contracts in response to changes in pressure.
- Accuracy: Membrane box pressure gauges are designed to provide accurate readings, typically with a range of ±1% or better.
- Adjustable pointer: Some membrane box pressure gauges have an adjustable pointer, which can be set to indicate a specific pressure or range of pressures.
- Vibration-resistant: The flexible diaphragm or capsule of these gauges is less susceptible to damage from vibration and shock than other types of pressure gauges.
- Weatherproof: Many membrane box pressure gauges are designed to be weatherproof, with a sealed housing that protects the gauge from moisture and dust.
- Easy-to-read dial: The dial on membrane box pressure gauges is typically large and easy to read, with clear markings and a contrasting background.
Specification of Diaphragm Box Stainless Steel Argon Gas Low Pressure Gauge Manufacturer
Main Technical Specifications | ||
1 | Case Size | 40,50,63,100,150mm |
2 | Accuracy | ±1%,±1.5%,±2.5% |
3 | Case Material | SUS304 |
4 | Range |
pressure :0~0.1MPA~100MPA vacuum:-0.1~0MPA |
5 | Compound | -0.1 |
6 | Bourdon Material | SUS316 |
7 | Internalss Material | SUS316 |
8 | Conncetion Material | SUS304,option,SUS316 |
9 | Connection | M20x1.5 or 1/2NPT |
10 | Dial | Aluminum,White with Black Marking |
11 | pointer | aluminum |
12 | Window | Plexi glass |
13 | Ambient Temperature | -40~70℃ |
14 | protection | IP55,IP65 |
15 | Ring Material | Stainless Steel |
Applications
Ltd. is a high-tech enterprise specializing in gas application system engineering: ultra-high purity electronic special gas system, laboratory gas system, bulk gas (liquid) system, industrial centralized gas supply system, special process gas secondary piping system, chemical delivery system, pure water system, providing technical consultation, overall planning, system design, selected equipment, prefabricated components, project site installation and construction, overall system The project covers semiconductor, integrated circuit, flat panel display, optoelectronic, automotive, new energy, nano, optical fiber, microelectronics, petrochemical, biomedical, various laboratories, research institutes, standard testing and other high-tech industries to provide customers with a full set of high-purity media delivery system solutions, and gradually become a leading industry We have become a leading system supplier in the industry.
