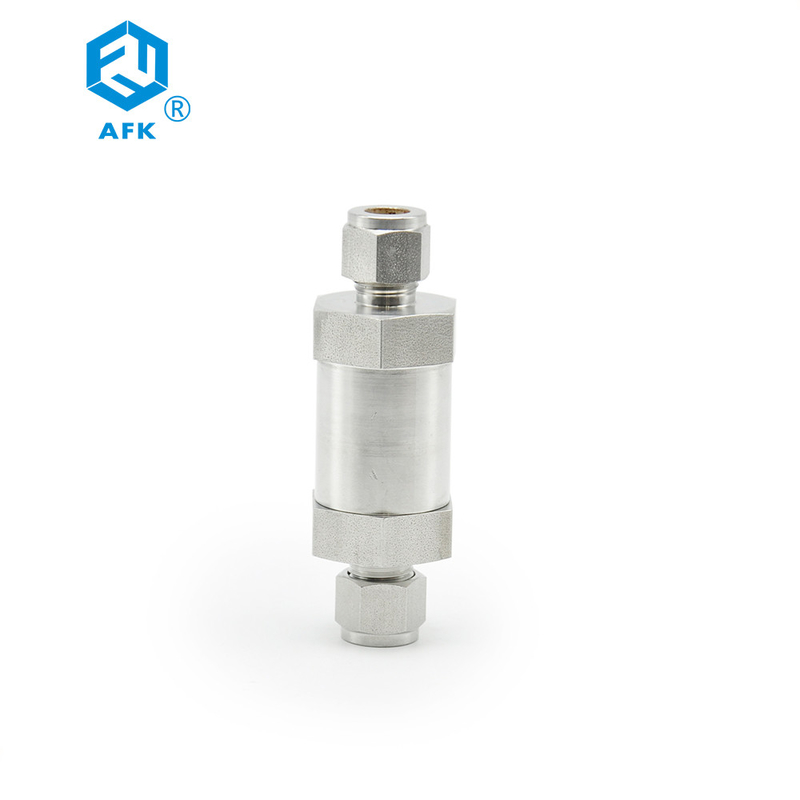

3000PSI Air Compressor Check Valve Stainless Steel High Pressure Adjustable Check Valves
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xColor | Silver | Package | Plastic Bag |
---|---|---|---|
Connection Type | OD | Application | Air Compressor |
Product Name | Air Compressor Check Valve | Weight | 0.1kg |
Working Temperature | -20-80℃ | ||
High Light | 3000PSI Air Compressor Check Valve,Adjustable Air Compressor Check Valve,High Pressure Adjustable Check Valves |
- End connections avail be with AFK tube end,BSPT or NPT female & male thread for option
- Variable fixed cracking press re springs, range from 1 to 25psig +5%
- O-ring ensures leak proof shut off
- Back stopped poppet minimizes spring stress
Features of stainless steel check valves
- Inline check valve stops reversed flow in order to protect instrumentation
- Body material in Stainless Steel SS316/316L Cold drawn bar·Max. allowed working pressure 3000psig (206 bar)
- With Viton O-ring
- 100% factory tested
Material of Construction of Stainless Steel Non Return Valves
Item | Part Description | Qty. | Material |
1 | Inlet Body | 1 | SS316/316L |
2 | Outlet Body | 1 | SS316/316L |
3 | Seal Ring | 1 | Fluoroelastomer |
4 | Poppet | 1 | SS316/316L |
5 | Spring | 1 | SS304 |
Nominal Cracking pressure | Nominal Cracking pressure |
1 | 401 |
10 | 7-15 |
25 | 20-30 |
Features of Instrumentation check valve:
- Product Name: Air Compressor Check Valve
- Weight: 0.1kg
- Working Temperature: -20-80℃
- Connection Type: OD
- Application: Air Compressor
- Color: Silver
- Material: 316L Stainless Steel
- Type: Inline Instrumentation Check Valve
- Pressure: 3000psi and 6000psi
- Size: 1/8in, 1/4in, 3/8in, 1/2in, 3/4in
Applications OF High-pressure instrumentation check valve:
The AFK CV air compressor check valve is a 316L stainless steel check valve specifically designed for use in industrial applications. It is certified CE and can withstand pressure up to 3000PSI and 6000PSI. It also features a silver-colored finish that is resistant to corrosion and wear. The AFK CV is available in packages of 1, with a supply capacity of up to 5,000 pieces. This air compressor check valve is the perfect solution for air compressor systems, ensuring optimal performance and durability.
Technical Parameters OF Inline instrumentation check valve:
Parameter | Value |
---|---|
Product Name | Air Compressor Check Valve |
Flow Rate | 1000L/min |
Application | Air Compressor |
Package | Plastic Bag |
Connection Type | OD |
Weight | 0.1 kg |
Color | Silver |
Working Temperature | -20-80℃ |
Pressure | 3000PSI 6000PSI |
Working Pressure | 3000PSI 6000PSI |
Material | 316L Stainless Steel |
Size | 1/8in 1/4in 3/8in 1/2in 3/4in |
ORDERING INFORMATION OF Non-Return Instrumentation Check Valve
C- | CV- | S6- | 04 | A- | 1# | |
CLASSIFICATION | PROUDUCT NAME | MATERIAL | SIZE (FRACTIONAL) | SIZE (METRIC) | CONNECTION TYPE | CRACKING PRESSURE |
VALVE | CHECK VALVE | S6 :SS316 | 02:1/8" | 6 :6mm | A:AFK TUBE END | 1# : 1PSIG |
S6L: SS316L | 04:1/4" | 8 : 8mm | MR:MALE BSPT THREAD | 10# : 10PSIG | ||
06:3/8 | 10 :10mm | FR:FEMALE BSPT THREAD | 25#:25PSIG | |||
08:1/2" | 12 :12mm | MN:MALE NPT THREAD | ||||
12:3/4" | FN:FEMALE NPT THREAD | |||||
16:1" |
Type | Conn./Size | Orifice | Dimensions (mm) | ||||
Inlet/outlet | mm | in. | A | B | C | ||
AFK TUBE END | Metric | 6mm | 5 | 0.19 | 65.1 | 19 | 9/19 |
8mm | 5 | 0.19 | 67.7 | 19 | 5/8 | ||
10mm | 5 | 0.19 | 70.3 | 19 | 19 | ||
12mm | 10 | 0.39 | 87.8 | 22 | 7/8 | ||
Fractional | 1/8" | 2.5 | 0.10 | 61.8 | 19 | 7/16 | |
1/4" | 5 | 0.19 | 65.7 | 19 | 9/16 | ||
3/8" | 5 | 0.19 | 70.0 | 19 | 7/8 | ||
1/2" | 10 | 0.39 | 88.2 | 22 | 1-1/8 | ||
3/4" | 11 | 0.43 | 98.9 | 32 | 1-1/2 | ||
1" | 12 | 0.47 | 109.8 | 35 | - | ||
MALE THREAD | Fractional | 1/4" | 5 | 0.19 | 54.5 | 19 | - |
3/8" | 10 | 0.39 | 69.0 | 22 | - | ||
1/2" | 10 | 0.39 | 73.8 | 22 | - | ||
FEMALE THREAD | Fractional | 1/8" | 5 | 0.19 | 56.0 | 19 | - |
1/4" | 5 | 0.19 | 56.0 | 19 | - | ||
3/8" | 10 | 0.39 | 69.0 | 22 | - | ||
1/2" | 11 | 0.43 | 81.0 | 32 | - | ||
3/4" | 11 | 0.43 | 85.0 | 32 | - |
FAQ:
Q1: What is the brand name of Air Compressor Check Valve?
A1: The brand name of Air Compressor Check Valve is AFK.
Q2: What is the model number of Air Compressor Check Valve?
A2: The model number of Air Compressor Check Valve is CV.
Q3: Where is Air Compressor Check Valve made?
A3: Air Compressor Check Valve is made in Chain.
Q4: Is the Air Compressor Check Valve certified?
A4: Yes, the Air Compressor Check Valve is certified with CE.
Q5: What is the minimum order quantity of Air Compressor Check Valve?
A5: The minimum order quantity of Air Compressor Check Valve is 1, and the supply ability is 5000.
