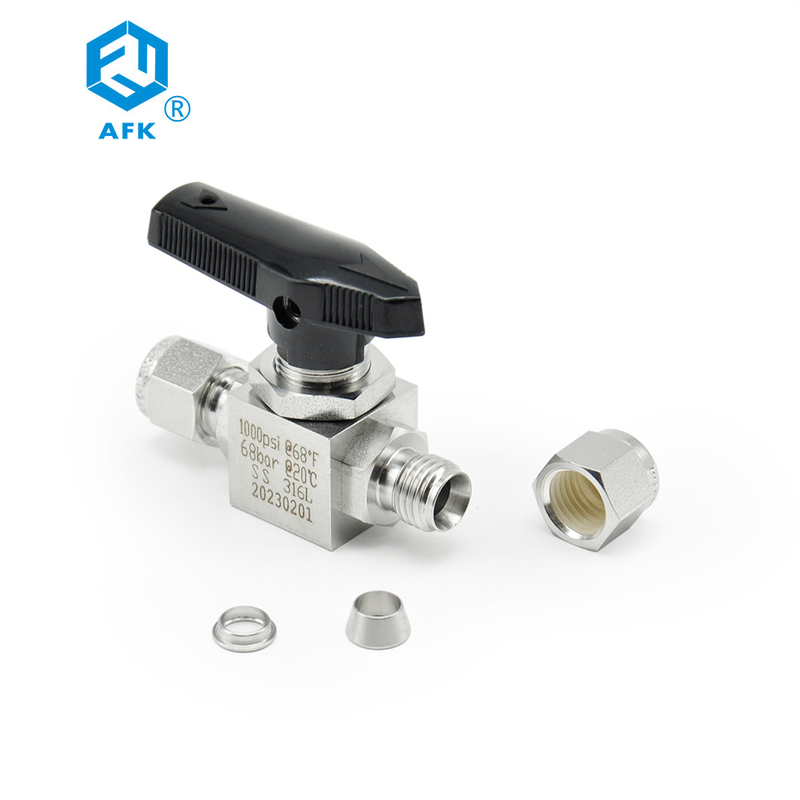

2 Way Stainless Steel Ball Valve Medium Temperature Hydraulic Ball Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Stainless Steel | Structure | Ball |
---|---|---|---|
Port Size | 1/8" 1/4" 3/8" 1/2" | Pressure | Low Pressure |
Temperature Of Media | Medium Temperature | Power | Manual |
Standard Or Nonstandard | Standard | Media | Gas |
Product Name | Hydraulic Ball Valve | Color | Silver |
Valve Type | 2 Way | ||
High Light | 2 Way Stainless Steel Ball Valve,Hydraulic Ball Valve OEM,Medium Temperature Hydraulic Ball Valve |
Gas service instrument ball valves are designed to provide safe and reliable control of gas flow in a variety of applications, such as natural gas, propane, or other gases. Their features are tailored to the specific requirements of gas service, such as gas-tight sealing, fire safety, and anti-static design, to ensure the safety and efficiency of gas flow control.
Characteristics of Stainless steel instrument ball valve
- Material: Stainless steel instrument ball valves are made of high-quality stainless steel, which makes them highly resistant to corrosion and rust.
- Design: These valves have a compact design and are easy to install. They are available in a range of sizes and configurations, including 2-way and 3-way designs.
- Pressure rating: Stainless steel instrument ball valves are designed to withstand high-pressure environments. They typically have a pressure rating of up to 3000 PSI.
- Temperature range: These valves can operate within a wide temperature range, from -20°F to 450°F depending on the specific type of stainless steel used.
- Ball type: The ball inside the valve is typically made of stainless steel and is designed to rotate 90 degrees to allow or block the flow of fluid.
- Sealing: The valve has a tight sealing mechanism that prevents leaks and ensures a reliable flow of fluid.
- Corrosion resistance: Stainless steel instrument ball valves are highly resistant to corrosion, which makes them ideal for use in harsh environments or when handling corrosive fluids.
- Durability: These valves are built to last and can withstand frequent use and wear and tear.
Features of Gas service instrument ball valve
- On/off service ball valve with 2 way pattern
- Diverter service ball valve with 3 way pattern
- Body material in Stainless Steel SS316/316L
- Max. allowed working pressure: 50kg, 3000psig,6000psig
- With Viton O-ring
- 100% factory tested
Material of Construction of Instrument ball valve
Item | Part Description | Qty. | Material |
1 | Handle | 1 | Nylon |
2 | Handle Set Screw | 1 | Chrome-Plated Steel |
3 | Stem | 1 | SS316/316L |
4 | Packing Bolt | 1 | SS316/316L |
5 | Gland Packing | 2 | TFM1600 |
6 | Stem O-ring | 1 | Fluoroelastomer |
7 | Panel Nut | 1 | Ss304 |
8 | Body | 1 | CF8M |
9 | Ball | 1 | SS316/316L |
10 | Seat | 2 | TFM1600 |
11 | Body O-ring | 2 | Fluoroelastomer |
12 | End Cap | 2 | SS316/316L |
Ordering Information of Stainless steel ball valve
C- | 3 | BVL- | S6- | 02 | A- | SK | |
CLASSIFICA TION |
PRODUCT TYPE | VALVE TYPE | MATERIAL | SIZE(FRACTIONAL) | SIZE(METRIC) | CONNECTION TYPE | MAX.WORKING PRESSURE |
C:VALVE | 3:3PC | BVL:CASTIG BALL VALVE | S6 :SS316 | 02:1/8 | 6:6mm | A:AFK TUBE END | 5K:50kg |
04:1/4 | 8:8mm | MR:MALE BSPT THREAD | |||||
06:3/8 | 10:10mm | FR:FEMALEBSPTTHREAD | |||||
08:1/2 | 12:12mm | MN:MALE NPT THREAD | |||||
012:3/4 | FN:FEMALE NPT THREAD | ||||||
14:14mm | |||||||
16:16mm | |||||||
18:18mm | |||||||
20:20mm | |||||||
22:22mm |
Type | Conn./Size | Orifice | Dimensions(mm) | |||||||||
Inlet/Outlet | Inlet/Outlet | A | B | C | D | E | F | PanelHole Size | Max PanelThickness | |||
AFK TUBE END | Fractional | 1/8" | 5.0 | 0.19 | 63.8 | 31.9 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
1/4" | 5.0 | 0.19 | 67.6 | 33.8 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
3/8" | 7.0 | 0.27 | 73.4 | 36.7 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
1/2" | 9.2 | 0.36 | 80.2 | 42.1 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
3/4" | 12.0 | 0.47 | 87.7 | 43.9 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
Metric | 6mm | 5.0 | 0.19 | 67.0 | 33.5 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | |
8mm | 5.0 | 0.19 | 69.6 | 34.8 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
10mm | 7.0 | 0.27 | 73.8 | 36.9 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
12mm | 9.2 | 0.36 | 79.8 | 39.9 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
14mm | 9.2 | 0.36 | 86.2 | 43.1 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
15mm | 9.2 | 0.36 | 86.5 | 43.2 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
16mm | 9.2 | 0.36 | 86.8 | 43.4 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
18mm | 12.0 | 0.47 | 87.8 | 43.9 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
20mm | 12.0 | 0.47 | 85.0 | 42.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
22mm | 12.0 | 0.47 | 85.6 | 42.8 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
MALE THREAD | Fractional | 1/8" | 5.0 | 0.19 | 52.0 | 26.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
1/4" | 5.0 | 0.19 | 58.0 | 29.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
3/8" | 7.0 | 0.27 | 62.0 | 31.0 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
1/2" | 9.2 | 0.36 | 74.4 | 37.2 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
3/4" | 12.0 | 0.47 | 81.0 | 40.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
FEMALE THREAD | Fractional | 1/8” | 5.0 | 0.19 | 45.0 | 22.5 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
1/4” | 5.0 | 0.19 | 52.0 | 26.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
3/8" | 7.0 | 0.27 | 57.0 | 28.5 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
1/2" | 9.2 | 0.36 | 65.4 | 32.7 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
3/4" | 12.0 | 0.47 | 73.0 | 36.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 |
