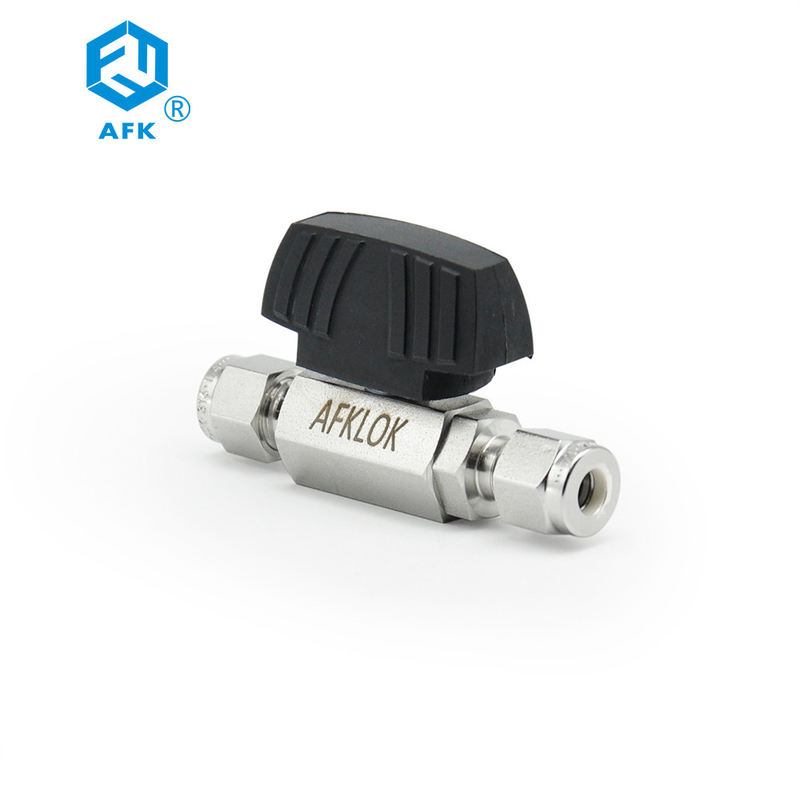

2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm

  • 2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm
  • 2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm
  • 2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm
  • 2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm
Place of Origin Chain
Brand Name AFKLOK
Certification CE
Model Number BV
Minimum Order Quantity 1
Price Negotiable
Packaging Details General packaging
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel Structure Ball
Port Size 4mm-12mm Pressure Low Pressure
Temperature Of Media Normal Temperature Power Manual
Standard Or Nonstandard Standard Media Gas
Application General,Oil,Chemical Etc,Food,SGS Product Name 3 Way Ball Valve
Size 4mm-12mm Color Silver
Connection Ferrule Valve Type 2 Way
High Light

Hex Bar Stainless Steel Ball Valve

,

Dielectric Handle Stainless Steel Ball Valve
Leave a Message
Product Description

Features of Hex Bar Ball Valve
Two pieces cold drawn bar body

Body material in Stainless Steel SS316/316L

Max. allowed working pressure 1000psig (69 bar)

With Viton O-ring and PTFE packing
100% factory tested

2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm 0

Material of Construction Stainless Steel 2 Way Ball Valve

tem Part Description Qty. Material 2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm 1
1 Handle 1 Nylon
2 Locking Nut 1 SS304
3 Spring Washer 1 SS304
4 Washer 2 SS304
5 Gland Packing 2 PTFE
6 Stem 1 SS316/316L
7 Body 1 SS316/316L
8 Ball 1 SS316/316L
9 Seat 2 PTFE
10 Body O-ring 1 Fluoroelastomer
11 End Cap 1 SS316/316L



Ordering Information of Black Dielectric Handle Ball Valve

C- 2 BV- S6- 02   A- 1P
Classification Product Type Valve Type Material Size(Fractional) Size(Metric) Connection Type MAX.Working Pressure
C:Valve 2:2PC BV:2-way Ball Valve S6:SS316 04:1/4" 6:6mm A:AFK Tube END 1P:1000P SIG
      S6L:SS316L 06:3/8" 8:8mm MR:Male BSPT Thread
        08:1/2" 10:10mm MN:Male NPT Thread
        012:3/4" 12:12mm
          18:18mm

2 Way Hex Bar Stainless Steel Ball Valve Black Dielectric Handle 4mm - 12mm 2

Type Conn./Size Orifice Dimensions(mm)
In.Inlet/Outlet mm In. A B C D
AFK Tube END Fractional 1/4" 5.0 0.19 72.9 41.0 31.4 8.5
3/8" 7.0 0.27 78.2 41.0 33.1 9.5
1/2: 9.0 0.35 90.5 50.0 41.3 13.5
3/4" 12.5 0.49 108.9 58.5 48.5 16.0
Metric 6mm 5.0 0.19 72.6 41.0 31.4 8.5
8mm 5.0 0.19 74.5 41.0 31.4 8.5
10mm 7.0 0.27 78.5 41.0 33.1 9.5
12mm 9.0 0.35 90.1 50.0 41.3 13.5
18mm 12.5 0.49 108.9 58.5 48.5 16.0
Male BSPT Thread Fractional 1/4" 5.0 0.19 72.9 41.0 31.4 8.5
Male NPT Thread Fractional 1/4" 5.0 0.19 72.9 41.0 31.4 8.5



Some common applications of hexagonal ferrule ball valves include:

Hexagonal ferrule ball valves are commonly used in applications where a secure and leak-free connection is required between the valve and the pipeline. The hexagonal shape of the ferrule fitting provides a tight grip on the pipeline, ensuring that the valve does not become loose or leak over time.

  • Food and beverage processing: Hexagonal ferrule ball valves are often used in the food and beverage industry due to their hygienic design and ability to withstand corrosive chemicals and high temperatures.
  • Pharmaceutical manufacturing: Similar to the food and beverage industry, the pharmaceutical industry requires hygienic and leak-free valves to maintain the integrity of their products. Hexagonal ferrule ball valves are often used in pharmaceutical manufacturing for this reason.
  • Chemical processing: Hexagonal ferrule ball valves are able to withstand a wide range of corrosive chemicals, making them well-suited for use in chemical processing applications.
  • Oil and gas production: In the oil and gas industry, hexagonal ferrule ball valves are used to control the flow of fluids and gases in pipelines and other systems.
  • Water and wastewater treatment: Hexagonal ferrule ball valves are often used in water and wastewater treatment applications due to their ability to withstand harsh chemicals and high temperatures.

Overall, hexagonal ferrule ball valves are a versatile and reliable option for a wide range of industrial applications where a secure and leak-free connection is required.
