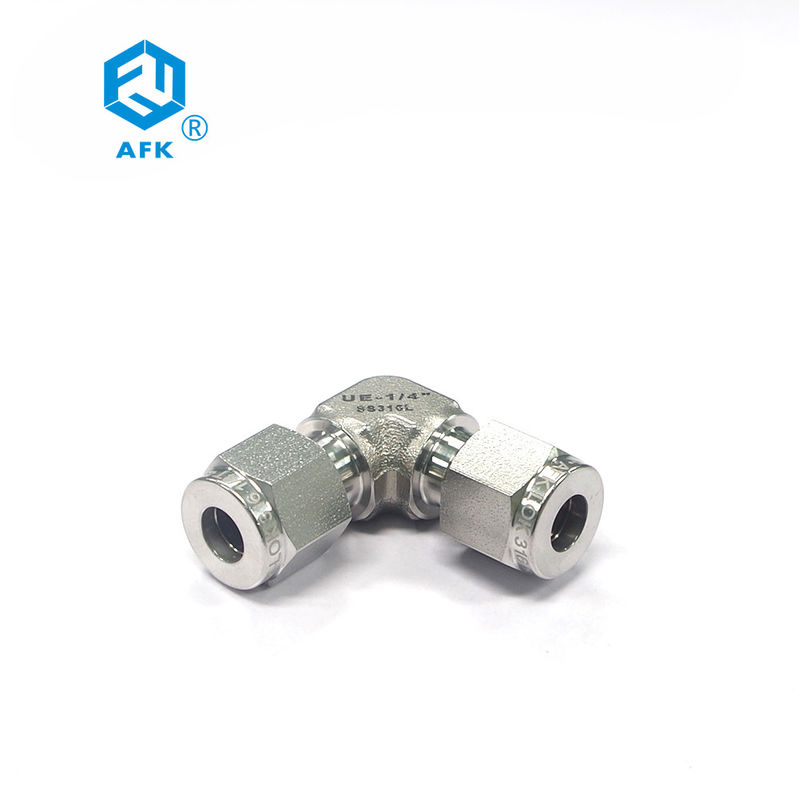

Equal 90 Degree 206bar 3000psig Stainless Steel Union Elbow

  • Equal 90 Degree 206bar 3000psig Stainless Steel Union Elbow
  • Equal 90 Degree 206bar 3000psig Stainless Steel Union Elbow
Place of Origin Guangdong, China
Brand Name AFK
Certification ISO CE
Model Number UE
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details Export packing
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2500 Piece/Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel 316 Connect Ferrule OD
Medium Gas Head Code Hexagon
Shape Equal Working Pressure 0-3000psi
Model Number UE
High Light

3000psig Stainless Steel Union Elbow

,

206bar Stainless Steel Union Elbow

,

Equal 90 Degree Tube Elbow
Leave a Message
Product Description

Specification:



Hi friend, welcome to our Alibaba store.



We have various of fittings for stainless steel tube(pipe), copper tube(pipe) and plastic tube(pipe). They can work in high pressure high temperature conditions. Usually, they are called tube fittings, pipe fittings, hydraulic fittings, compression fittings, connection fittings and so on.



You can choose any model as follows, or describe what shape, connection, size etc. you need.





Shape Instruction:

  • Straight union: like U, MC, TAF etc.
  • 90° elbow: like ME, UE, EBW, FE etc.
  • T(tee, 3 way): like MRT, MBT, UT, MT etc.
  • Cross(4 way): like UCR etc.



Connection Instruction:

  • Thread: NPT male thread, NPT female thread, BSPT male thread, BSPT female thread.
  • Ferrule: like U and UCR, it can be directly connected to tube or plastic hose.
  • Welded: like one end of ODSW.
  • Tube: like one end of TAM.



Feature:

  • All the fittings are used for gas or oil.
  • Highest pressure: 3000psi (206bar, 20.6MPa)
  • Very very low leak, can be negligible (zero leak).
  • Long service life
  • Warranty one year

Equal 90 Degree 206bar 3000psig Stainless Steel Union Elbow 0

Union Elbow (Metric)
Tube O.D. Catalog Number A D E F G H
3 UE-3-0 22.3 12.9 2 12 10 15.7
4 UE-4-0 25.4 13.7 3 12 12 18.8
6 UE-6-0 27.0 15.3 5 12 14 19.6
8 UE-3-0 28.8 16.2 6 14 17 21.3
10 UE-10-0 31.5 17.2 8 17 19 23.9
12 UE-12-0 36.0 22.8 10 22 22 25.9
14 UE-14-0 38.0 24.4 10 24 27 27.9
15 UE-15-0 38.8 24.4 11 24 27 27.9
16 UE-16-0 38.0 24.4 12 24 27 27.9
18 UE-18-0 39.8 24.4 14 27 30 29.7
20 UE-20-0 44.6 26.0 16 30 32 34.5
22 UE-22-0 44.6 26.0 18 30 32 34.5
25 UE-25-0 49.1 31.3 21 34 38 36.5

Fractional
1/16 UE-005-0 17.8 8.6 1 10 10 14.0
1/8 UE-01-0 22.4 12.7 3 12 12 15.8
3/16 UE-015-0 25.4 13.7 3 12 12 18.8
1/4 UE-02-0 27.0 15.2 5 12 14 19.6
3/8 UE-03-0 30.5 16.8 8 17 17 21.3
1/2 UE-04-0 36.0 22.8 10 22 22 23.1
5/8 UE-05-0 38.1 24.4 12 24 27 26.0
3/4 UE-06-0 40.0 24.4 15 27 30 29.7
1 UE-08-0 49.0 26.0 21 34 38 36.8



FAQ:



Q1. What products can you provide?

Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.



Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.

Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.

Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.

Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.

Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.

Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.

Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
