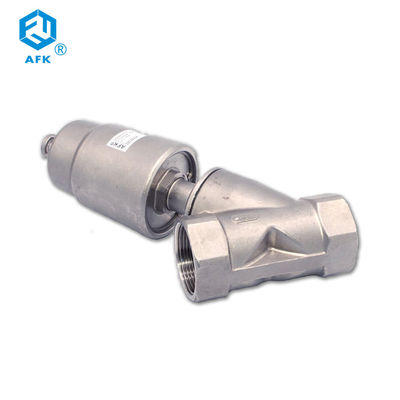

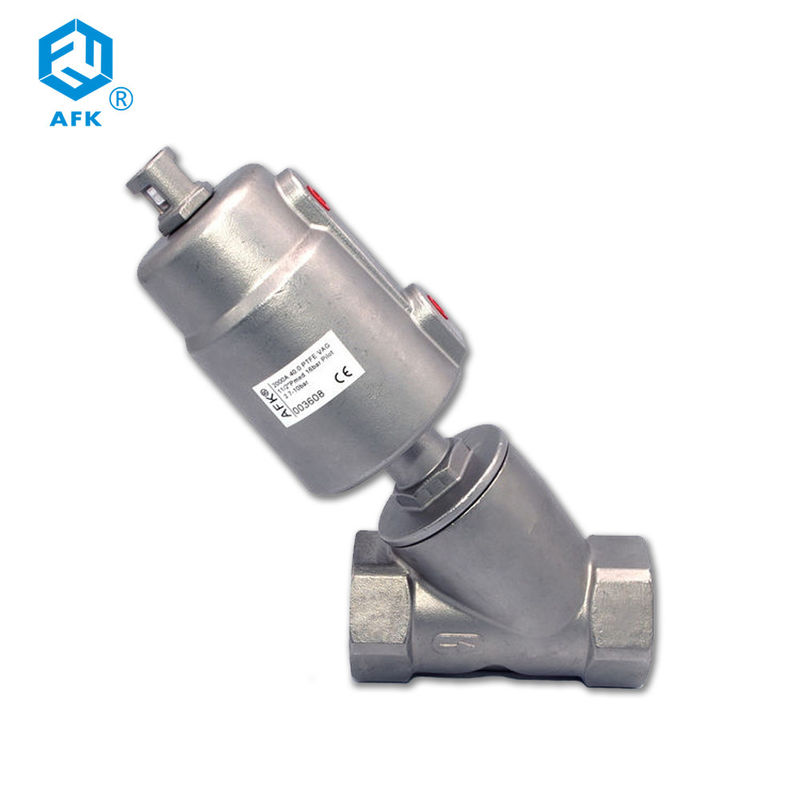

1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve

  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
  • 1.5 inch Stainless Steel Pneumatic Angle Valve Actuator Control Valve
Place of Origin China
Brand Name AFK
Certification CE
Model Number LCJ-12A
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel,SS316L Media Steam
Power Manual Port Size Standard
Temperature Of Media Medium Temperature Application General
Standard Or Nonstandard Standard Type Pneumatic
Size 1.5inch
High Light

Normally Closed Pneumatic Angle Seat Valve

,

1.5in Pneumatic Angle Seat Valve

,

SS Actuator Flow Control Valve
Leave a Message
Product Description



Product Descripation

Function Principle

Valve is closed (open) with spring force, when the piton is actuated by compressed air, valve is open (closed). For the double acting type, the valve is open and closed by compressed air.



Advantage

1)Large flux, low resistance, no water-hammer
2)Y-type shape enlarged to flowing section, which could raise the flux by 30% and make flow more smooth.
3)Super Long Life
4)Which help the stem adjust and lubricate itself automatically
5)The cylinder material is stainless steel. Lubricating automatically, 360° rolling freely.



Applications

1) Bear & Drinks Filling Machinery

2) Textile Printing & Dying

3) Gas Industry

4) Pharmacy & Medical Equipment

5) Chemical Industry

6) Disinfection

7) Frothing Equipment.

8) Water/ Sewage Disposal



Product parameters

Fluid Pressure Max. 1.6 Mpa (232psi)
Control Pressure 0.3 ~0.8 Mpa (43.5~116psi)
Control Medium Neutral gas or air
Body material CF8M/CF8
Seal Material PTFE
Actuator Material CF8
Actor Size 50mm, 63mm, 80mm, 100mm
Applicable Medium Water, Alcohol, Oil , Fuel, Steam, Neutral gas or liquid, Organic solvent, Acid and lye
Medium Viscosity Max 600 mm2/s
Medium Temperature -10℃-+180℃
Control Type Normally closed, normally open, double acting
Connection Threaded(BSP, NPT), Welded, Flanged, Tri-clamp
