Horizontal Mixed Gas Proportioning Cabinet High Precision Automatic Control 220V AC

  • Horizontal Mixed Gas Proportioning Cabinet High Precision Automatic Control 220V AC
  • Horizontal Mixed Gas Proportioning Cabinet High Precision Automatic Control 220V AC
Place of Origin China
Brand Name AFK
Certification CE
Model Number GMG
Minimum Order Quantity 1
Price Negotiable
Packaging Details Special packaging
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Railway, Ship, Chemical, Machinery Manufacturing Media Gas
MOQ 1 Set Control Pressure 0.4-2.2mpa
Proportioning Range 0-3% Proportioning Accuracy ± 0.1%
Output Pressure 0.4-1.8mpa Input Pressure 0.6-2.5mpa
Input Medium N2 Product Name Horizontal Mixed Gas Proportioning Cabinet
Weight About 200kg
High Light

Horizontal mixed gas proportioning cabinet

,

High Precision mixed gas proportioning cabinet

,

220V AC mixed gas proportioning cabinet
Leave a Message
Product Description

AFK Horizontal Mixed Gas Proportioning Cabinet High Precision Automatic Control of Multi-Component Gas Proportioning

Design features
This series of mixed gas proportioning cabinet is specially designed for large, medium and small flow, high-precision binary or multi-component gas proportioning. Input and output pressures can be adjusted and set by themselves, and automatic control can be realized. The digital display of proportioning content is more intuitive and the proportioning accuracy is higher. This series of gas proportioning cabinet has the characteristics of mixing accuracy of 0.5 ~ 1.5% and stable output. It can be widely used in various gas shielded welding and laser cutting occasions such as railway, ship, chemical industry and machinery manufacturing.

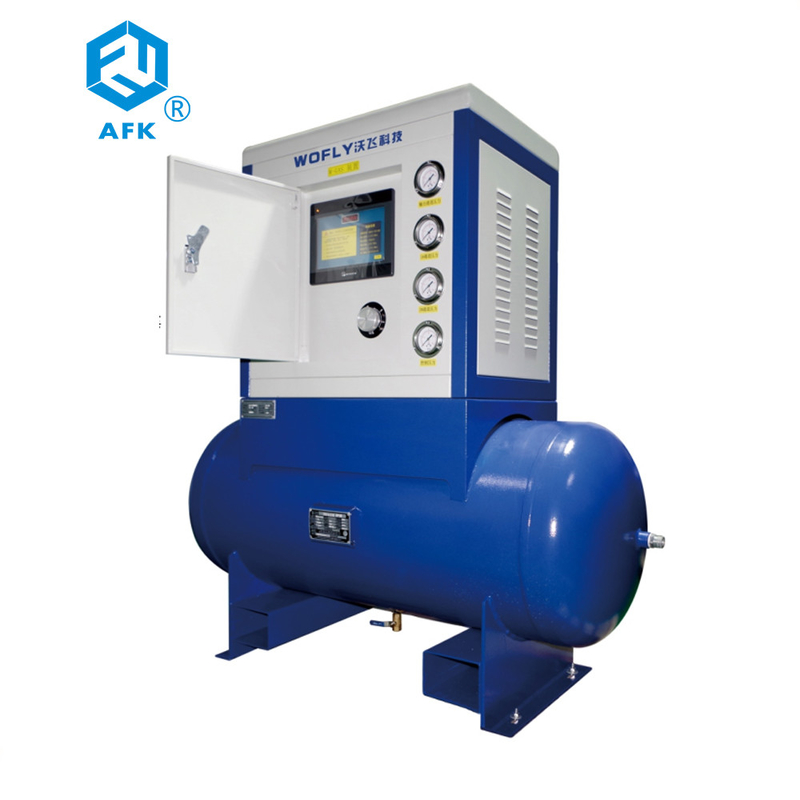

Horizontal Mixed Gas Proportioning Cabinet High Precision Automatic Control 220V AC 0

Structural features
1. Designed to provide large flow and high-precision binary gas ratio
2. Set alarm range for inlet pressure and outlet pressure
3. Digital display switch is adopted for output pressure regulation, which is convenient
and high precision
4. The proportioning mechanism is a pure mechanical part, which is safe and reliable
5. Fully enclosed metal shell, strong anti-interference
6. The electrical components are all products of well-known manufacturers, which are
safe and reliable
7. Rated voltage: 220VAC
8. Overall dimension: 1130mmx490mmx1336mm



Model Applicable gas Proportioning range Proportioning accuracy(%) Output flow(m³/h) Input pressure(MPa) Output pressure(MPa) Outlet connection size
WL8100A-1 Ar+CO2 0~30%CO2,rest Ar 0.5~1.5 50~300 0.6~1 0.2~0.6 G3/4”
WL8100A-2 Ar+O2 0~10%O2,rest Ar 0.5~1.5 50~300 0.6~1 0.2~0.6 G3/4”
WL8100A-3 Ar+N2 0~50%N2,rest Ar 0.5~1.5 50~300 0.6~1 0.2~0.6 G3/4”
WL8100A-4 CO2+N2 0~50%CO2,rest N2 0.5~1.5 50~300 0.6~1 0.2~0.8 G3/4”
WL8100A-5 Ar+He 0~30%Ar,rest He 0.5~1.5 50~300 0.6~1 0.2~0.8 G3/4”
WL8100A-6 Ar+H2 0~10%H2,rest Ar 0.5~1.5 50~300 0.6~1 0.2~0.8 G3/4”
