AFK Semi - Automatic Changeover Panel , High Pressure Gas Control Panel

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: AFK

Model Number: WL300

Payment & Shipping Terms

Minimum Order Quantity: >=1 Sets

Price: Negotiable

Packaging Details: Export packing

Supply Ability: 10000 Set/Sets per Week

Get Best Price
Contact Now
Specifications
Highlight:

gas control panel

,

automatic switchover manifold

Max Inlet Pressure:
2200, 3000 Psig
Outlet Pressure Range:
0~25, 0~50, 0~100, 0~150 , 0~250psig
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Cv:
0.14
Valve Seat:
PU, PTFE ,FCTFE
Body Material:
316L
Diaphragms:
316L
Pressure Gauge Size:
2"
Port:
SHENZHEN
Max Inlet Pressure:
2200, 3000 Psig
Outlet Pressure Range:
0~25, 0~50, 0~100, 0~150 , 0~250psig
Working Temperature:
-40° F ~+165° F(-40°C+74°C)
Cv:
0.14
Valve Seat:
PU, PTFE ,FCTFE
Body Material:
316L
Diaphragms:
316L
Pressure Gauge Size:
2"
Port:
SHENZHEN
Description

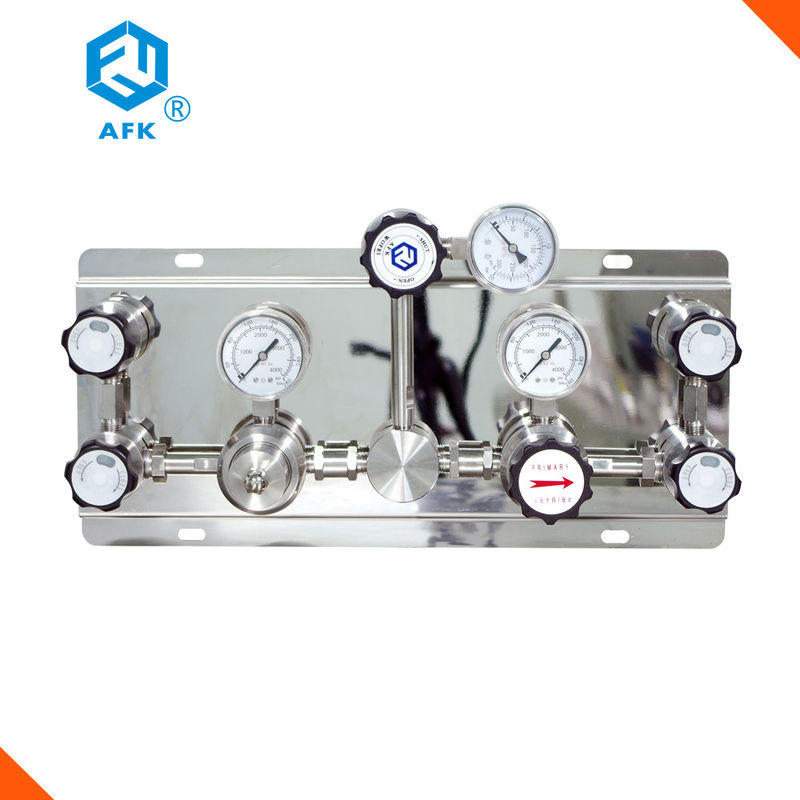

AFK Semi - Automatic Changeover Panel , High Pressure Gas Control Panel


WL300 Series Semi-automatic Changeover Device


It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides,
through the automatic changeover to realize continuous gas supply, with the function of purging.
The maximum input pressure of 20.7Mpa (3000psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.



Product Specifications

1) Max. Inlet Pressure: 3000, 2200Psi

2) Max. Outlet Pressure: 25, 50, 100, 150, 0~250Psi

3)Working Temperature: -40℃~74℃(-40℉~165℉)

4) Leakage rate: 2 x 10-8 atm.cc/sec He

5)Cv: 0.08

Design Features

1) Pressure regulator for special gas

2) Equipped relief pressure valve

3)Pressure regulator and pipe through the pressure test and leakage test

4)2" stainless steel pressure gauge, reading clearly

5) The knob of diaphragm valves with on/off logo.


Material List
Body material
Stainless steel 316L
Valve Seat
PU, PTFE, PCTFE
Diaphragm
Stainless steel 316L
Inlet connection
1/4" NPT (F)
Outlet connection
1/4" NPT (F)






AFK Semi - Automatic Changeover Panel , High Pressure Gas Control Panel 0
AFK Semi - Automatic Changeover Panel , High Pressure Gas Control Panel 1
ORDERING INFORMATION
WL3 1 1 1 S H 1 1 -N2
Series Function Options Outlet Connection Inlet Connection Body Material

Input

Pressure

Outlet

Pressure

Gauge Gas Option
WL300 Series Semi-automatic Changeover Device 1.With emptying, purging distribution function 1:1/4”NPT(F) 1:1/4″Weldmg S:stainless H:3000psi 1:25psi 1:MPa Blank: None
  2.Wrthout Emptying, purging distribution function 2:1/4”Tube fitting 2:1/4”NPT(M) steel M:2200psi 2:50psi 2:Bar/psi N2:nitrogen
  3.Emptying. purging distnbuUon+pressure sensor 3:3/8”NPT(F) 3:3/8”Melding C:nickel plated L:1000psi 3:100psi 3:psi/KPa O2:oxygen
  4.With pressure sensor 4:3/8”Tube fitting 4:3/8”NPT(M) brass O: Other 4:150psi 4:Other H2:hydrogen
  5:Other 5:1/2”NPT(F) 5:1/2”Melding     5:250psi   C2H2:acetylene
    6:1/2”Tube fitting 6:1/2”NPT(M)     6:Other   CH4:methane
    7:Other 7:1/4”Tube fitting         Ar:argon
      8:3/8″Tube fitting         He:helium
      9:1/2″Tube fitting         Air:air
      10:Other

Product Show


AFK Semi - Automatic Changeover Panel , High Pressure Gas Control Panel 2

Packing & Delivery


Packaging
Size
Decided on the product
Weight
6KG
Packaging Details
Export packing or according customer's request.
