Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: BV-3
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: color box packing
Supply Ability: 300000 Piece/Pieces per Week
Temperature Of Media: |
Medium Temperature |
Pressure: |
Low Pressure |
Media: |
Gas |
Port Size: |
3mm |
Structure: |
Ball |
Size: |
3, 6mm, 8mm, 10mm, 1/4, 1/2, 3/8 |
Temperature Of Media: |
Medium Temperature |
Pressure: |
Low Pressure |
Media: |
Gas |
Port Size: |
3mm |
Structure: |
Ball |
Size: |
3, 6mm, 8mm, 10mm, 1/4, 1/2, 3/8 |

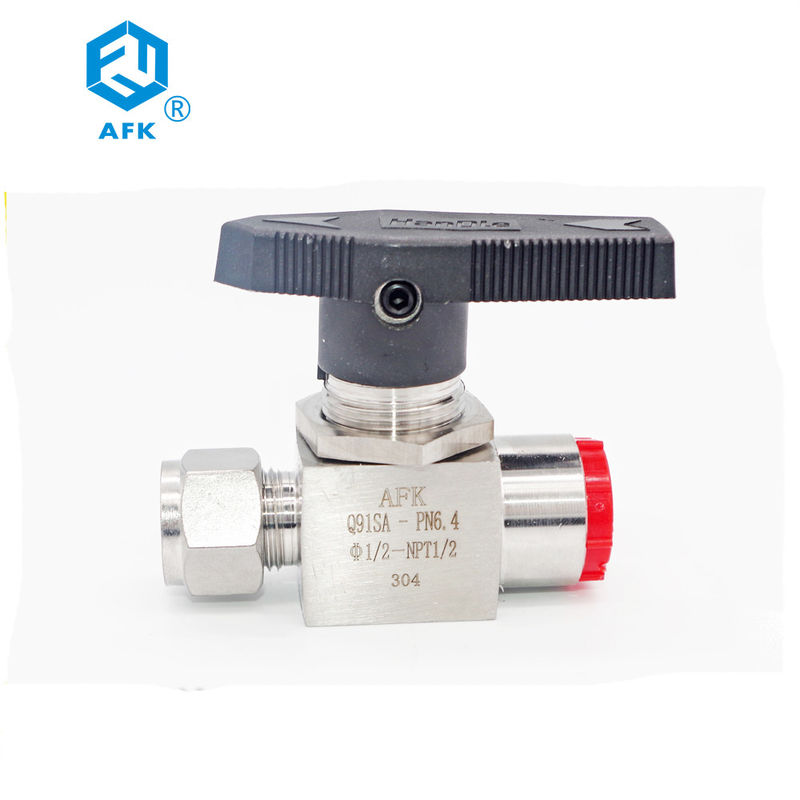

Gas Equipment Propane Ball Valve on The Tube Diameter of 3 mm
Technical Parameters
Brand: AFK
Model: BVJ-O.D.
Size: 6mm, 8mm, 10mm, 12mm, 1/4", 3/8", 1/2", 3/4"
End Connection: O.D.(ferrule)
Body Material:ss316
Seal Material: PTFE
Medium: gas, water, air, oil.
Max.working pressure:1000PSI
Features:
Simple in structure, convenient in maintenance.
Handle to the flow direction of medium instructions.
A variety of handle colors to choose from.
The handle switch positioning accuracy.
The valve switch low operating torque.
Manual, pneumatic or electric drive is optional.
Cock switch control valve, replace installation is convenient.
Type O ring seal design, sealed performance is good.
Straight-through type flow, small pressure drop.
With the downstream discharge port.
Pressure Rating with standard PTFE seats.
Temperature rating from 10 ℃(50℉) to 65 ℃(150℉)
With standard PTFE Packing
Compact designed one piece body to reduce space and possible leak point
Once piece integral ball stem to eliminate backlash and to encapsulate ball seats perfectly.
Panel mounting for easy installation
Wide choice of end connection: AFK-lok tube fittings, Female NPT or ISO 7/1 (PT) thread.
2 way shut off valves and 3 way switching valve are available
For Example: The following part numbar.INBV-02OD is designed for BVJ Series ball valve with both 1/4 Tube fittings, ss316, PFFE Seat
