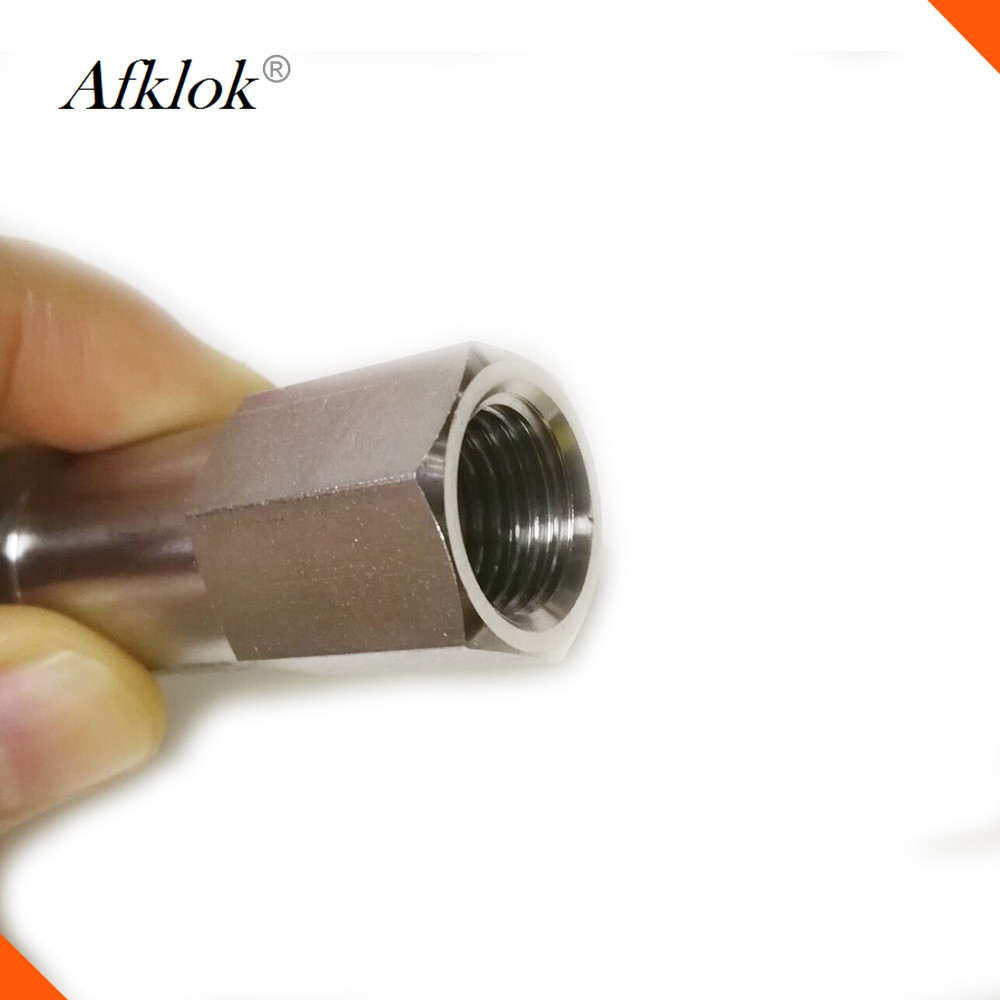

Product Details:
|
| Application: | General | Material: | Stainless Steel |
|---|---|---|---|
| Temperature Of Media: | High Temperature | Pressure: | High Pressure |
| Power: | Manual | Media: | Gas |
| Port Size: | 1/8" 1/4" 3/8" 1/2" | Structure: | Check |
| Size Range: | 1/4, 1/2, 3/4, 6mm, 8mm, 10mm, 12mm Etc | Body Material: | Ss304, Ss316 |
| Connection Type: | O.D., NPT Female, NPT Male | Standard Or Nonstandard: | Standard |
| High Light: | compressed air check valve,air pressure check valve |
||
1) Working pressure 3000-6000PSI
2) Working temperature: 2500F(121℃), using buna.
3) Min flow capacity limited
4) Closed quickly at reverse flow direction.
5) 100% factory test.
6) Locking up pressure according to customer's demands.
7) To purity the clean system
8) Applying to gas or liquid
|
End connection
|
1/8",1/4", 6mm, 8mm
3/8", 1/2", 10mm, 12mm
3/4", 14mm, 16mm, 18mm, 20mm, 22mm
|
|
Max. working pressure
|
3000-6000PSI
1500PSI (10.300kpa)
ss316 2000PSI(13.700Kpa)
|
|
temperature range
|
Vito:-23℃-191℃ (-10℉-375℉)
NBR:-23℃-121℃-(-10℉-375℉)
|
|
Reverse pressure
|
1, 10, 25PSI (2, 3, 65, 170Kpa)
choice:Spring with cracking pressure up to 100PSI
|
|
fluid coefficient
|
1/8"-0.16
1/4" 6mm, 8mm-0.47
3/8"-1.47
1/2"-10mm 12mm-1.68
3/4"-4.48
|
