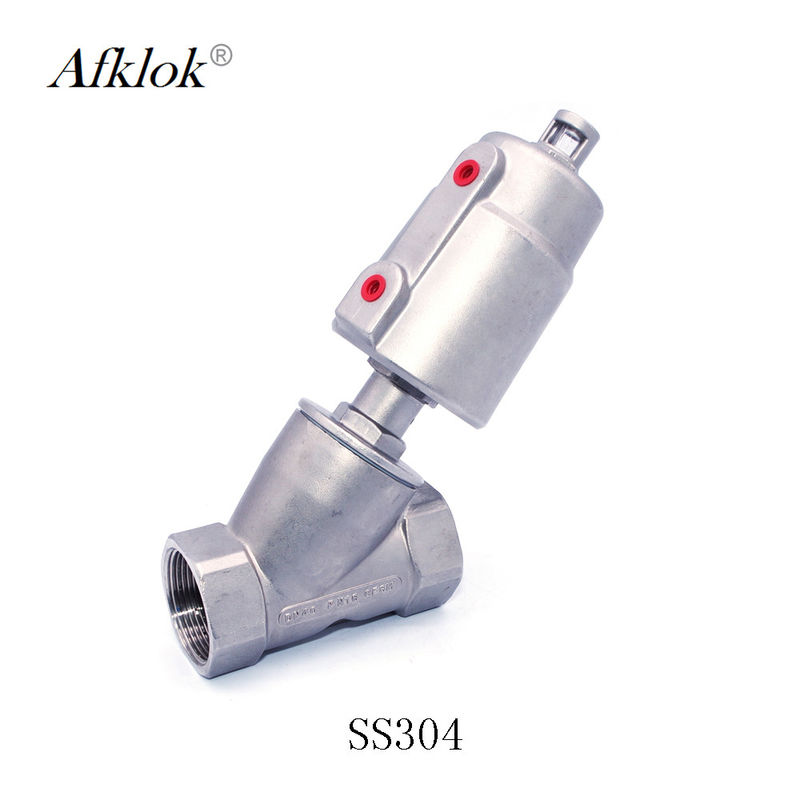

SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling

  • SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling
  • SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling
  • SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling
  • SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling
  • SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling
  • SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling
Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Model Number LCJ-12A
Minimum Order Quantity >=1 Sets
Price Negotiable
Packaging Details Export packing
Supply Ability 10000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel, SS304 Temperature Of Media Medium Temperature
Pressure Low Pressure, 13 Bar Power Manual
Media Steam Control Functions Normally Closed
High Light

pneumatic proportional flow control valve

,

pneumatic pressure controller
Leave a Message
Product Description
DN40 Stainless steel 304 Threaded Pneumatic Angle Seat Valve for Water Oil Gas

Function Principle

Valve is closed (open) with spring force, when the piton is actuated by compressed air, valve is open (closed). For the double acting type, the valve is open and closed by compressed air.

Advantage

1)Large flux, low resistance, no water-hammer
2)Y-type shape enlarged to flowing section, which could raise the flux by 30% and make flow more smooth.
3)Super Long Life
4)Which help the stem adjust and lubricate itself automatically
5)The cylinder material is stainless steel. Lubricating automatically, 360° rolling freely.

Applications

1) Bear & Drinks Filling Machinery

2) Textile Printing & Dying

3) Gas Industry

4) Pharmacy & Medical Equipment

5) Chemical Industry

6) Disinfection

7) Frothing Equipment.

8) Water/ Sewage Disposal

Product Parameters
Fluid Pressure
Max. 1.6 Mpa (232psi)
Control Pressure
0.3 ~0.8 Mpa (43.5~116psi)
Control Medium
Neutral gas or air
Body material
CF8M/CF8
Seal Material
PTFE
Actuator Material
CF8
Actor Size
50mm, 63mm, 80mm, 100mm
Applicable Medium
Water,  Alcohol, Oil , Fuel, Steam, Neutral gas or liquid,  Organic solvent, Acid and lye
Medium Viscosity
Max 600 mm2/s
Medium Temperature
-10℃-+180℃
Control Type
Normally closed, normally open, double acting
Connection
Threaded(BSP, NPT), Welded, Flanged, Tri-clamp

Product Show
SS304 Pneumatic Pressure Control Valve Long Lifespan 360° Free Rolling 0
