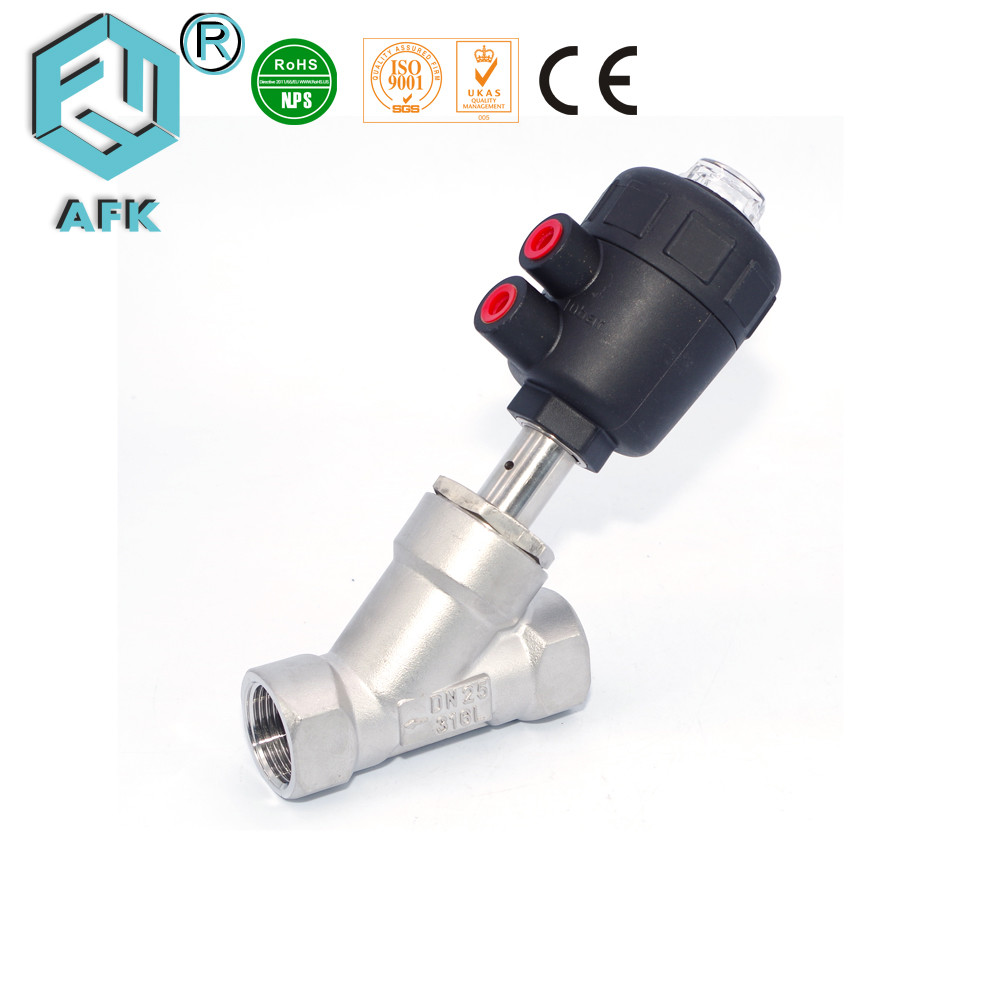

Product Details:
|
| Application: | General | Material: | Stainless Steel, SS304 |
|---|---|---|---|
| Temperature Of Media: | Medium Temperature | Power: | Manual |
| Media: | Gas | Port Size: | 1/2" |
| Structure: | Pneumatic | Control Functions: | Normally Open |
| High Light: | pneumatic directional control valve,pneumatic proportional flow control valve |
||
*Pressure range:0~16bar
*Medium temperature:-10℃~+60℃
*Environmental temperature:-10℃~+60℃
*Body material:Stainless steel
*Sealing material: PTFE
*Actuator material:PA
*Medium:Neutral gas, air, water
*Manufacturing standard:GB
*Control functions:Normally open
*PPS Actuator material suitable for environmental temperature:+5℃~130℃
*No return spring double acting actuators
*Tri-clamp connection
*Electronic position feedback
*Independent adjustable stroke limit, suitable for high low flow schedule
*Manual emergency switch
*Pilot valve suitable Namur adapter
|
Specification
|
L
|
L1
|
G
|
B
|
H
|
|
DN15
|
173
|
85
|
1/2"
|
G1/4"
|
147
|
|
DN20
|
182
|
95
|
3/4"
|
G1/4"
|
148
|
|
DN25
|
209
|
103
|
1"
|
G1/4"
|
175
|
|
DN32
|
219
|
118
|
1 1/4"
|
G1/4"
|
180
|
|
DN40
|
243
|
130
|
1 1/2"
|
G1/4"
|
203
|
|
DN50
|
265
|
148
|
2"
|
G1/4"
|
213
|
|
DN65
|
287
|
190
|
2 1/2"
|
G1/4"
|
233
|
|
DN80
|
315
|
225
|
3"
|
G1/4"
|
244
|
