Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: ME
Payment & Shipping Terms
Minimum Order Quantity: >=10 Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 10000 Set/Sets per Week
Type: |
Elbow |
Material: |
Stainless Steel, Stainless Steel 316 |
Technics: |
Forged |
Connection: |
Male, Ferrule OD X Male NPT |
Shape: |
Reducing |
Head Code: |
Hexagon |
Application: |
Water Gas Oil |
Pressure: |
3000PSI |
Type: |
Elbow |
Material: |
Stainless Steel, Stainless Steel 316 |
Technics: |
Forged |
Connection: |
Male, Ferrule OD X Male NPT |
Shape: |
Reducing |
Head Code: |
Hexagon |
Application: |
Water Gas Oil |
Pressure: |
3000PSI |
|

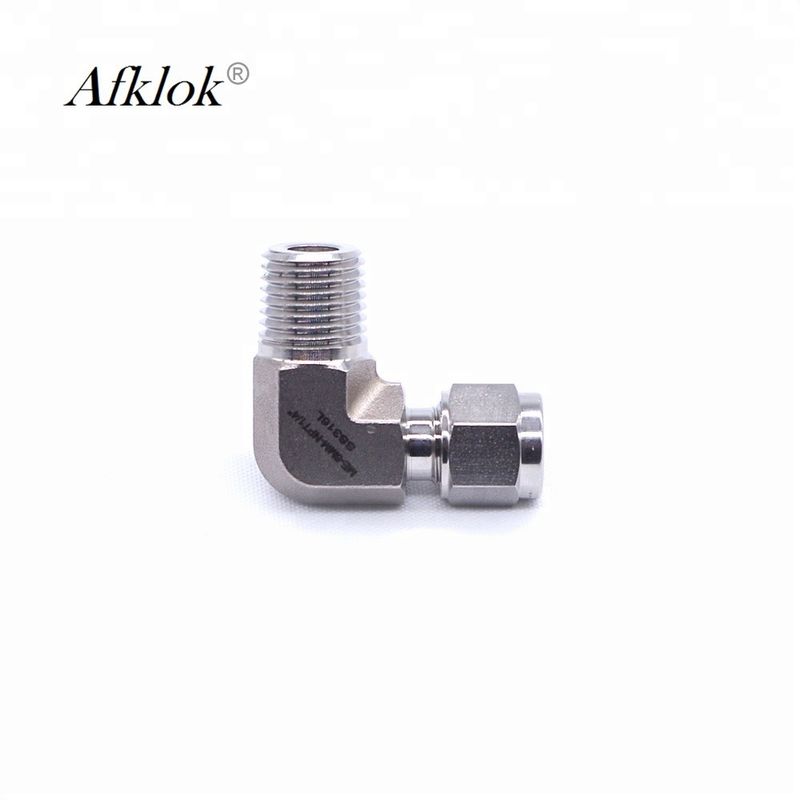

Product Name
|
Male Elbow
|
|
Material
|
stainless steel 316
|
|
Pressure
|
3000psi
|
|
Connection
|
Ferrule OD x Male NPT
|
|
Brade
|
AFK
|
|
Materials
|
316
|
|
Used
|
Chemical and Petrochemical
|
| Male Elbow (Fractional) | ||||||||||
| T Tube OD | PT-NPT Male pipe size | Catalog Number | A | B | C | D | E | F | G | H |
| 1/16 | 1/8 | ME-005-1 | 19.1 | 10 | 18.1 | 8.6 | 1 | 10 | 10 | 15.2 |
| 1/16 | 1/4 | ME-005-2 | 21.8 | 13 | 21.6 | 8.6 | 1 | 14 | 10 | 18.0 |
| 1/8 | 1/8 | ME-01-1 | 23.6 | 10 | 18.1 | 12.7 | 3 | 12 | 10 | 17.0 |
| 1/8 | 1/4 | ME-01-2 | 24.6 | 13 | 22.2 | 12.7 | 3 | 14 | 10 | 18.0 |
| 1/8 | 3/8 | ME-01-3 | 28.4 | 14 | 26.8 | 12.7 | 3 | 17 | 10 | 21.8 |
| 1/8 | 1/2 | ME-01-4 | 31.3 | 17 | 32.7 | 12.7 | 3 | 22 | 10 | 24.7 |
| 3/16 | 1/8 | ME-015-1 | 25.4 | 10 | 19.1 | 13.7 | 3 | 12 | 12 | 18.8 |
| 3/16 | 1/4 | ME-015-2 | 25.4 | 13 | 22.2 | 13.7 | 3 | 14 | 12 | 18.6 |
| 1/4 | 1/8 | ME-02-1 | 27.0 | 10 | 19.1 | 15.3 | 5 | 12 | 14 | 19.6 |
| 1/4 | 1/4 | ME-02-2 | 27.0 | 13 | 22.2 | 15.3 | 5 | 14 | 14 | 19.6 |
| 1/4 | 3/8 | ME-02-3 | 29.7 | 14 | 26.0 | 15.3 | 5 | 17 | 14 | 22.4 |
| 1/4 | 1/2 | ME-02-4 | 31.8 | 17 | 31.0 | 15.3 | 5 | 22 | 14 | 24.4 |
| 3/8 | 1/8 | ME-03-1 | 30.5 | 10 | 21.1 | 16.8 | 6 | 17 | 17 | 21.3 |
| 3/8 | 1/4 | ME-03-2 | 30.5 | 13 | 24.2 | 16.8 | 8 | 17 | 17 | 21.3 |
| 3/8 | 3/8 | ME-03-3 | 31.2 | 14 | 26.0 | 16.8 | 8 | 17 | 17 | 23.1 |
| 3/8 | 1/2 | ME-03-4 | 33.3 | 17 | 31.0 | 16.8 | 8 | 22 | 17 | 26.0 |
| 1/2 | 1/8 | ME-04-1 | 36.1 | 10 | 25.7 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 1/4 | ME-04-2 | 36.1 | 13 | 27.0 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 3/8 | ME-04-3 | 36.1 | 14 | 29.0 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 1/2 | ME-04-4 | 36.1 | 17 | 31.0 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 3/4 | ME-04-6 | 40.0 | 19 | 36.8 | 22.8 | 10 | 27 | 22 | 29.7 |
| 1/2 | 1 | ME-04-8 | 45.3 | 22 | 45.2 | 22.8 | 10 | 34 | 22 | 35.2 |
| 5/8 | 3/8 | ME-05-3 | 38.1 | 14 | 30.0 | 24.4 | 12 | 24 | 27 | 27.9 |
| 5/8 | 1/2 | ME-05-4 | 38.1 | 17 | 33.1 | 24.4 | 12 | 24 | 27 | 27.9 |
| 5/8 | 3/4 | ME-05-6 | 40.0 | 19 | 36.8 | 24.4 | 12 | 27 | 27 | 29.7 |
| 3/4 | 1/2 | ME-06-4 | 40.0 | 17 | 34.8 | 24.4 | 15 | 27 | 30 | 29.7 |
| 3/4 | 3/4 | ME-06-6 | 40.5 | 19 | 36.8 | 24.4 | 15 | 27 | 30 | 29.7 |
| 1 | 3/4 | ME-08-6 | 49.0 | 19 | 41.7 | 31.3 | 21 | 34 | 38 | 36.8 |
| 1 | 1 | ME-08-8 | 49.0 | 22 | 44.5 | 31.3 | 21 | 34 | 38 | 36.8 |
Packing Details : Export Packing
Delivery Details : About 5 working days
Our office
Our Warehouse
Our Team
FAQ
Q1. What products can you provide?
Re: Compression fittings(connections), hydraulic fittings, tube fittings, ball valves, needle valves etc.
Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements.
Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.
Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.
Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.
Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 50%T/T, Western Union, L/C as deposit, and 50% balance paid before shipment.
Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 7-10 working days for mass production.
Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
