Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: UE
Payment & Shipping Terms
Minimum Order Quantity: >=10 Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 10000 Set/Sets per Week
Type: |
Union |
Material: |
Stainless Steel |
Technics: |
Forged |
Connection: |
Welding |
Shape: |
Equal |
Head Code: |
Hexagon |
Standard: |
GB |
Application: |
Water Gas |
Certificate: |
ISO CE SGS |
Type: |
Union |
Material: |
Stainless Steel |
Technics: |
Forged |
Connection: |
Welding |
Shape: |
Equal |
Head Code: |
Hexagon |
Standard: |
GB |
Application: |
Water Gas |
Certificate: |
ISO CE SGS |
|
Product Name
|

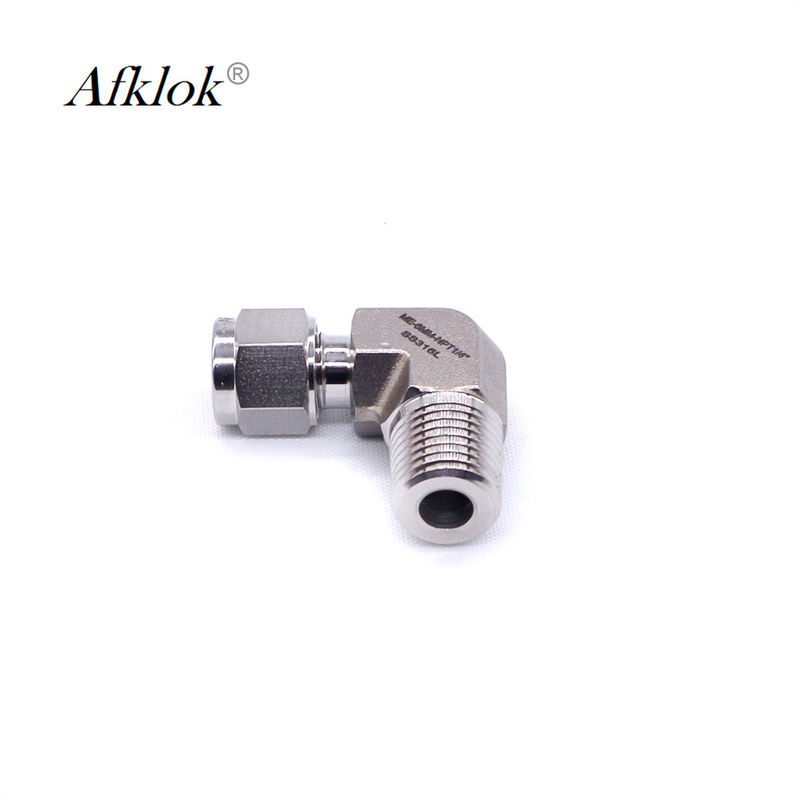

AFK 316 90 Degree Equal Stainless Steel Elbow Tube Fittings
|
|
Material
|
stainless steel 316
|
|
Connect
|
Ferrule OD
|
|
Standard
|
DIN GB ISO JIS BA ANSI
|
|
Brade
|
AFK
|
|
Materials
|
316
|
|
Used
|
Chemical and Petrochemical
|
| Male Elbow (Fractional) | ||||||||||
| T Tube OD | PT-NPT Male pipe size | Catalog Number | A | B | C | D | E | F | G | H |
| 1/16 | 1/8 | ME-005-1 | 19.1 | 10 | 18.1 | 8.6 | 1 | 10 | 10 | 15.2 |
| 1/16 | 1/4 | ME-005-2 | 21.8 | 13 | 21.6 | 8.6 | 1 | 14 | 10 | 18.0 |
| 1/8 | 1/8 | ME-01-1 | 23.6 | 10 | 18.1 | 12.7 | 3 | 12 | 10 | 17.0 |
| 1/8 | 1/4 | ME-01-2 | 24.6 | 13 | 22.2 | 12.7 | 3 | 14 | 10 | 18.0 |
| 1/8 | 3/8 | ME-01-3 | 28.4 | 14 | 26.8 | 12.7 | 3 | 17 | 10 | 21.8 |
| 1/8 | 1/2 | ME-01-4 | 31.3 | 17 | 32.7 | 12.7 | 3 | 22 | 10 | 24.7 |
| 3/16 | 1/8 | ME-015-1 | 25.4 | 10 | 19.1 | 13.7 | 3 | 12 | 12 | 18.8 |
| 3/16 | 1/4 | ME-015-2 | 25.4 | 13 | 22.2 | 13.7 | 3 | 14 | 12 | 18.6 |
| 1/4 | 1/8 | ME-02-1 | 27.0 | 10 | 19.1 | 15.3 | 5 | 12 | 14 | 19.6 |
| 1/4 | 1/4 | ME-02-2 | 27.0 | 13 | 22.2 | 15.3 | 5 | 14 | 14 | 19.6 |
| 1/4 | 3/8 | ME-02-3 | 29.7 | 14 | 26.0 | 15.3 | 5 | 17 | 14 | 22.4 |
| 1/4 | 1/2 | ME-02-4 | 31.8 | 17 | 31.0 | 15.3 | 5 | 22 | 14 | 24.4 |
| 3/8 | 1/8 | ME-03-1 | 30.5 | 10 | 21.1 | 16.8 | 6 | 17 | 17 | 21.3 |
| 3/8 | 1/4 | ME-03-2 | 30.5 | 13 | 24.2 | 16.8 | 8 | 17 | 17 | 21.3 |
| 3/8 | 3/8 | ME-03-3 | 31.2 | 14 | 26.0 | 16.8 | 8 | 17 | 17 | 23.1 |
| 3/8 | 1/2 | ME-03-4 | 33.3 | 17 | 31.0 | 16.8 | 8 | 22 | 17 | 26.0 |
| 1/2 | 1/8 | ME-04-1 | 36.1 | 10 | 25.7 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 1/4 | ME-04-2 | 36.1 | 13 | 27.0 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 3/8 | ME-04-3 | 36.1 | 14 | 29.0 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 1/2 | ME-04-4 | 36.1 | 17 | 31.0 | 22.8 | 10 | 22 | 22 | 26.0 |
| 1/2 | 3/4 | ME-04-6 | 40.0 | 19 | 36.8 | 22.8 | 10 | 27 | 22 | 29.7 |
| 1/2 | 1 | ME-04-8 | 45.3 | 22 | 45.2 | 22.8 | 10 | 34 | 22 | 35.2 |
| 5/8 | 3/8 | ME-05-3 | 38.1 | 14 | 30.0 | 24.4 | 12 | 24 | 27 | 27.9 |
| 5/8 | 1/2 | ME-05-4 | 38.1 | 17 | 33.1 | 24.4 | 12 | 24 | 27 | 27.9 |
| 5/8 | 3/4 | ME-05-6 | 40.0 | 19 | 36.8 | 24.4 | 12 | 27 | 27 | 29.7 |
| 3/4 | 1/2 | ME-06-4 | 40.0 | 17 | 34.8 | 24.4 | 15 | 27 | 30 | 29.7 |
| 3/4 | 3/4 | ME-06-6 | 40.5 | 19 | 36.8 | 24.4 | 15 | 27 | 30 | 29.7 |
| 1 | 3/4 | ME-08-6 | 49.0 | 19 | 41.7 | 31.3 | 21 | 34 | 38 | 36.8 |
| 1 | 1 | ME-08-8 | 49.0 | 22 | 44.5 | 31.3 | 21 | 34 | 38 | 36.8 |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
