1/2Inch Gas Pipe Compression Fittings , 90° Elbow Shaped Ss Plumbing Fittings
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Union | Material | Stainless Steel |
|---|---|---|---|
| Technics | Forged | Connection | Tube Ferrule |
| Shape | Equal | Head Code | Hexagon |
| Applicable Fluid | Nitrogen, Hydrogen,oxygen,argon,ammonia, Propane, Air And Other Gases | Working Pressure Range | 0-3000psig |
| Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1", 4mm, 6mm, 8mm, 10mm, 12mm | Body Shape | Straight Union, 90degree Elbow, Tee(3 Way), Cross(4 Way) |
| High Light | stainless steel threaded pipe fittings,stainless steel hose barb fittings |
||
Product Description

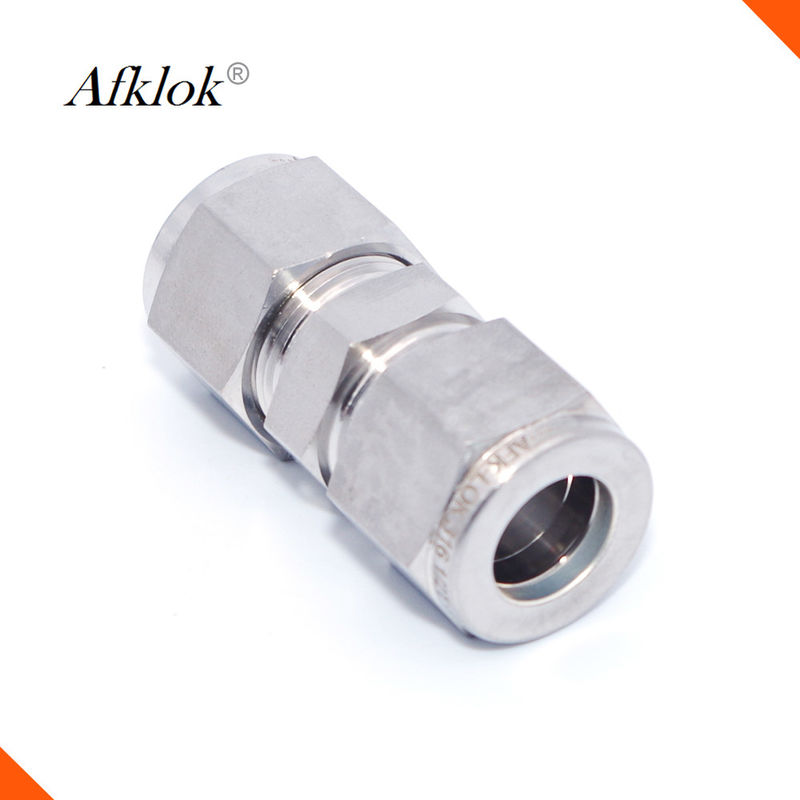

SS316 SS304 1/2inch gas pipe compression fittings
Specification
Shape Instruction
- Straight union: like U, MC, TAF etc.
- 90° elbow: like ME, UE, EBW, FE etc.
- T(tee, 3 way): like MRT, MBT, UT, MT etc.
- Cross(4 way): like UCR etc.
Connection Instruction
- Thread: NPT male thread, NPT female thread, PT male thread, PT female thread.
- Ferrule: like U and UCR, it can be directly connected to tube or plastic hose.
- Welded: like one end of ODSW.
- Tube: like one end of TAM.
Feature
- All the compression fittings are used for gas or oil.
- Highest pressure: 3000psi (206bar, 20.6MPa)
- Very very low leak, can be negligible (zero leak).
- Long service life
- Warranty one year
| Metric | |
| TUBE | CATALOG |
| O.D. | NUMBER |
| 2 | U-2-0 |
| 3 | U-3-0 |
| 4 | U-4-0 |
| 6 | U-6-0 |
| 8 | U-8-0 |
| 10 | U-10-0 |
| 12 | U-12-0 |
| 14 | U-14-0 |
| 15 | U-15-0 |
| 16 | U-16-0 |
| 18 | U-18-0 |
| 20 | U-20-0 |
| 22 | U-22-0 |
| 25 | U-25-0 |
| FRACTIONAL | |
| TUBE | CATALOG |
| O.D. | NUMBER |
| 1/16 | U-005-0 |
| 1/8 | U-01-0 |
| 3/16 | U-015-0 |
| 1/4 | U-02-0 |
| 3/8 | U-03-0 |
| 1/2 | U-04-0 |
| 5/8 | U-05-0 |
| 3/ | U-06-0 |
| 1 | U-08-0 |
Note: Catalogue and Drawings&Dimension Size can be send to you if request.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Southeast Asia(20.00%),Africa(20.00%),Eastern Asia(10.00%),Mid East(10.00%),Domestic Market(5.00%),South Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),South America(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pressure regulator,Tube fittings,solenoid valve,Needle valve,check valve
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
