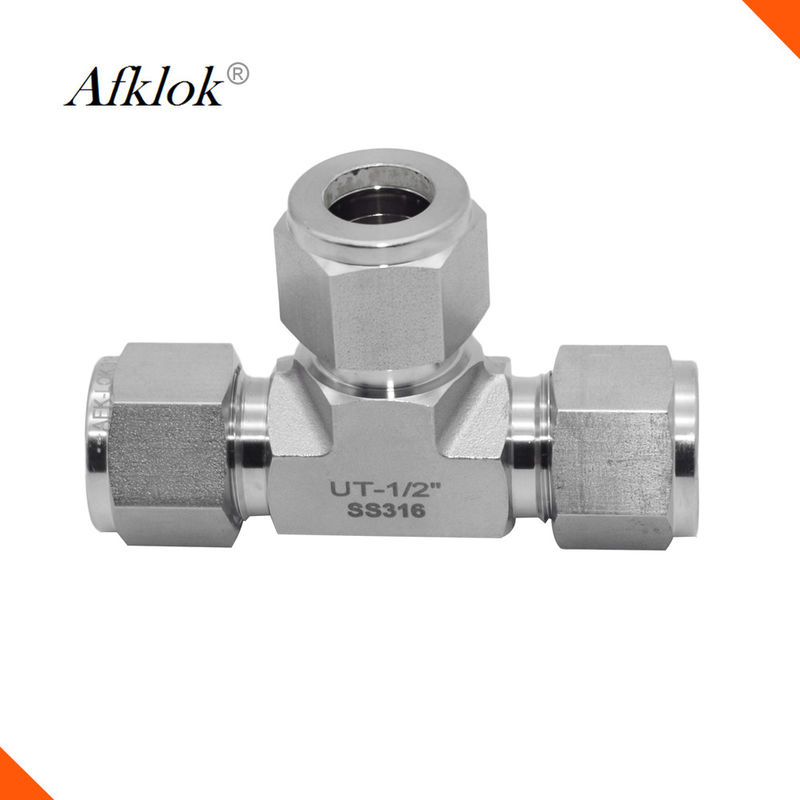

High Pressure 316 Stainless Steel Tube Fittings 3000PSI Water Oil Gas Application
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Materail | SS316 | Working Pressure | 3000 Psi |
|---|---|---|---|
| Place Of Origin | Guangdong, China | Size | 6mm, 8mm,10mm,12mm |
| Connection | Ferrule | Packing | Inside PE Transparent Bag, Outside Carton |
| MOQ | 1 Piece | ||
| High Light | stainless steel plumbing fittings,stainless steel hose barb fittings |
||
Product Description
High Pressure 316 Stainless Steel Tube Fittings 3000PSI Water Oil Gas Application High Quality
Product Description
| Metric | |||||||||
| Tube O.D | Catalog number | A | D | E | F | G | H | J | K |
| 3 | UT-3-0 | 22.3 | 12.9 | 2 | 12 | 10 | 15.7 | 31.5 | 44.7 |
| 4 | UT-4-0 | 25.4 | 13.7 | 3 | 12 | 12 | 18.8 | 37.6 | 50.8 |
| 6 | UT-6-0 | 27.0 | 15.3 | 5 | 12 | 14 | 19.6 | 39.1 | 53.9 |
| 8 | UT-8-0 | 29.9 | 16.2 | 6 | 14 | 17 | 22.4 | 44.7 | 59.7 |
| 10 | UT-10-0 | 31.5 | 17.2 | 8 | 17 | 19 | 23.9 | 47.8 | 63.0 |
| 12 | UT-12-0 | 36.0 | 22.8 | 10 | 22 | 22 | 25.9 | 51.8 | 72.0 |
| 14 | UT-14-0 | 38.8 | 24.4 | 10 | 24 | 27 | 28.7 | 57.4 | 77.6 |
| 15 | UT-15-0 | 38.8 | 24.4 | 11 | 24 | 27 | 28.7 | 57.4 | 77.6 |
| 16 | UT-16-0 | 38.8 | 24.4 | 12 | 24 | 27 | 28.7 | 57.4 | 77.6 |
| 18 | UT-18-0 | 38.8 | 24.4 | 14 | 27 | 30 | 29.7 | 59.4 | 79.5 |
| 20 | UT-20-0 | 44.6 | 26.0 | 16 | 30 | 32 | 34.5 | 69.1 | 89.3 |
| 22 | UT-22-0 | 44.6 | 26.0 | 18 | 30 | 32 | 34.5 | 69.1 | 89.3 |
| 25 | UT-25-0 | 49.1 | 31.3 | 21 | 35 | 38 | 36.8 | 73.7 | 98.3 |
| Fractional | |||||||||
| 1/16 | UT-005-0 | 17.8 | 8.6 | 1 | 12 | 10 | 14.0 | 28.0 | 35.6 |
| 1/8 | UT-01-0 | 22.4 | 12.7 | 2 | 12 | 10 | 15.8 | 31.4 | 44.8 |
| 3/16 | UT-015-0 | 25.4 | 13.7 | 3 | 12 | 12 | 19.6 | 39.1 | 50.8 |
| 1/4 | UT-02-0 | 27.0 | 15.2 | 5 | 12 | 14 | 22.4 | 44.8 | 54.0 |
| 3/8 | UT-03-0 | 30.5 | 16.8 | 8 | 17 | 19 | 23.1 | 46.2 | 61.0 |
| 1/2 | UT-04-0 | 36.0 | 22.8 | 10 | 22 | 22 | 26.0 | 52.0 | 72.0 |
| 5/8 | UT-05-0 | 38.9 | 24.4 | 12 | 24 | 27 | 28.7 | 57.4 | 77.8 |
| 3/4 | UT-06-0 | 40.0 | 26.0 | 15 | 27 | 30 | 29.7 | 59.4 | 80.0 |
| 1 | UT-08-0 | 49.0 | 31.2 | 21 | 35 | 38 | 36.8 | 73.6 | 98.0 |
Type: Tee
Material: Stainless Steel, Stainless Steel 316
Technics: Forged
Connection: Ferrule
Shape: Equal
Head Code: Hexagon
Size: 8mm
Standard: GB
Application: Water Gas Oil
Port: Shenzhen
Supply Ability:5000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Export packing
Port:Shenzhen
Lead Time :
|
Quantity(Pieces) |
1 - 100 |
>100 |
|
Est. Time(days) |
5 |
To be negotiated |
Packing & Delivery
Related Product
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: No, we not offer the sample for free charge and also not pay the cost of freight.
Q: What is your payment ?
A: T/T , PayPal , Western Union
