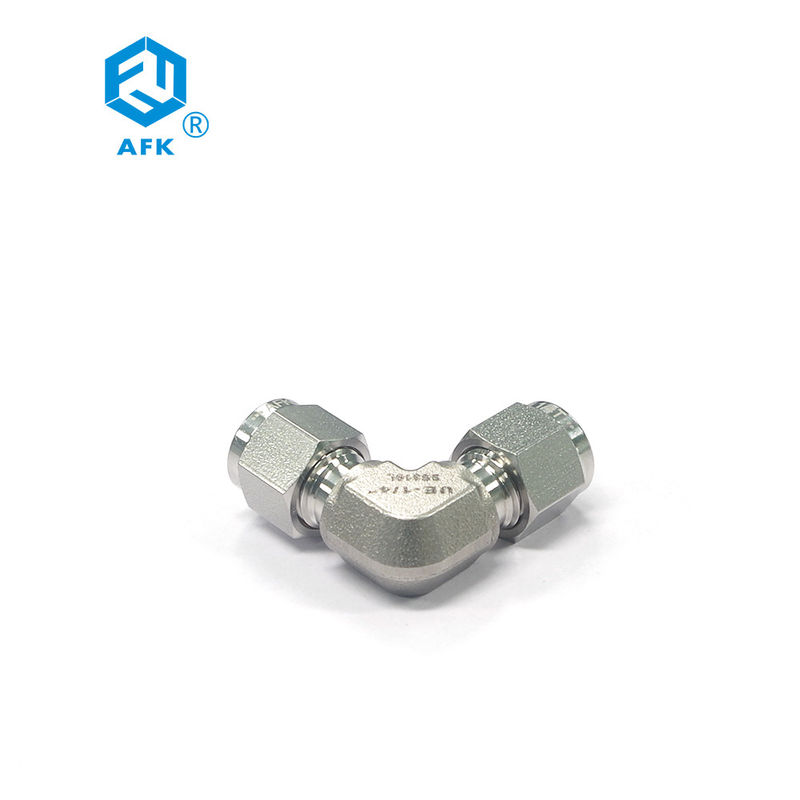

3000psig Ss316 1/4'' Ferrule OD Equal Elbow Gas Tube Fitting

  • 3000psig Ss316 1/4'' Ferrule OD Equal Elbow Gas Tube Fitting
  • 3000psig Ss316 1/4'' Ferrule OD Equal Elbow Gas Tube Fitting
Place of Origin Guangdong, China
Brand Name AFK
Certification CE
Model Number UE
Minimum Order Quantity 1 Piece
Price Negotiable
Packaging Details Export packing
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 2500 Piece/Pieces per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel 316 Connect Ferrule OD
Medium Gas Connection Tube Fitting
Shape Equal Working Pressure 0-3000psig
High Light

3000psig Elbow Gas Tube Fitting

,

Ss316 Elbow Gas Tube Fitting

,

1/4'' Ferrule OD Equal
Leave a Message
Product Description

Specification:



Hi friend, welcome to our Alibaba store.



We have various of fittings for stainless steel tube(pipe), copper tube(pipe) and plastic tube(pipe). They can work in high pressure high temperature conditions. Usually, they are called tube fittings, pipe fittings, hydraulic fittings, compression fittings, connection fittings and so on.



You can choose any model as follows, or describe what shape, connection, size etc. you need.





Shape Instruction:

  • Straight union: like U, MC, TAF etc.
  • 90° elbow: like ME, UE, EBW, FE etc.
  • T(tee, 3 way): like MRT, MBT, UT, MT etc.
  • Cross(4 way): like UCR etc.



Connection Instruction:

  • Thread: NPT male thread, NPT female thread, BSPT male thread, BSPT female thread.
  • Ferrule: like U and UCR, it can be directly connected to tube or plastic hose.
  • Welded: like one end of ODSW.
  • Tube: like one end of TAM.



Feature:

  • All the fittings are used for gas or oil.
  • Highest pressure: 3000psi (206bar, 20.6MPa)
  • Very very low leak, can be negligible (zero leak).
  • Long service life
  • Warranty one year

3000psig Ss316 1/4'' Ferrule OD Equal Elbow Gas Tube Fitting 0

Union Elbow (Metric)
Tube O.D. Catalog Number A D E F G H
3 UE-3-0 22.3 12.9 2 12 10 15.7
4 UE-4-0 25.4 13.7 3 12 12 18.8
6 UE-6-0 27.0 15.3 5 12 14 19.6
8 UE-3-0 28.8 16.2 6 14 17 21.3
10 UE-10-0 31.5 17.2 8 17 19 23.9
12 UE-12-0 36.0 22.8 10 22 22 25.9
14 UE-14-0 38.0 24.4 10 24 27 27.9
15 UE-15-0 38.8 24.4 11 24 27 27.9
16 UE-16-0 38.0 24.4 12 24 27 27.9
18 UE-18-0 39.8 24.4 14 27 30 29.7
20 UE-20-0 44.6 26.0 16 30 32 34.5
22 UE-22-0 44.6 26.0 18 30 32 34.5
25 UE-25-0 49.1 31.3 21 34 38 36.5

Fractional
1/16 UE-005-0 17.8 8.6 1 10 10 14.0
1/8 UE-01-0 22.4 12.7 3 12 12 15.8
3/16 UE-015-0 25.4 13.7 3 12 12 18.8
1/4 UE-02-0 27.0 15.2 5 12 14 19.6
3/8 UE-03-0 30.5 16.8 8 17 17 21.3
1/2 UE-04-0 36.0 22.8 10 22 22 23.1
5/8 UE-05-0 38.1 24.4 12 24 27 26.0
3/4 UE-06-0 40.0 24.4 15 27 30 29.7
1 UE-08-0 49.0 26.0 21 34 38 36.8
