Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: BV
Payment & Shipping Terms
Minimum Order Quantity: 1~9
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000set/sets per week
Material: |
Stainless Steel,SS304 |
Port Size: |
1/8" 1/4" 3/8" 1/2",1/4 " |
Pressure: |
Low Pressure,High Pressure,3000PSI |
Media: |
Gas |
Size: |
3/4",1/4" NPT |
Color: |
Stainless Color |
Body Material: |
Stainless Steel |
Connection: |
Threaded,Customize By Customers' Drawing Request |
Valve Type: |
2 Way |
Material: |
Stainless Steel,SS304 |
Port Size: |
1/8" 1/4" 3/8" 1/2",1/4 " |
Pressure: |
Low Pressure,High Pressure,3000PSI |
Media: |
Gas |
Size: |
3/4",1/4" NPT |
Color: |
Stainless Color |
Body Material: |
Stainless Steel |
Connection: |
Threaded,Customize By Customers' Drawing Request |
Valve Type: |
2 Way |
Characteristics
Black handles with arrow indicate flow direction as standard; metal handles for option
Packing bolt allows easy packing adjustment
Panel mountable Bi-directional flow. Micro-finished floating ball ensures leak proof shut off
End connections available with AFK tube end, BSPT or NPT female & male thread
Features
On/off service ball valve with 2 way pattern
Diverter service ball valve with 3 way pattern
Body material in Stainless Steel SS316/316L
Max. allowed working pressure: 50kg, 3000psig, 6000psig and 10000psig
With Viton O-ring
100% factory tested
Seat Material Characteristics
Ptfe
Common seat material used in many ball valves. Suitable for almost all applications.
TFM1600
Modified PTFE. Excellent seat material for purity applications. Very low residual material during operation.
Lower deformation ratio than PTFE, but higher pressure and temperature rating than PTFE. Chemical resistance equal to PTFE material.
Peek
Excellent seat material for high pressure and high temperature applications. Excellent chemical resistance. Can be used continuously in hot water or steam without permanent loss in physical properties. High strength for hostile environment and high pressure.
Product Description

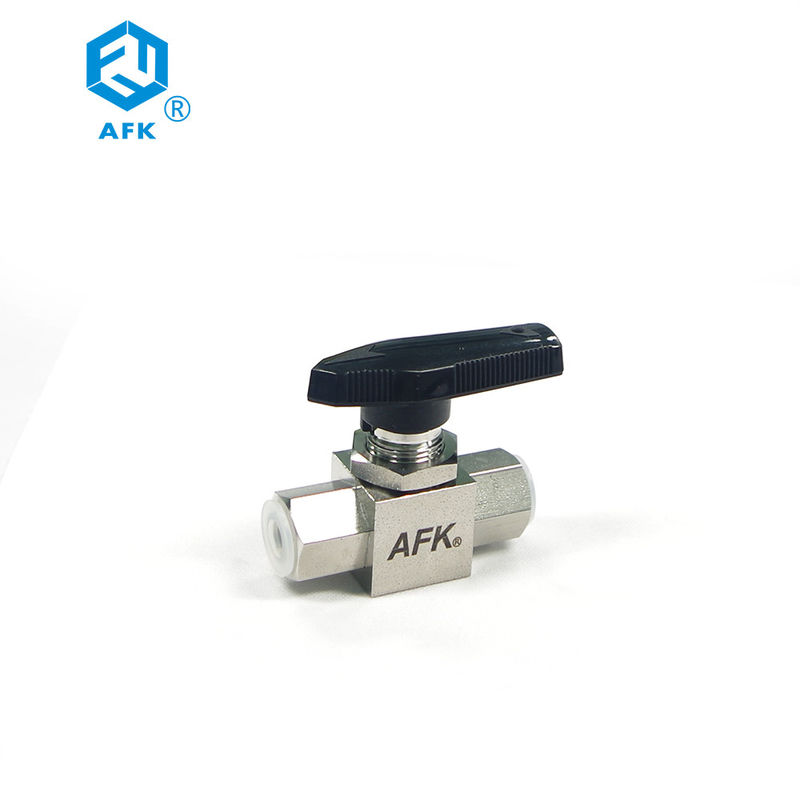

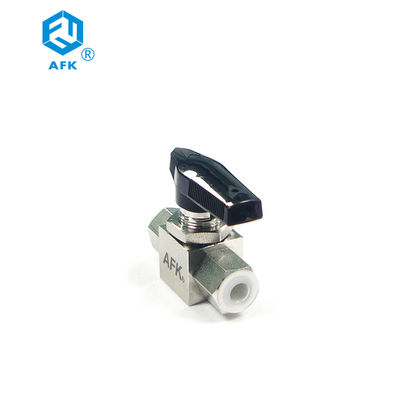

| Product Name | Mini Instructment High Pressure Ball Valve |
| Material | stainless steel |
| Color | nickel white |
| Standard | GB |
| Pressure | 1000psi, 3000psi, 6000psi |
| Temperature | 121℃ |
| Thread | JRC,NPT,BSP |
| Type | Conn./Size | Orifice |
Dimensions (mm)
|
|||||||||
| Inlet/outlet | Mm | In. | A | B | C | D | E | F | Panel Hole Size | Max Panel Thickness | ||
|
AFK TUBE END
|
Fractional | 1/8" | 5.0 | 0.19 | 63.8 | 31.9 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 67.6 | 33.8 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8" | 7.0 | 0.27 | 73.4 | 36.7 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
| 1/2" | 9.2 | 0.36 | 80.2 | 42.1 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 3/4" | 12.0 | 0.47 | 87.7 | 43.9 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| Metric | 6mm | 5.0 | 0.19 | 67.0 | 33.5 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | |
| 8mm | 5.0 | 0.19 | 69.6 | 34.8 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 10mm | 7.0 | 0.27 | 73.8 | 36.9 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
| 12mm | 9.2 | 0.36 | 79.8 | 39.9 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 14mm | 9.2 | 0.36 | 86.2 | 43.1 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 15mm | 9.2 | 0.36 | 86.5 | 43.2 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 16mm | 9.2 | 0.36 | 86.8 | 43.4 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 18mm | 12.0 | 0.47 | 87.8 | 43.9 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| 20mm | 12.0 | 0.47 | 85.0 | 42.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| 22mm | 12.0 | 0.47 | 85.6 | 42.8 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| MALE THREAD | Fractional | 1/8" | 5.0 | 0.19 | 52.0 | 26.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 58.4 | 29.2 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8" | 7.0 | 0.27 | 62.0 | 31.0 | 40.0 | 12.0 | 75 | 45 | 15.6 | 7.0 | ||
| 1/2" | 9.2 | 0.36 | 74.4 | 37.2 | 44.0 | 14.0 | 75 | 45 | 19.0 | 9.0 | ||
| 3/4" | 12.0 | 0.47 | 81.0 | 40.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
| MALE THREAD | Fractional | 1/8" | 5.0 | 0.19 | 45.0 | 22.5 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 |
| 1/4" | 5.0 | 0.19 | 52.0 | 26.0 | 35.0 | 10.0 | 55 | 34 | 14.0 | 6.0 | ||
| 3/8" | 7.0 | 0.27 | 57.0 | 28.0 | 40.0 | 12.0 | 75 | 45 | 15.8 | 7.0 | ||
| 1/2" | 10.0 | 0.39 | 64.0 | 32.0 | 42.3 | 43.5 | 75 | 45 | 15.8 | 6.0 | ||
| 3/4" | 12.0 | 0.47 | 73.0 | 36.5 | 46.7 | 17.2 | 75 | 45 | 19.0 | 8.5 | ||
All Dimensions Are In Millimeters Unless Specific.
Dimensions Shown Are For Reference Only And Subject To Change.
For Other Connections . Please Contact With Afk Sales Representative.
| Item | Part Description | Qty. | Material |
| 1 | Handle | 1 | Nylon |
| 2 | Handle Set Screw | 1 | Chrome-plated Steel |
| 3 | Stem | 1 | SS316/316L |
| 4 | Packing Bolt | 1 | SS316/316L |
| 5 | Gland Packing | 2 | TFM1600 |
| 6 | Stem O-ring | 1 | Viton |
| 7 | Panel Nut | 1 | SS304 |
| 8 | Body | 1 | CF8M |
| 9 | Ball | 1 | SS316/316L |
| 10 | Seat | 2 | TFM1600 |
| 11 | Body O-ring | 2 | Viton |
| 12 | End Cap | 2 | SS316/316L |
| C- | 3 | BV- | S6- | 02 | A- | 5k | |
| CLASSIFICATION | PRODUCT TYPE | VALVE TYPE | MATERIAL | SIZE(FRACTIONAL) | SIZE (MRTRIC) | CONNECTION TYPE | MAX.WORKINGPRESSURE |
| C:VALVE | 3:3PC | BVL:CASTIG BALL VAVE | S6 :SS316 | 02 :1/8" | 6 : 6mm | A:AFKTUBE END | 5k:50kg |
| 04 :1/4" | 8 : 8mm | MR :MALE BSPT THREAD | |||||
| 06 :3/8" | 10 : 0mm | FR :FEMALE BSPT THREAD | |||||
| 08 :1/2" | 12 :12mm | MN :MALE NPT THREAD | |||||
| 0.12:3/4" | 14:14mm | FN :FEMALE NPT THREAD | |||||
| 16:16mm | |||||||
| 18:18mm | |||||||
| 20:20mm | |||||||
| 22:22mm | |||||||
