Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: CV
Payment & Shipping Terms
Minimum Order Quantity: 1~9
Price: Negotiable
Packaging Details: Expotrt Packing
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000set/sets per week
Material: |
Stainless Steel |
Pressure: |
High Pressure,Low Pressure |
Power: |
Pneumatic |
Media: |
Gas |
Port Size: |
1/4",1/2'',contact Supplier,3/8" |
Type: |
Valve,2-way |
Package: |
Accordling Customer Request,Carton Or As Your Request |
Material: |
Stainless Steel |
Pressure: |
High Pressure,Low Pressure |
Power: |
Pneumatic |
Media: |
Gas |
Port Size: |
1/4",1/2'',contact Supplier,3/8" |
Type: |
Valve,2-way |
Package: |
Accordling Customer Request,Carton Or As Your Request |
*Product Specification

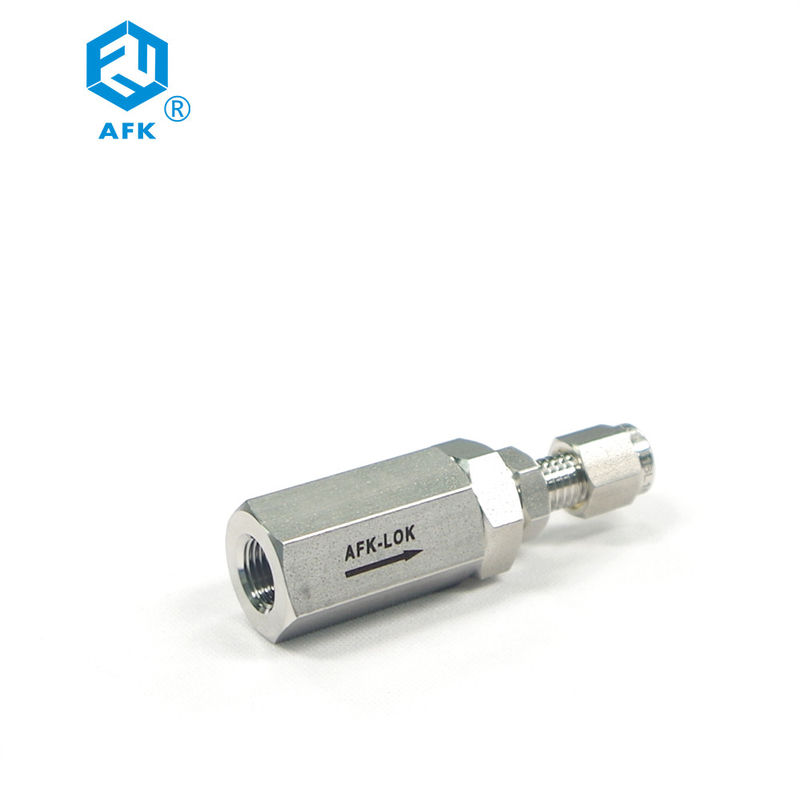

*Name: Check valve
*Size: 6mm 8mm 10mm 1/8" 1/4" 3/8" 1/2"
*Connection: Ferrule OD
*Pressure: 3000 Psi, 3000psi
*Material: Stainless steel 316
Specification
|
|||
Number | Part | SS316 VALVE | Brass valve |
1 | Valve body(Inlet) | SS316 | Brass |
2 | Packing | SS316 | Brass |
3 | O-Ring | VITON/BUNA | VITON/BUNA |
4 | Ball | SS316 | Brass |
5 | Spring | SS316 | Brass |
6 | Valve Body(Outlet) | SS316 | Brass |
Dimensions(inch)
|
|||||
Name | Size | A-PT/NPT/G | B-PT/NPT/G | C-(mm) | D(mm) |
CV-01 | 1/8" | 1/8" | 1/8" | 19 | 74 |
CV-02 | 1/4" | 1/4" | 1/4" | 19 | 74 |
CV-03 | 3/8" | 3/8" | 3/8" | 22 | 74 |
CV-04 | 1/2" | 1/2" | 1/2" | 27 | 75.5 |
CV-06 | 3/4" | 3/4" | 3/4" | 35 | 83.5 |
CV-8 | 1" | 1" | 1" | 41 | 87.5 |
Can be customized according to customer's' requirements |
