Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: BV
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Material: |
Stainless Steel |
Port Size: |
1/8" 1/4" 3/8" 1/2" |
Pressure: |
Low Pressure |
Standard Or Nonstandard: |
Standard |
Media: |
Gas |
Application: |
General |
Body Material: |
Stainless Steel |
Valve Type: |
2 Way |
Material: |
Stainless Steel |
Port Size: |
1/8" 1/4" 3/8" 1/2" |
Pressure: |
Low Pressure |
Standard Or Nonstandard: |
Standard |
Media: |
Gas |
Application: |
General |
Body Material: |
Stainless Steel |
Valve Type: |
2 Way |

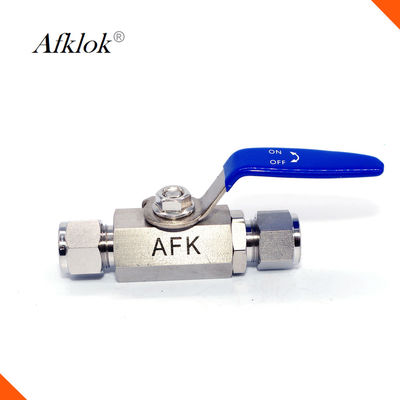

This multi-purpose manual lever ball valve has excellent corrosion resistance and is fit for many applications. The valve is fitted with PTFE seals for maximizing corrosion resistance and lifespan of the ball valve.
1000 WOG:Max 1000 psi for Water, Oil, Gas
Fluid Medium:For use with liquids and gases
Body & Ball Type:304 Stainless Steel
Temp Range:-60°F to 450°F
Handle:Heavy duty handle with blue vinly insulation
| Nominal pressure | Application stable range | Applicable Medium | thread type |
| 1.6Mpa | negative 20~180degree | water, oil, air and other non-corrosive liquid (W.O.G) | G, NPT, BSPT, BSP, DI259/2999 |
Material
| item | part | material |
| 1 | body | stainless steel |
| 2 | tailpiece | stainless steel |
| 3 | ball | stainless steel |
| 4 | seat | PTFE |
| 5 | stem | stainless steel |
| 6 | thrust washer | PTFE |
| 7 | gland nut | stainless steel |
| 8 | gland packing | PTFE |
