Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: N-1
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Material: |
Stainless Steel,316L,Stainless Steel304 316L |
Size: |
1/4" OD X 1/4 Male NPT |
Medium: |
Gas |
Warranty: |
1 Year |
Name: |

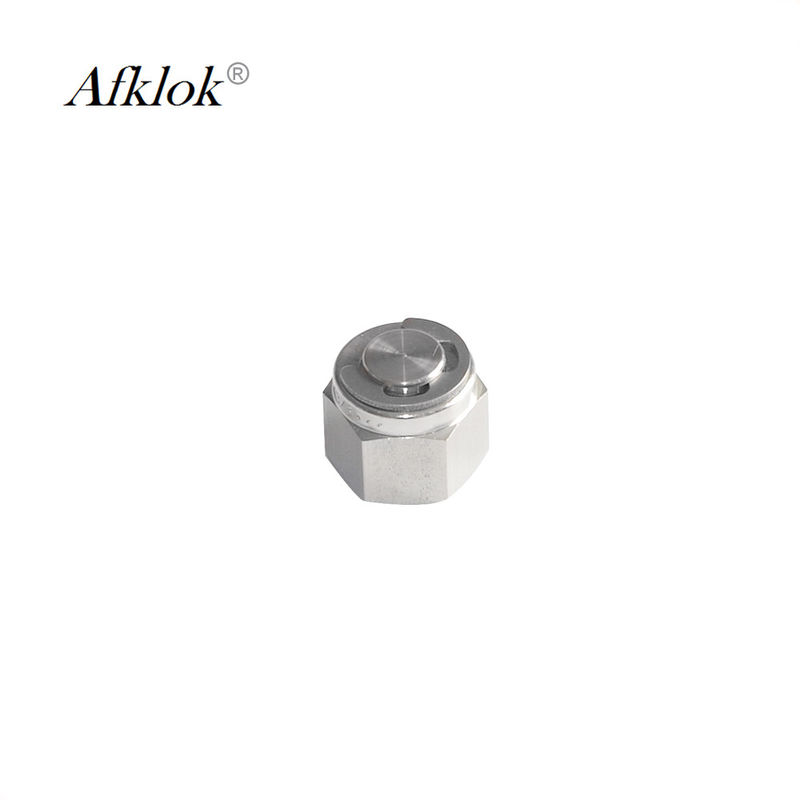

Ferrule Nut Fittings |
Approval: |
CE |
Material: |
Stainless Steel,316L,Stainless Steel304 316L |
Size: |
1/4" OD X 1/4 Male NPT |
Medium: |
Gas |
Warranty: |
1 Year |
Name: |
Ferrule Nut Fittings |
Approval: |
CE |
Installation instructions
AFK ferrule joint can be installed quickly, easily and reliably with hands-on tools.
Safety precautions
Do not drain the system by loosening the union nut or by plugging the union.
Do not install or tighten connectors when there is pressure in the system.
Make sure the ferrule is against the shoulder of the ferrule body before tightening the nut.
When installing for the first time, use the correct clearance gauge to ensure adequate tightening.
Always use the correct thread sealant on tapered pipe threads.
Do not mix the ferrule, ferrule, nut and joint body made of different materials or by different manufacturers.
Do not rotate the joint body. Instead, fix the joint body and rotate the nut.
Avoid unnecessary disassembly of unused joints.
Only use long reducing joint in AFK internal thread termination.
Ferrule nut (British system) | |||||
Basic order model |
T Casing outer diameter |
F | L | ||
inch | mm | inch | inch | mm | |
SS-N-T1 | 1/16 | 1.58 | 5/16 | .31 | 7.87 |
SS-N-T2 | 1/8 | 3.17 | 7/16 | .47 | 11.93 |
SS-N-T3 | 3/16 | 4.76 | 1/2 | .47 | 11.93 |
SS-N-T4 | 1/4 | 6.35 | 9/16 | .50 | 12.70 |
SS-N-T5 | 5/16 | 7.93 | 5/8 | .53 | 13.46 |
SS-N-T6 | 3/8 | 9.52 | 11/16 | .56 | 14.22 |
SS-N-T8 | 1/2 | 12.70 | 7/8 | .69 | 17.52 |
SS-N-T10 | 5/8 | 15.87 | 1 | .69 | 17.52 |
SS-N-T12 | 3/4 | 19.05 | 1 1/8 | .69 | 17.52 |
SS-N-T14 | 7/8 | 22.22 | 1 1/4 | .69 | 17.52 |
SS-N-T16 | 1 | 25.40 | 1 1/2 | .81 | 20.57 |
SS-N-T20 | 1 1/4 | 31.75 | 1 7/8 | 1.25 | 31.75 |
SS-N-T24 | 1 1/2 | 38.10 | 2 1/4 | 1.50 | 38.10 |
SS-N-T32 | 2 | 50.80 | 3 | 2.06 | 52.32 |
Ferrule nut (British system) | |||
Basic order model |
T Casing outer diameter |
F | L |
mm | mm | mm | |
SS-N-T2M | 2 | 12 | 11.9 |
SS-N-T3M | 3 | 12 | 11.9 |
SS-N-T4M | 4 | 12 | 11.9 |
SS-N-T6M | 6 | 14 | 12.7 |
SS-N-T8M | 8 | 16 | 13.5 |
SS-N-T10M | 10 | 19 | 15.1 |
SS-N-T12M | 12 | 22 | 17.4 |
SS-N-T14M | 14 | 25 | 17.4 |
SS-N-T15M | 15 | 25 | 17.4 |
SS-N-T16M | 16 | 25 | 17.4 |
SS-N-T18M | 18 | 30 | 17.4 |
SS-N-T20M | 20 | 32 | 17.4 |
SS-N-T22M | 22 | 32 | 17.4 |
SS-N-T25M | 25 | 38 | 20.6 |
SS-N-T38M | 38 | 60 | 40.6 |
SS-N-T50M | 50 | 3 inch | 54.0 |
