Oil Gas SS316 Ferrule Pipe Joint 3000Psi Stainless Steel Pipe Joint

  • Oil Gas SS316 Ferrule Pipe Joint 3000Psi Stainless Steel Pipe Joint
  • Oil Gas SS316 Ferrule Pipe Joint 3000Psi Stainless Steel Pipe Joint
Place of Origin China
Brand Name AFK
Certification CE
Model Number FF+BF
Minimum Order Quantity 1~10
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L Medium Oil,Gas
Name Stainless Steel Tube Fittings Warranty 1 Year
Type 3000Psi Product Ferrule Pipe Joint
High Light

SS316 Ferrule Pipe Joint

,

Oil Gas Ferrule Pipe Joint

,

3000Psi Stainless Steel Pipe Joint
Leave a Message
Product Description

Installation instructions
AFK ferrule joint can be installed quickly, easily and reliably with hands-on tools.
Safety precautions
Do not drain the system by loosening the union nut or by plugging the union.
Do not install or tighten connectors when there is pressure in the system.
Make sure the ferrule is against the shoulder of the ferrule body before tightening the nut.
When installing for the first time, use the correct clearance gauge to ensure adequate tightening.
Always use the correct thread sealant on tapered pipe threads.
Do not mix the ferrule, ferrule, nut and joint body made of different materials or by different manufacturers.
Do not rotate the joint body. Instead, fix the joint body and rotate the nut.
Avoid unnecessary disassembly of unused joints.
Only use long reducing joint in AFK internal thread termination.

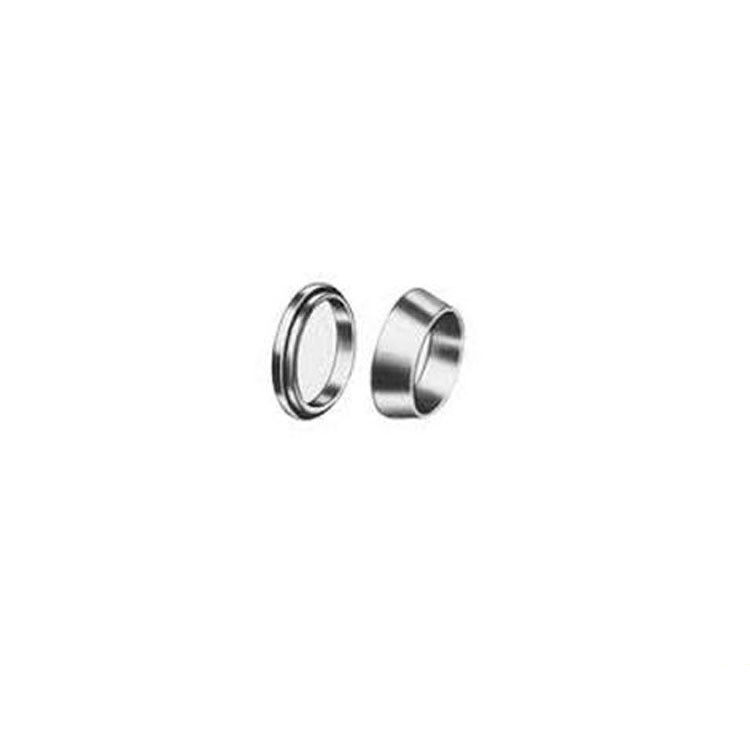

Oil Gas SS316 Ferrule Pipe Joint 3000Psi Stainless Steel Pipe Joint 0



Front ferrule(British system)
Basic order model

T

Casing outer diameter


inch mm
SS-FF-T1 1/16 1.58
SS-FF-T2 1/8 3.17
SS-FF-T3 3/16 4.76
SS-FF-T4 1/4 6.35
SS-FF-T5 5/16 7.93
SS-FF-T6 3/8 9.52
SS-FF-T8 1/2 12.70
SS-FF-T10 5/8 15.87
SS-FF-T12 3/4 19.05
SS-FF-T14 7/8 22.22
SS-FF-T16 1 25.40
SS-FF-T20 1 1/4 31.75
SS-FF-T24 1 1/2 38.10
SS-FF-T32 2 50.80







Front ferrule(British system)
Basic order model

T

Casing outer diameter
mm
SS-FF-T2M 2
SS-FF-T3M 3
SS-FF-T4M 4
SS-FF-T6M 6
SS-FF-T8M 8
SS-FF-T10M 10
SS-FF-T12M 12
SS-FF-T14M 14
SS-FF-T15M 15
SS-FF-T16M 16
SS-FF-T18M 18
SS-FF-T20M 20
SS-FF-T22M 22
SS-FF-T25M 25
SS-FF-T38M 38
SS-FF-T50M 50
