SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi

SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi
SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi
SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi

Large Image :  SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: UE
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: 17USD
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC

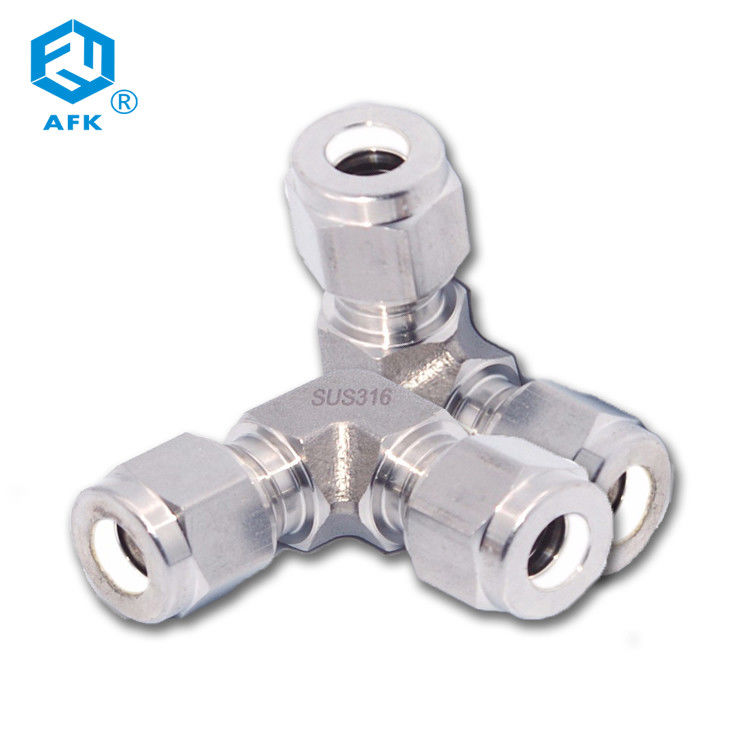

SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi

Description
Material: Stainless Steel,316L,Stainless Steel 304 Or 316,Stainless Steel304 316L Technics: Forged
Warranty: 1 Year Medium: Water,Gas
Thread: NPT Color: Braided Stainless Steel
Inch: 1/8 , 1/4 , 3/4 , 1/2 , 8mm
High Light:

Double Ferrule Threaded Pipe Fitting

,

SS316 Threaded Pipe Fitting

,

3000Psi Stainless Steel Elbow

Composition of ferrule type pipe joint

AFK ferrule type pipe joint is composed of front ferrule, rear ferrule, ferrule nut and joint body. Advanced design and strict quality control ensure that the pipe joint is completely sealed under the correct installation.

SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi 0

Advantages of AFK ferrule joint

AFK is constantly improving the leak proof design of its ferrule joints to enable them to be used in thousands of applications, including research, analysis and process detection instruments, bioengineering, oil and gas, electric power, petrochemical, and semiconductor industries. AFK focuses on the following key issues:

  • Leakage
  • vibration
  • thermal shock
  • industry standard
  • installation
  • corrosion



Connects Fractional (Inch) Tube

Part No.

Tube OD

T

Dimensions(mm)
E
Min.
h H F I L
inch mm inch mm inch mm
EU-01 1/16 1.68 1.3 3/8 9.52 5/16 7.92 8.6 14.0 17.8
EU-02 1/8 3.17 2.3 3/8 9.52 7/16 1.11 12.7 15.7 22.4
EU-03 3/16 4.76 3.0 1/2 12.70 1/2 12.70 13.7 17.8 24.4
EU-04 1/4 6.35 4.8 1/2 12.70 9/16 14.28 15.2 19.6 26.9
EU-05 5/16 7.93 6.4 9/16 14.28 5/8 15.87 16.3 21.3 28.7
EU-06 3/8 9.52 7.1 5/8 15.87 11/16 17.46 16.8 23.1 30.5
EU-08 1/2 12.70 10.4 13/16 20.63 7/8 22.22 22.9 25.9 36.1
EU-10 5/8 15.87 12.7 15/16 23.81 1 25.40 24.4 28.7 38.8
EU-12 3/4 19.05 15.7 1-1/16 26.98 1-1/8 28.57 24.4 29.7 39.9
EU-14 7/8 22.22 18.3 1-3/16 30.16 1-1/4 31.75 25.9 34.5 44.7
EU-16 1 25.40 22.4 1-3/8 34.92 1-1/2 38.10 31.2 36.8 49.0
EU-20 1-1/4 31.75 27.7 1-11/16 42.86 1-7/8 47.63 41.1 44.5 66.5
EU-24 1-1/2 38.10 34.0 2 50.80 2-1/4 57.15 50.0 50.8 78.0
EU-32 2 50.80 46.0 2-3/4 69.85 3 76.20 67.6 69.8 107.2



Connects Metric Tube

Part No.

Tube OD

T

Dimensions(mm)
E
Min.
h H F I L
mm inch mm
EU-M03 3 2.4 9.52 11.11 12.9 15.7 22.3
EU-M04 4 2.4 12.70 12.70 13.7 18.8 25.4
EU-M06 6 4.8 12.70 14.28 15.3 19.6 27.0
EU-M08 8 6.4 14.28 15.87 16.2 21.3 28.8
EU-M10 10 7.9 17.46 19.05 17.2 23.9 31.5
EU-M12 12 9.5 20.63 22.22 22.8 25.9 36.0
EU-M14 14 11.1 23.81 25.40 24.4 28.7 38.8
EU-M15 15 11.9 23.81 25.40 24.4 28.7 38.8
EU-M16 16 12.7 23.81 25.40 24.4 28.7 38.8
EU-M18 18 15.1 26.98 30.16 24.4 29.7 39.8
EU-M20 20 15.9 34.92 31.75 26.0 34.5 44.6
EU-M22 22 18.3 34.92 31.75 26.0 34.5 44.6
EU-M25 25 21.8 34.92 38.10 31.3 36.8 49.1
EU-M28 28 21.8 42.86 47.63 36.3 43.2 64.0
EU-M30 30 26.2 47.63 50.80 39.6 48.3 69.9
EU-M32 32 28.6 47.63 50.80 42.0 49.3 72.3
EU-M38 38 33.7 55.56 57.15 49.4 56.4 84.0



This size is for reference only , subject to possinle changes in the actual product (without notice).E refers to the smallest opening .F and L are standard hand-tightened dimensions.
