Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT

Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT
Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT

Large Image :  Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: RB
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC

Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT

Description
Material: Stainless Steel,Stainless Steel 304 Or 316,Stainless Steel304 316L Technics: Forged
Type: All Pipe Fittings Application: Oil,Water
Standard: Stainless Steel Air Line Fittings Thread: NPT
Medium: Oil,Water,Gas Usage: Pipe Fittings
Warranty: 1 Year
High Light:

Variable Diameter Stainless Steel Thread

,

3000Psi Stainless Steel Thread

,

NPT Conversion Pipe Fitting

Product Overview

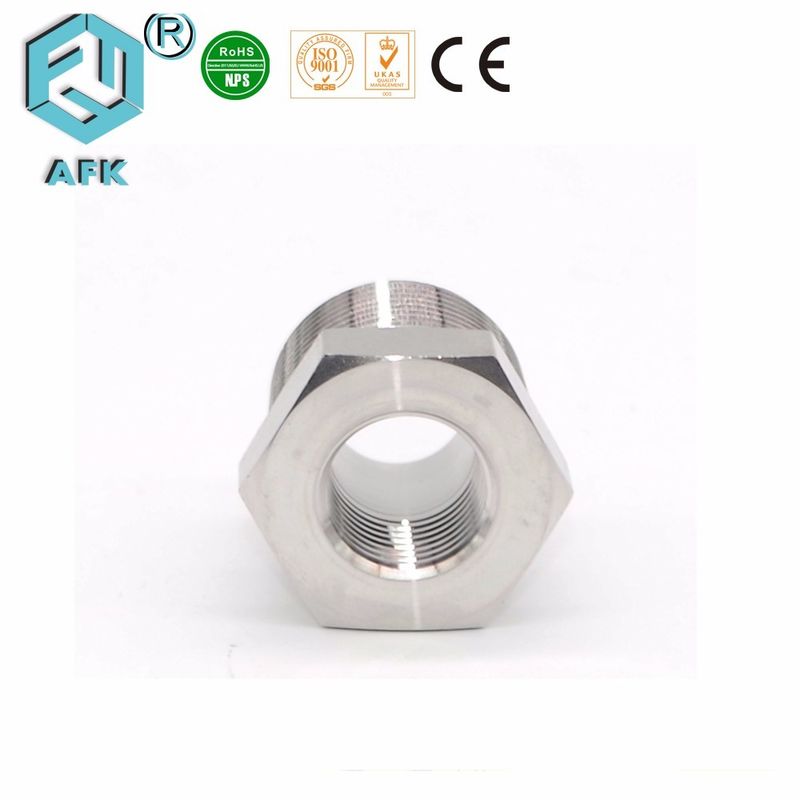

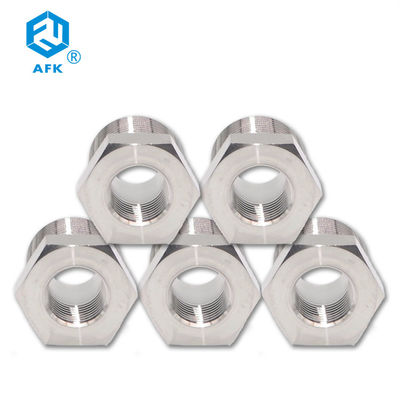

Product Name Reducing Bushing
Material Stainless Steel 316
Connection Male NPT
Brade AFK
Pressure 3000 Psi
Used Chenmical And Petrochemical



Reducing Buhing



Part No.

P1

NPT

P1

N PT

Dimensions(mm)
L E F
inch mm
RB-04N02N 1/4 1/8 26.9 7.1 9/16 14.28
RB-06N04N 3/8 1/4 30.2 9.6 3/4 19.05
RB-08N04N 1/2 1/4 27.4 11.4 7/8 22.22
RB-08N06N 1/2 3/8 35.8 11.9 7/8 22.22
RB-12N04N 3/4 1/4 27.4 11.4 1-1/16 26.98
RB-12N06N 3/4 3/8 27.4 15.0 1-1/16 26.98
RB-12N08N 3/4 1/2 41.4 15.7 1-1/16 26.98
RB-16N08N 1 1/2 34.8 18.5 1-3/8 34.92
RB-16N12N 1 3/4 47.0 22.4 1-3/8 34.92



Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT 0

Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT 1

Variable Diameter 3000Psi Stainless Steel Thread 1/4 Inch NPT 2
